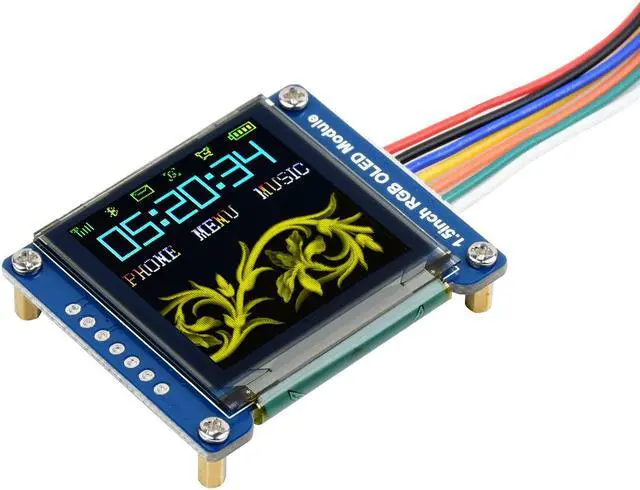

waveshare 1.5inch RGB OLED Display Module 128x128 Pixels 16-bit High Color (65K Colors) with Embedded Controller Communicating via SPI Interface.
- This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
- 128x128 high resolution, 65K colors, clearly displays colorful images
- Display color: RGB, 65K colors
- Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

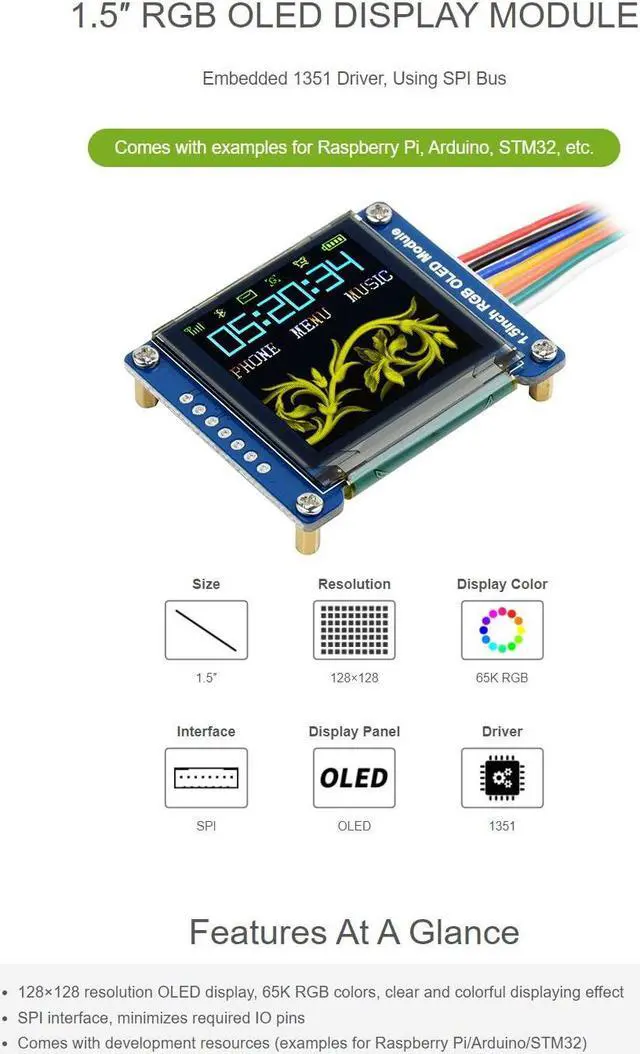

This is a general RGB OLED display Module, 1.5 inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features
128x128 high resolution, 65K colors, clearly displays colorful images
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Driver: 1351
Interface: 4-wire SPI, 3-wire SPI
Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160deg
Operating voltage: 3.3V / 5V

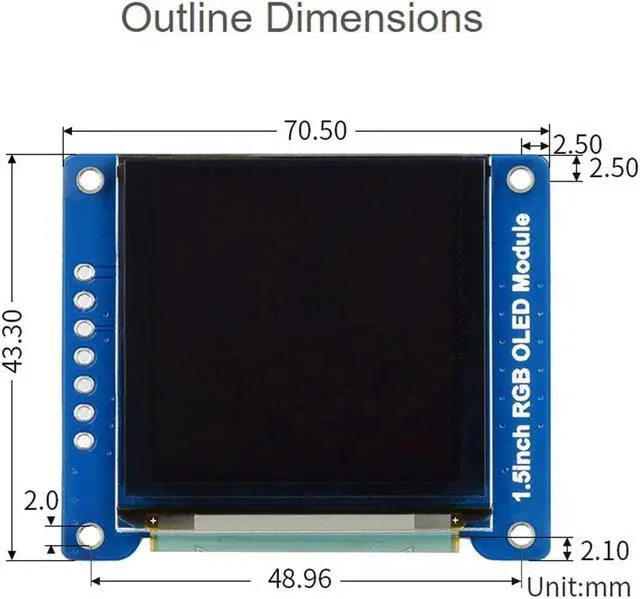

Dimension: 44.5 x 37 (mm)
Development Resources
Wiki: www. waveshare. com/wiki/ 1.5 inch_RGB_OLED_Module
This is a general RGB OLED display Module, 1.5 inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features
128x128 high resolution, 65K colors, clearly displays colorful images
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

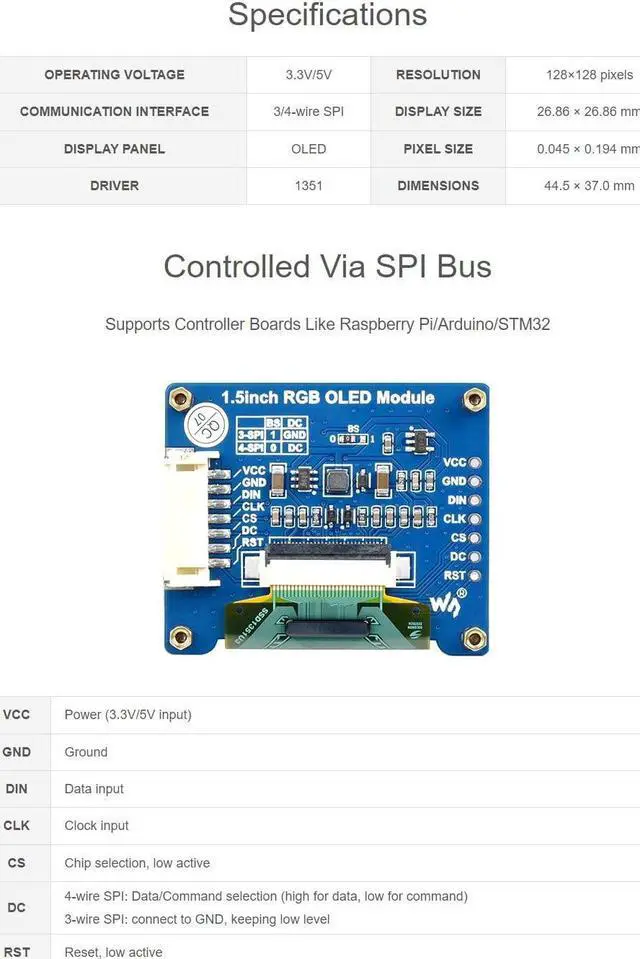

Specifications
Driver: 1351
Interface: 4-wire SPI, 3-wire SPI
Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160deg
Operating voltage: 3.3V / 5V
Dimension: 44.5 x 37 (mm)
Development Resources
Wiki: www. waveshare. com/wiki/ 1.5 inch_RGB_OLED_Module
