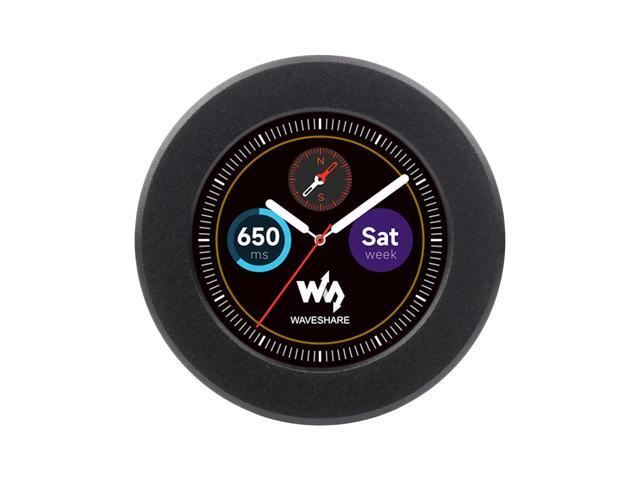

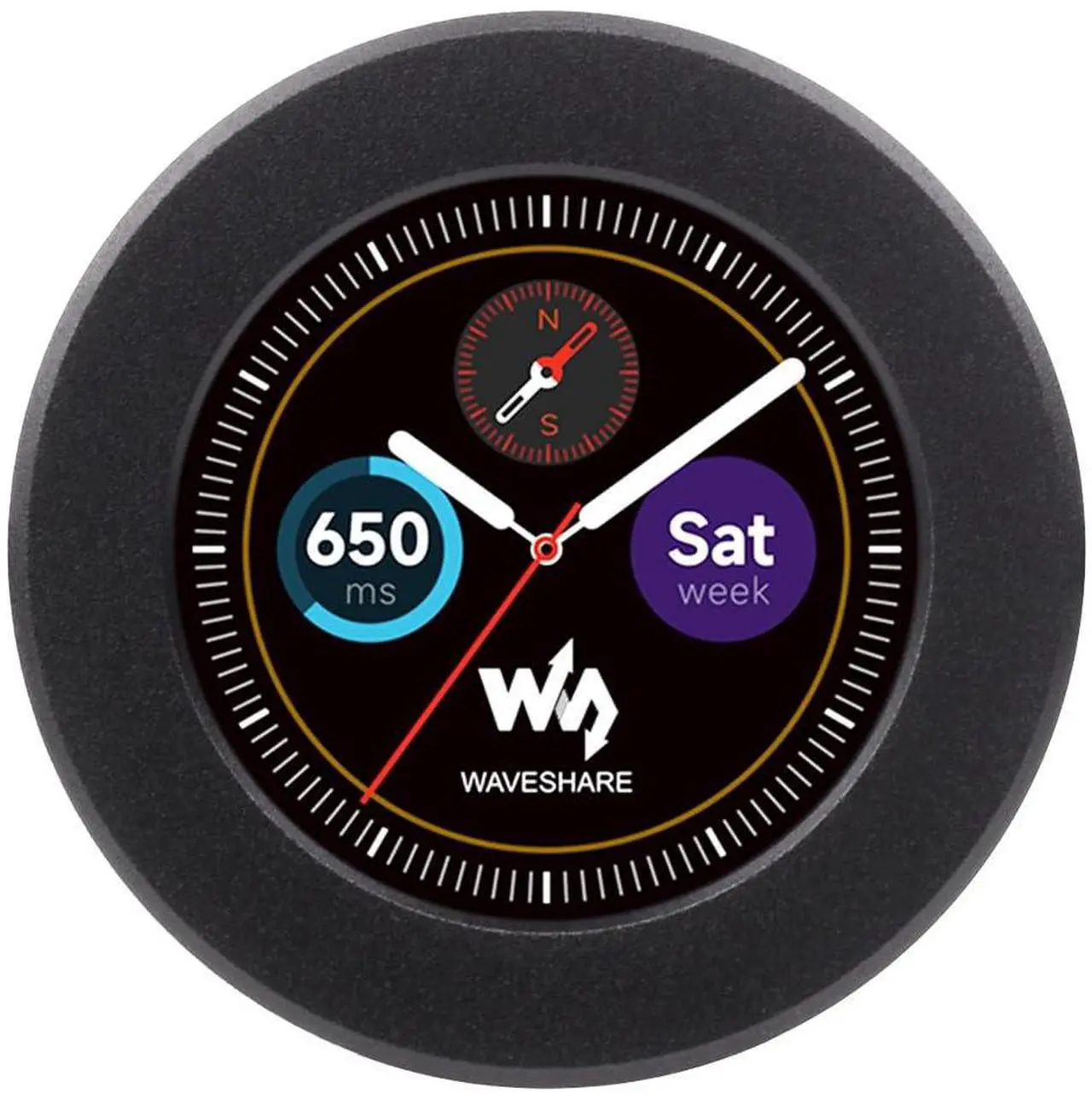

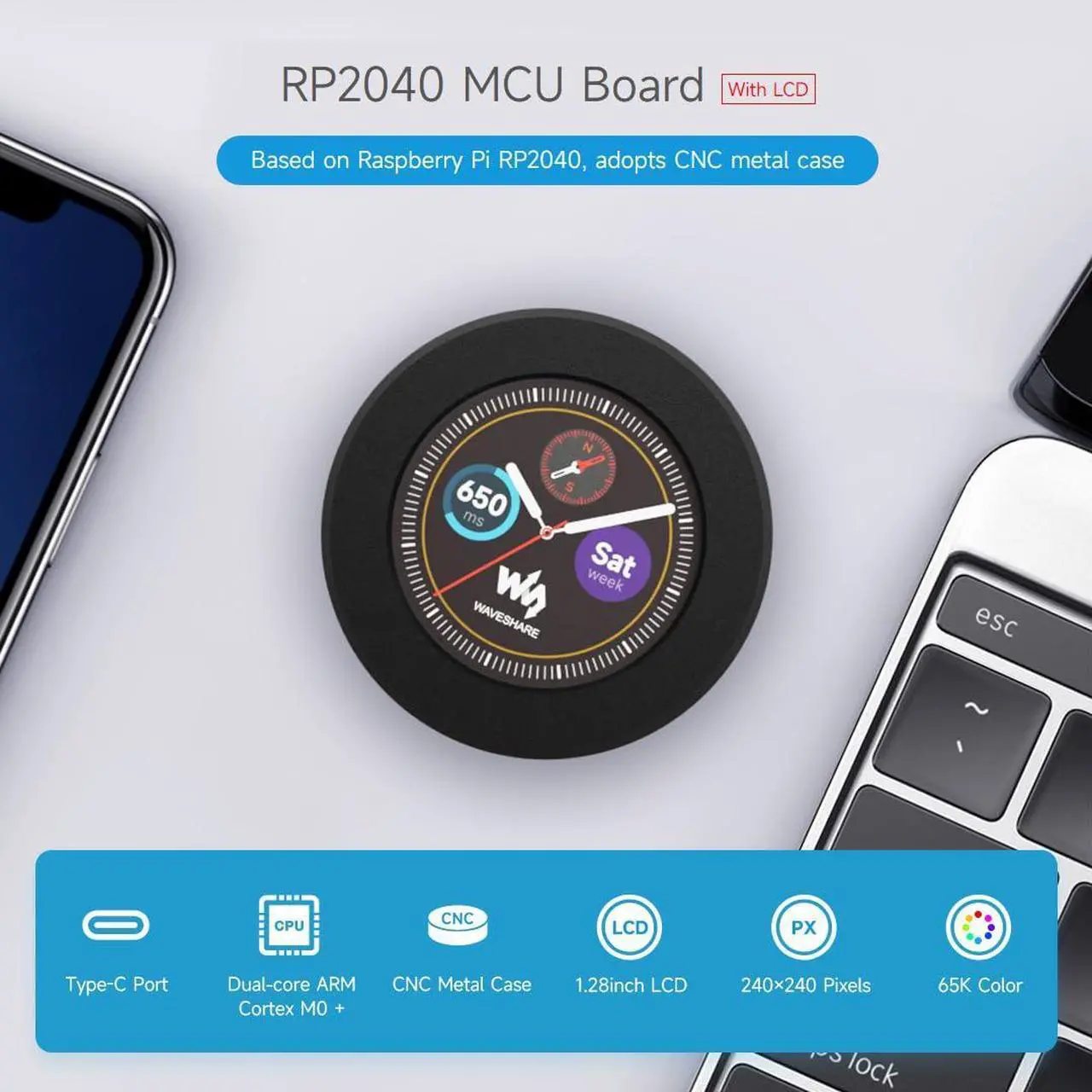

Waveshare RP2040 MCU Board, with 1.28inch Round LCD, Accelerometer and Gyroscope Sensor, with CNC Metal Case

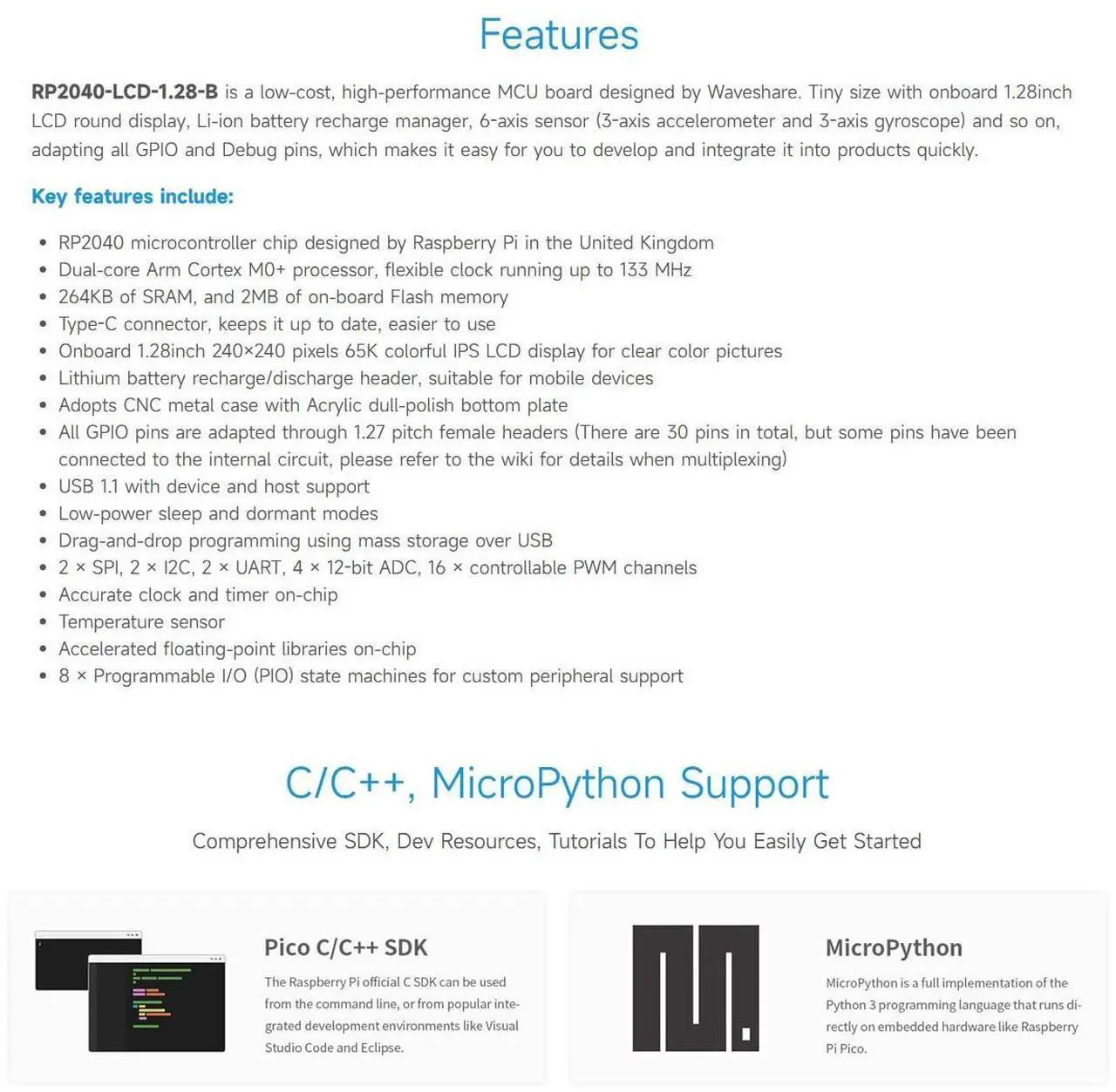

- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory; Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240x240 pixels 65K colorful IPS LCD display for clear color pictures; Lithium battery recharge/discharge header, suitable for mobile devices
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)

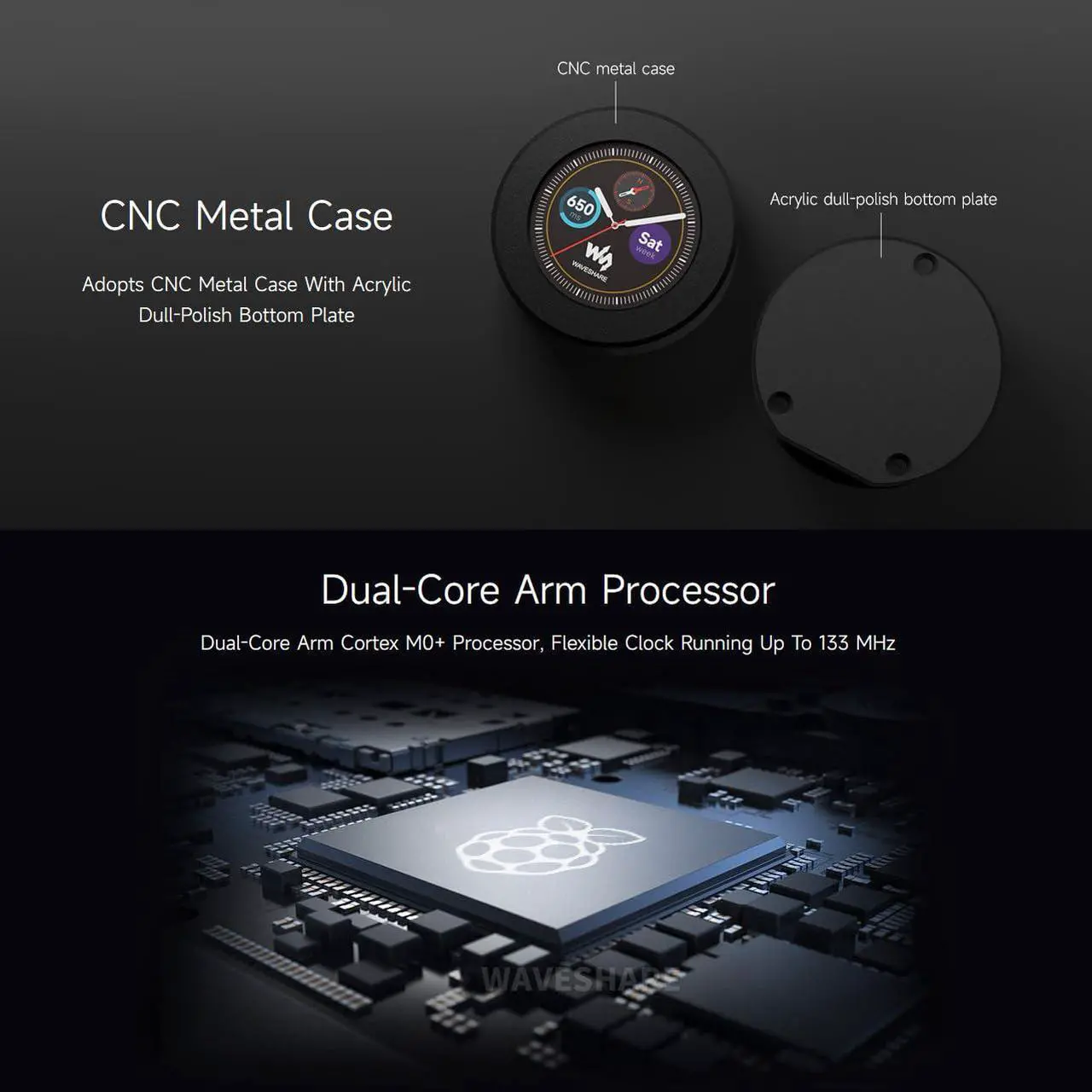

- Adopts CNC metal case with Acrylic dull-polish bottom plate; USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB
- 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chi
+
+
Overview
Specs
Reviews
Waveshare RP2040 MCU Board, with 1.28 inch Round LCD, Accelerometer and Gyroscope Sensor, with CNC Metal Case
