Waveshare 7 inch Capacitive Touch Screen IPS Display HDMI LCD Module 1024x600 Touchscreen for Raspberry Pi 4/3/2/1 Model B/B+/A+/BeagleBone Black/Banana Pi, Windows 10/8.1/8/7

7 inch LCD Display Latest Version Rev 4.1 Features

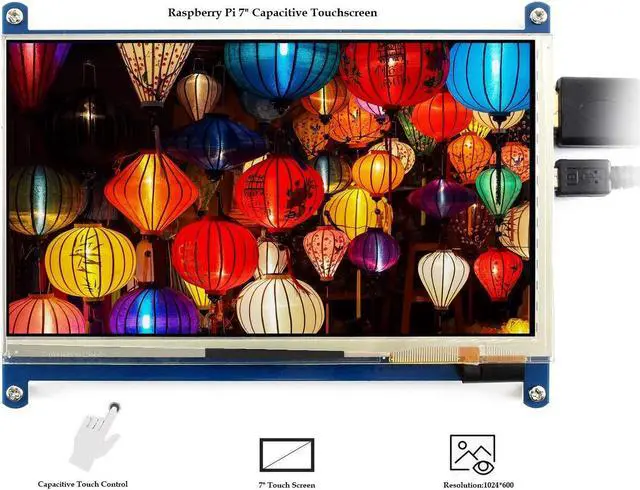

7inch IPS Capacitive Touch Screen, 1024x600 hardware resolution, wide viewing angle, clear displaying, stronger anti-interference ability.
Capacitive touch control, using better Touch-Panel Controller IC, with better touch effects.
Standard HID protocol, easy to be integrated into your system
Supports mini PCs such as Raspberry Pi, BB Black and general desktop computers

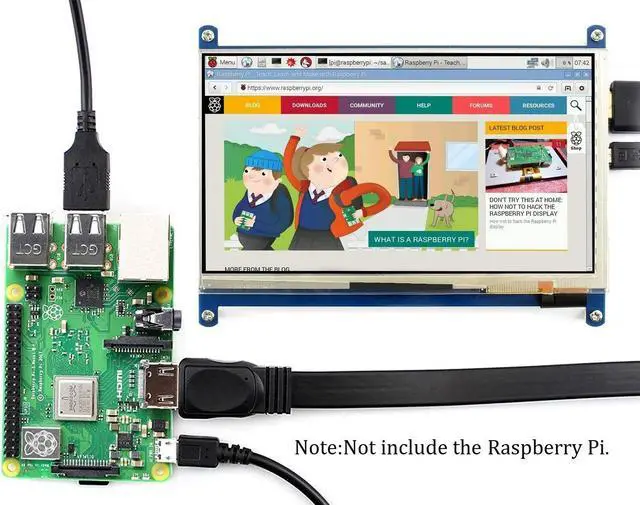

When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free. When work as a computer monitor, supports Windows
10/ 8.1 /8/7, five-points touch, driver free
Backlight can be turned off to lower power consumption

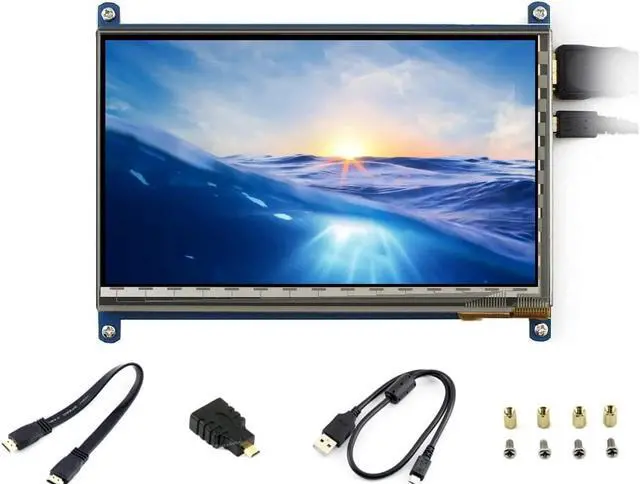

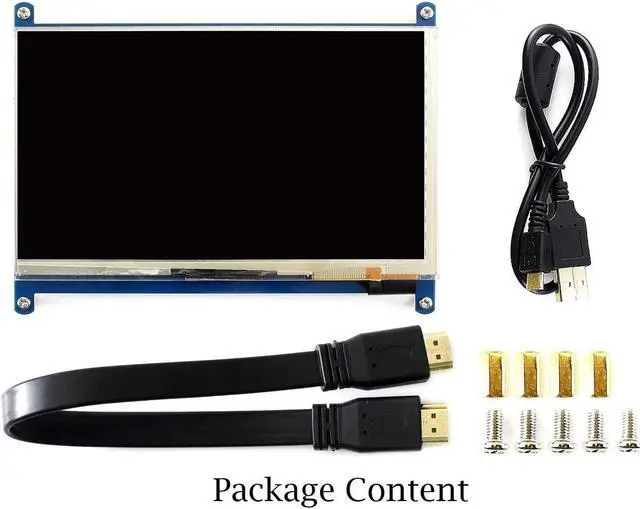

Package Content
7inch HDMI LCD (C) x 1
HDMI cable x 1
HDMI to Micro HDMI Adapter x 1
USB type A plug to micro B plug cable x 1
RPi screws pack (4pcs) x 1

Development Resources
Wiki: www. waveshare. com/wiki/7inch_HDMI_LCD_ (C)?
Note
1. To use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

2. If there are some red lines on the edge of the screen, Please adjust the config. txt file by addding [the hdmi_drive=1] into the end of code. After that please
power off the srceen and put it aside for a few hours to avoid the flickers.

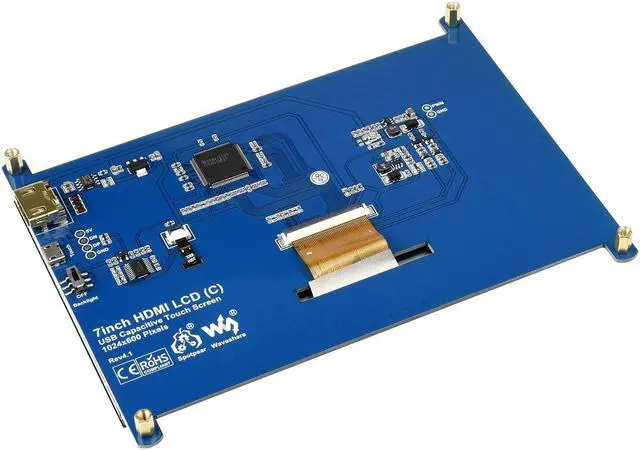

3. If there are some ghost pictures, Please adjust the adjustable resistor on the back which we point out in the picture. And after the screen can
display the desktop, rotate the resistor until it can get the best display of desktop. Then please leave the screen for a while, waiting for
the ghost to disappear (may take several hours).

4. Technical Support and development resource is provided. Please contact with us first if you have any problem.
