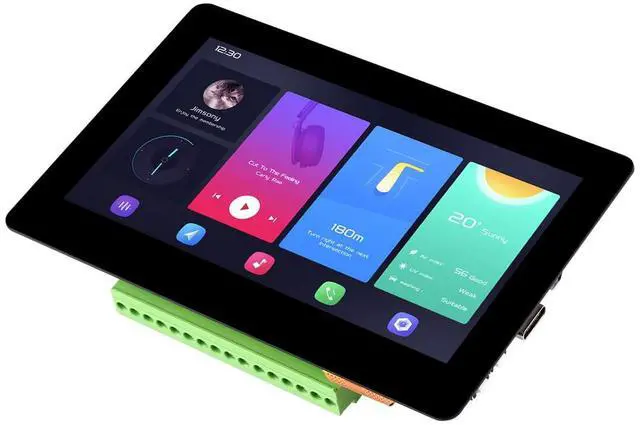

Waveshare ESP32-S3 4.3inch Touch Screen Microcontroller Development Board, Onboard 800480 65K RGB Screen, 5-Point Touch Display, Wi-Fi & Bluetooth 5, 32-Bit LX7 Dual-Core Processor

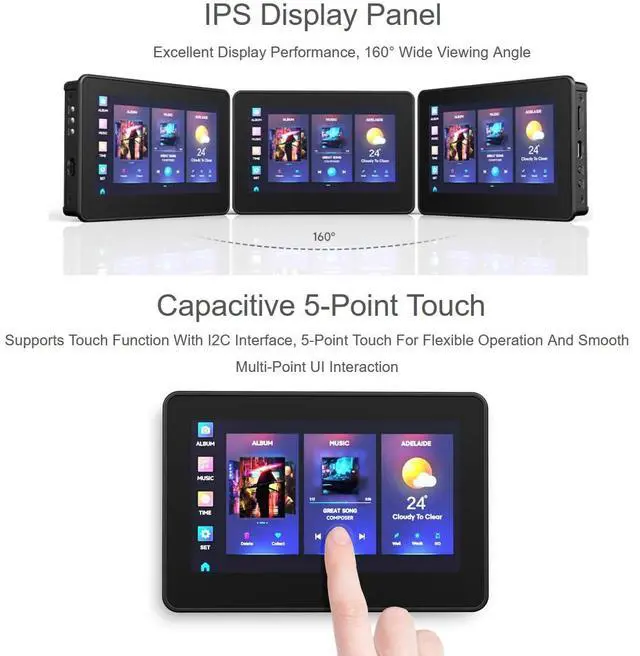

- ESP32-S3 4.3inch Touch Screen Development Board onboard 4.3inch capacitive touch screen, 800x480 resolution, 65K color IPS display, supports capacitive touch control via I2C interface, 5-point touch with interrupt support, can smoothly run GUI programs such as LVGL
- ESP32-S3-Touch-LCD-4.3 type B board equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna, built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

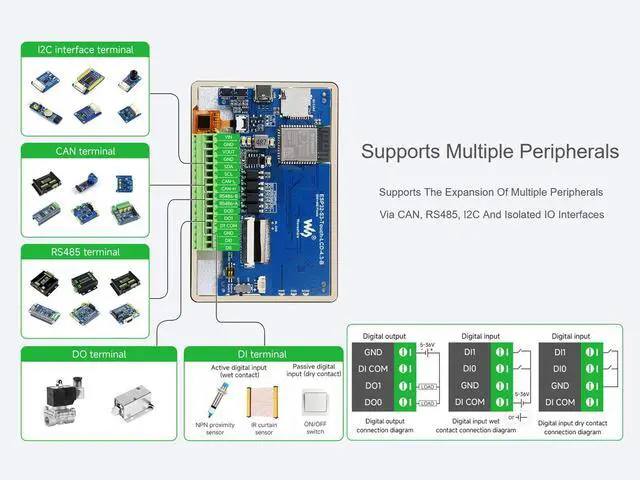

- Supports the expansion of multiple peripherals via CAN, RS485, I2C and isolated IO interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
- Supports two wiring methods, comes with two types of screw terminals, allowing for bottom or back wiring, which is more convenient to integrate into various application scenarios such as DIN rail or embedded devices
- Supports flexible clock, module power supply indepe
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

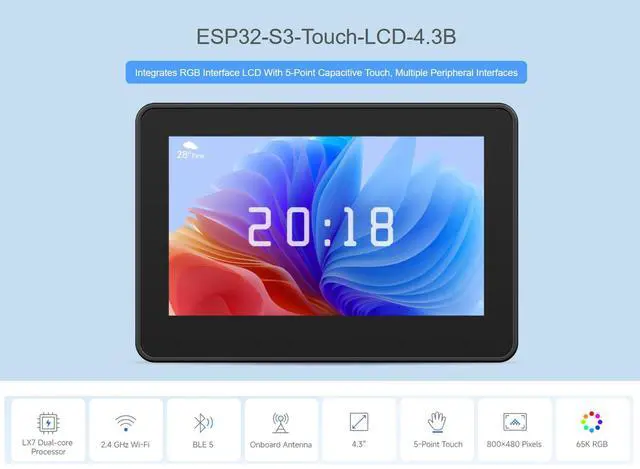

ESP32-S3-Touch-LCD- 4.3B is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

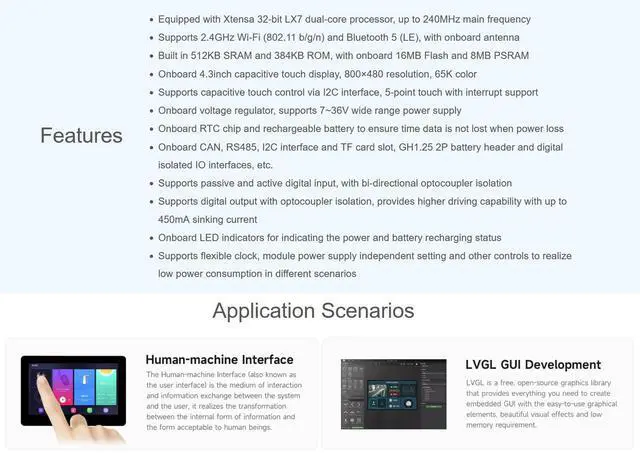

Features
--Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency
--Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
--Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
--Onboard 4.3 inch capacitive touch display, 800x480 resolution, 65K color
--Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
--Onboard voltage regulator, supports 7~36V wide range power supply
--Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
--Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.
--Supports passive and active digital input, with bi-directional optocoupler isolation
--Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
--Onboard LED indicators for indicating the power and battery recharging status
--Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Package Content
ESP32-S3-Touch-LCD- 4.3B (with back wiring 16PIN screw terminal) x1
16PIN screw terminal for bottom wiring x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
ESP32-S3-Touch-LCD- 4.3B is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Features
--Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency
--Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
--Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
--Onboard 4.3 inch capacitive touch display, 800x480 resolution, 65K color
--Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
--Onboard voltage regulator, supports 7~36V wide range power supply
--Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
--Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.
--Supports passive and active digital input, with bi-directional optocoupler isolation
--Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
--Onboard LED indicators for indicating the power and battery recharging status
--Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Package Content
ESP32-S3-Touch-LCD- 4.3B (with back wiring 16PIN screw terminal) x1
16PIN screw terminal for bottom wiring x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
