Waveshare ESP32-S3 7inch Capacitive Touch Screen Development Board 800x480 Resolution 7 inch 65K RGB LCD Disply,5-Point Touch,Supports WiFi & Bluetooth

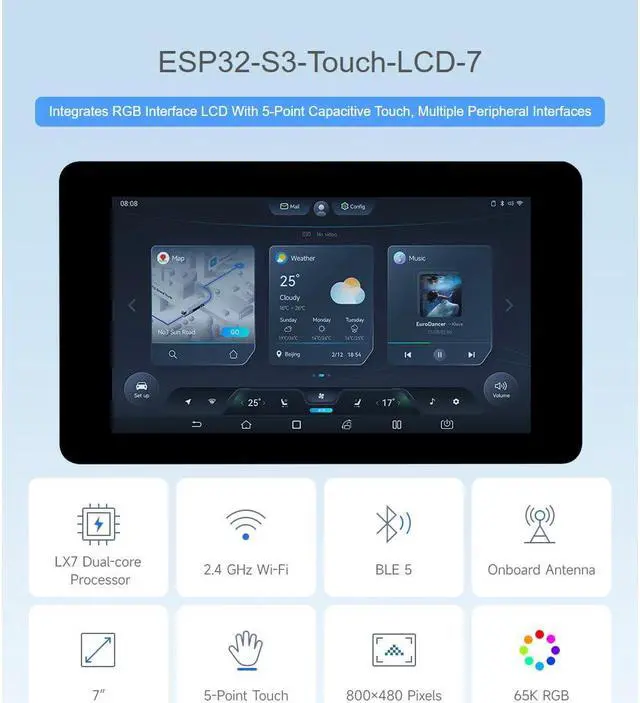

- Onboard 7-inch capacitive touch screen, 800x480 resolution, 65K colors.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna..Support capacitive touch control via I2C interface, 5-point touch with interrupt support.
- Built-in 512KB SRAM and 384KB ROM, with onboard 8MB Flash and 8MB PSRAM..Onboard CAN, RS485, I2C interface, Micro SD card slot and so on, integrates full-speed USB serial port.
- Support flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
ESP32-S3 7inch Capacitive Touch Display Development Board, ESP32 With Display, 800x480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz
Frequency, Supports WiFi & Bluetooth, With Onboard Antenna
Introduction
The ESP32-S3-Touch-LCD-7 is a low-cost, high-performance microcontroller development board designed by Waveshare. It features 2.4GH z WiFi and BLE 5,
integrates large Flash storage and PSRAM, and a 7-inch capacitive touch LCD screen. Support running GUI interface demos such as LVGL. It also has

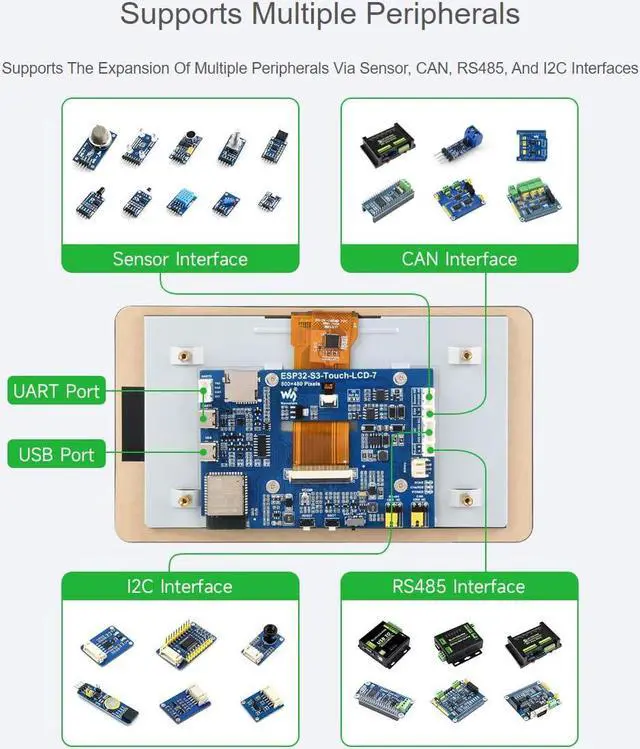

multiple external peripheral interfaces (such as CAN, I2C, RS485, and Sensor) for developing applications such HMI on ESP32-S3. With various
functions and interfaces, it is suitable for power requirements in IoT, mobile devices, wearable electronics, and smart home applications.

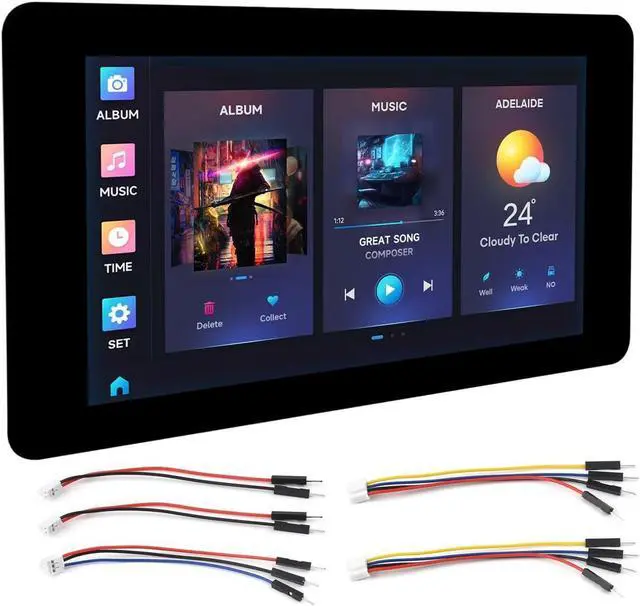

Package Content
ESP32-S3-Touch-LCD-7 x1
HY 2.0 2P to 2PIN male cable 10cm x2
HY 2.0 2P to 3PIN male cable 10cm x1
HY 2.0 2P to 4PIN male cable 10cm x2
FAQ
1. ESP32-S3-Touch-LCD-7 CAN reception failure?
1 Restart the COM port in UCANV 2.0. exe and press the ESP32-S3-Touch-LCD-7 reset button multiple times.
2 Uncheck DTR and RTS in the serial port debugging assistant.
2. ESP32-S3-Touch-LCD-7 shows no response after uploading an Arduino demo for RGB screen displaying?
If there's no screen response after programming the code, check whether the correct configurations are set in Arduino IDE ->
Tools: Choose the corresponding
Flash (8MB) and enable PSRAM (8MB OPI).
3. ESP32-S3-Touch-LCD-7 fails to compile an Arduino demo for the RGB screen and shows errors?
Check if the ESP32-S3-Touch-LCD-7_libraries is installed. Please refer to installation steps.
ESP32-S3 7inch Capacitive Touch Display Development Board, ESP32 With Display, 800x480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz
Frequency, Supports WiFi & Bluetooth, With Onboard Antenna
Introduction
The ESP32-S3-Touch-LCD-7 is a low-cost, high-performance microcontroller development board designed by Waveshare. It features 2.4GH z WiFi and BLE 5,
integrates large Flash storage and PSRAM, and a 7-inch capacitive touch LCD screen. Support running GUI interface demos such as LVGL. It also has
multiple external peripheral interfaces (such as CAN, I2C, RS485, and Sensor) for developing applications such HMI on ESP32-S3. With various
functions and interfaces, it is suitable for power requirements in IoT, mobile devices, wearable electronics, and smart home applications.
Package Content
ESP32-S3-Touch-LCD-7 x1
HY 2.0 2P to 2PIN male cable 10cm x2
HY 2.0 2P to 3PIN male cable 10cm x1
HY 2.0 2P to 4PIN male cable 10cm x2
FAQ
1. ESP32-S3-Touch-LCD-7 CAN reception failure?
1 Restart the COM port in UCANV 2.0. exe and press the ESP32-S3-Touch-LCD-7 reset button multiple times.
2 Uncheck DTR and RTS in the serial port debugging assistant.
2. ESP32-S3-Touch-LCD-7 shows no response after uploading an Arduino demo for RGB screen displaying?
If there's no screen response after programming the code, check whether the correct configurations are set in Arduino IDE ->
Tools: Choose the corresponding
Flash (8MB) and enable PSRAM (8MB OPI).
3. ESP32-S3-Touch-LCD-7 fails to compile an Arduino demo for the RGB screen and shows errors?
Check if the ESP32-S3-Touch-LCD-7_libraries is installed. Please refer to installation steps.
