waveshare 64x32 2048 RGB Full Color LED Matrix Panel 4mm Pitch P4 Displaying Text/Colorful Image/Animation Adjustable Brightness Chainable Design,Compatible with Arduino/Raspberry Pi

Overview

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

Features

2048 individual RGB LEDs, full-color display, adjustable brightness
64x32 pixels, 4mm pitch, allows displaying text, colorful image, or animation
256x128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

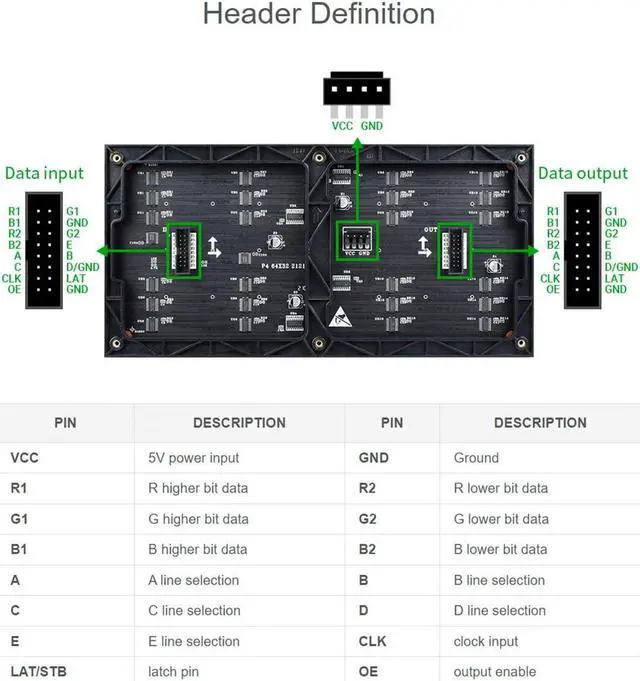

Onboard two HUB75 header, one for controller data input, one for output, chain support
Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications

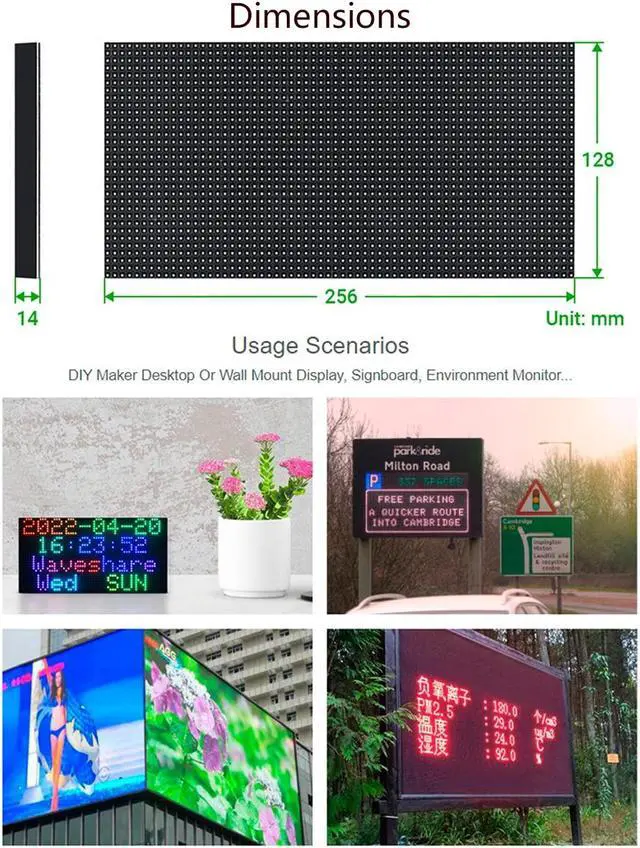

Dimensions: 256mm x 128mm
Pixels: 64x32=2048 DOTS
Pitch: 4mm
Pixel form: 1R1G1B
Viewing angle: >=160deg
Control type: synchronization
Driving: 1/16 scan
Header: HUB75
Power supply: 5V / 4A (VH4 header input)
Power: <=20W

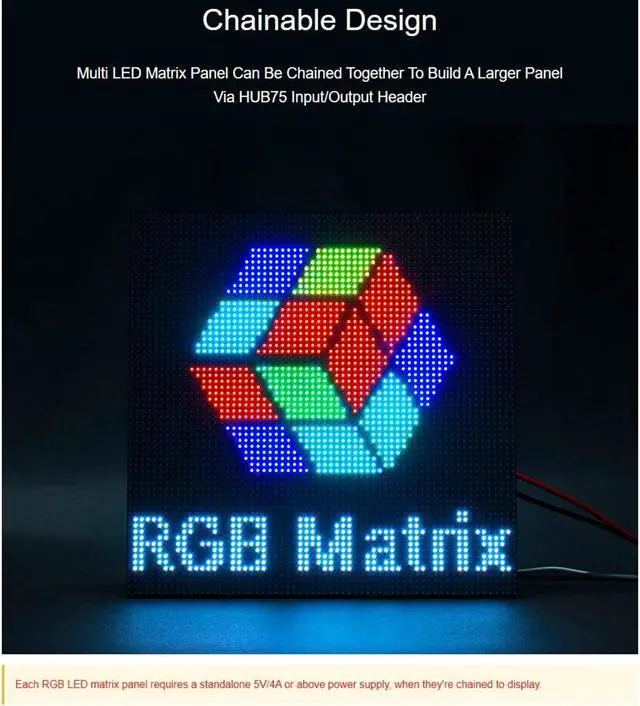

Chainable Design:

multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header

Usage scenarios:

DIY maker desktop or wall mount display, signboard, environment monitor, etc.

Package Content

RGB-Matrix-P4-64x32 LED matrix and accessories x1
Power supply terminal adapter x1
16P wire ~30cm x1
