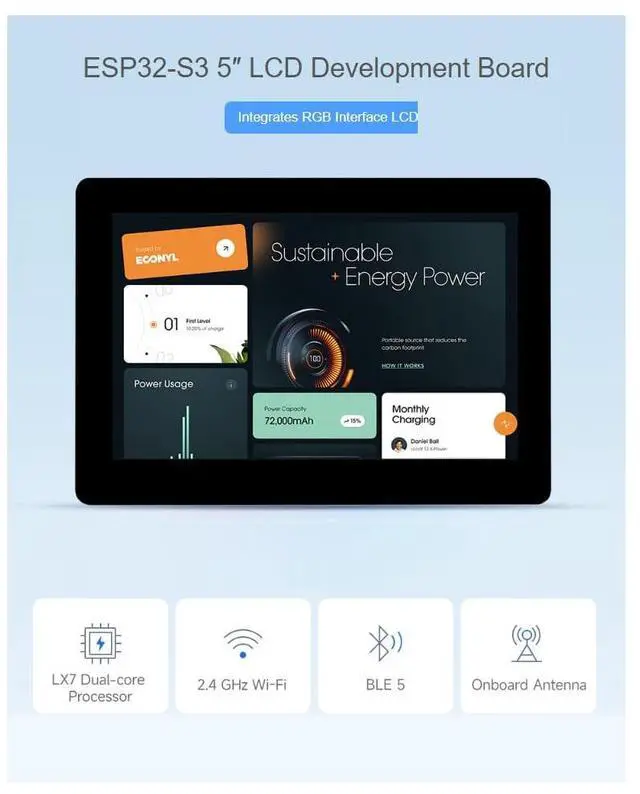

waveshare ESP32-S3 5inch Display LCD Development Board 1024x600 Solution IPS Display with 2.4GHz WiFi and BLE 5 Support,32-bit LX7 Dual-core Processor

ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Features
This product is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch LCD
screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI
and other ESP32-S3 applications

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

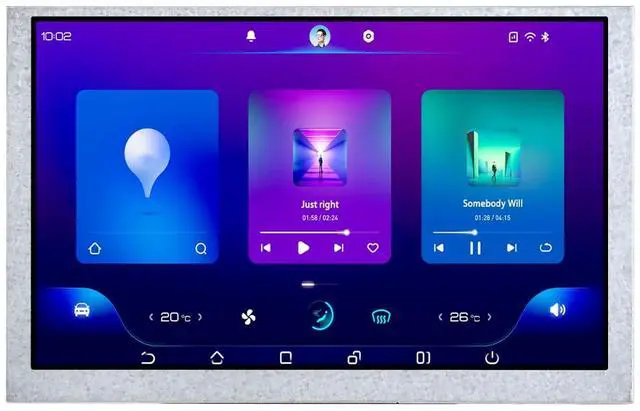

Onboard 5inch LCD display, options for 1024x600 resolution, 65K color
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss

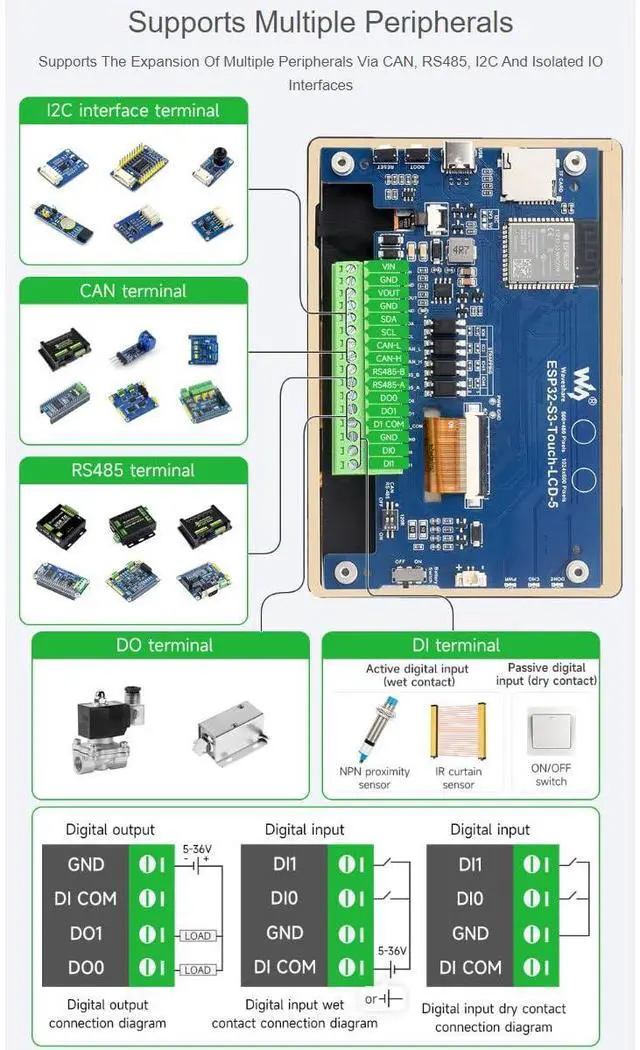

Onboard CAN, RS485, I2C interface, TF card slot, MX 1.25 2P battery header, and digital isolated IO interfaces, etc.
Supports passive and active digital input, with bi-directional optocoupler isolation
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Onboard LED indicators for indicating the power and battery recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Package Content
ESP32-S3-LCD-5B
