waveshare RP2040 Microcontroller Development Board with 1.69inch Touch LCD 240x280 Pixels 262K RGB Color Display, Based on Raspberry Pi RP2040,Accelerometer and Gyroscope Sensor
- RP2040-Touch-LCD-1.69,Based on Raspberry Pi RP2040
- Small Size, Touch More Possibilities.Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function
- Dual-Core Arm Processor,Dual-Core Arm Processor
- Supports C/C++, MicroPython, Arduino.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
- Touch Chip:Touch Chip,Display Chip:Display Chip
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

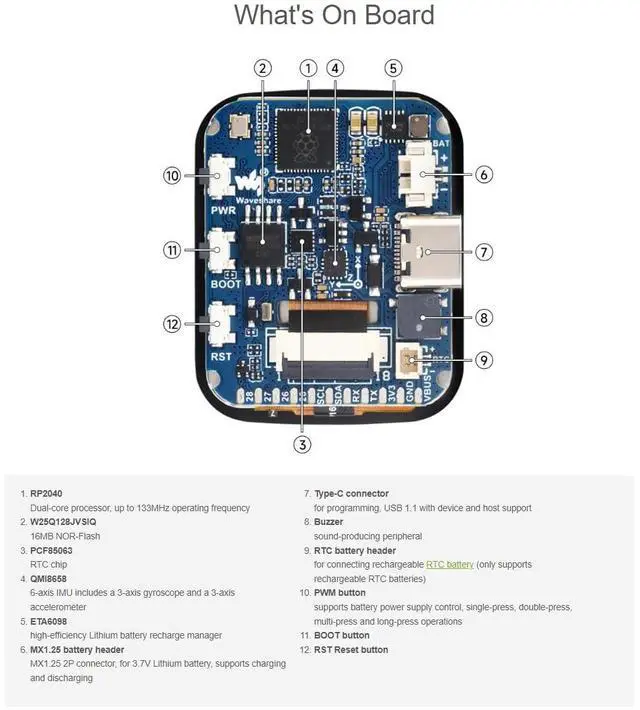

RP2040 Microcontroller Development Board, With 1.69 inch Touch LCD, Rounded Corners, Dual-Core Arm Processor, 16MB Flash, Accelerometer And Gyroscope Sensor
Features
RP2040-Touch-LCD- 1.69 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.69 inch capacitive touch display, Li-ion
battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, buzzer, and so on, which makes it easy for you to
develop and integrate it into products quickly.
Key features include:
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 16MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69 inch capacitive touch display, 240x280 resolution, 65K color
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard RTC chip and RTC battery header for timing and scheduling functions
Onboard buzzer for sound-producing peripheral
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Temperature sensor
Package Content
RP2040-Touch-LCD- 1.69 x1
Note
Technical Support is provided, please contact with us first if you have any problem.
Features
RP2040-Touch-LCD- 1.69 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.69 inch capacitive touch display, Li-ion
battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, buzzer, and so on, which makes it easy for you to
develop and integrate it into products quickly.
Key features include:
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 16MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69 inch capacitive touch display, 240x280 resolution, 65K color
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard RTC chip and RTC battery header for timing and scheduling functions
Onboard buzzer for sound-producing peripheral
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Temperature sensor
Package Content
RP2040-Touch-LCD- 1.69 x1
Note
Technical Support is provided, please contact with us first if you have any problem.
