ESP32-S3 MCU Board with 1.69inch LCD Touch Display, 240x280 Pixels 262K Color, Support 2.4GHz Wi-Fi & Bluetooth 5, 32-Bit LX7 Dual-Core Processor

Overview

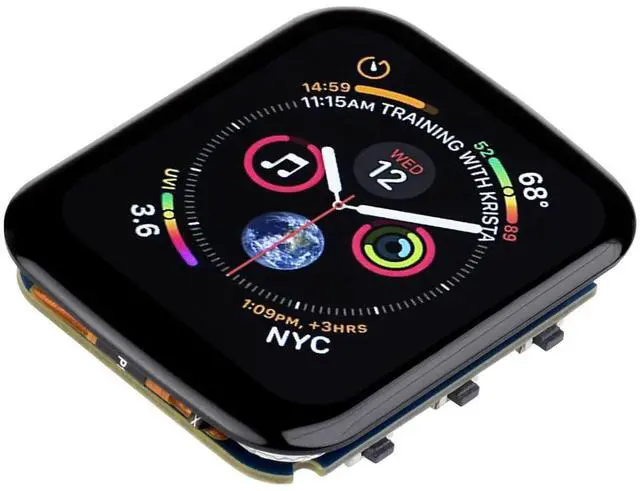

ESP32-S3-Touch-LCD- 1.69 is a low-cost, high-performance MCU board, tiny size, with onboard 1.69 inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.

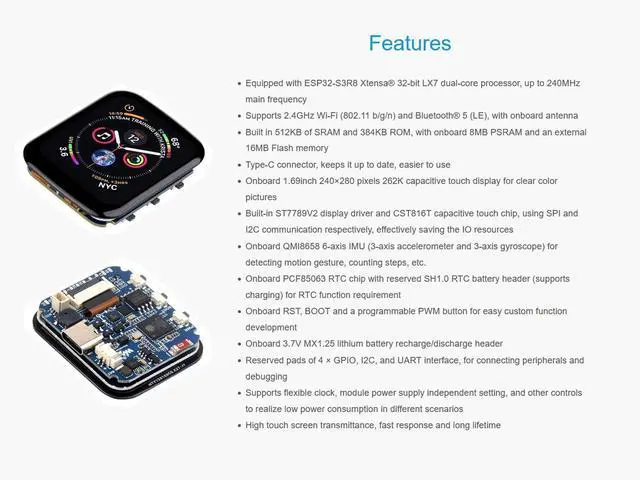

Features

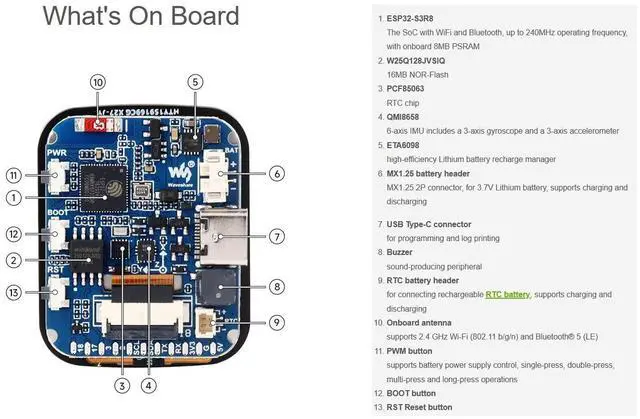

Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69 inch 240x280 pixels 262K capacitive touch display for clear color pictures

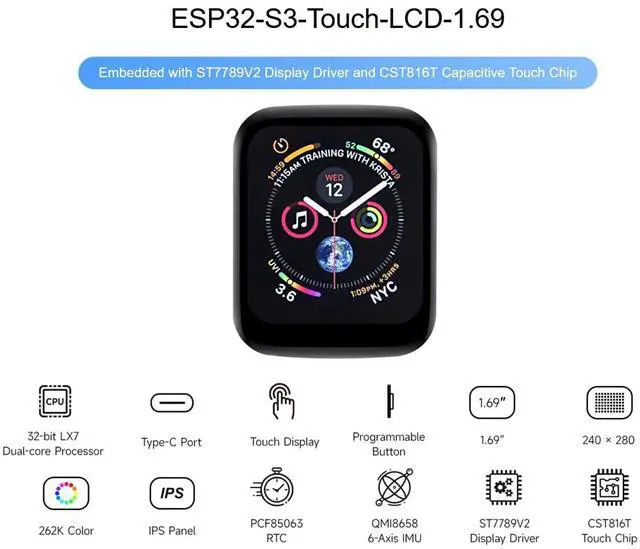

Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH 1.0 RTC battery header (supports charging) for RTC function requirement
Onboard RST, BOOT and a programmable PWM button for easy custom function development
Onboard 3.7V MX 1.25 lithium battery recharge/discharge header
Reserved pads of 4 x GPIO, I2C, and UART interface, for connecting peripherals and debugging
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
High touch screen transmittance, fast response and long lifetime

Package Content
ESP32-S3-Touch-LCD- 1.69 x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
