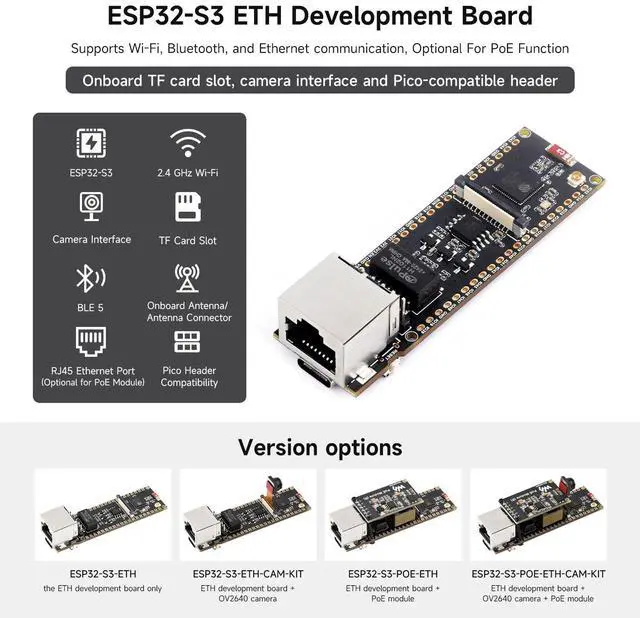

waveshare ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet Port, Wi-Fi & BT Support, 240MHz Dual Core Processor, Onboard Type-C Port and TF Card Slot, Board ONLY

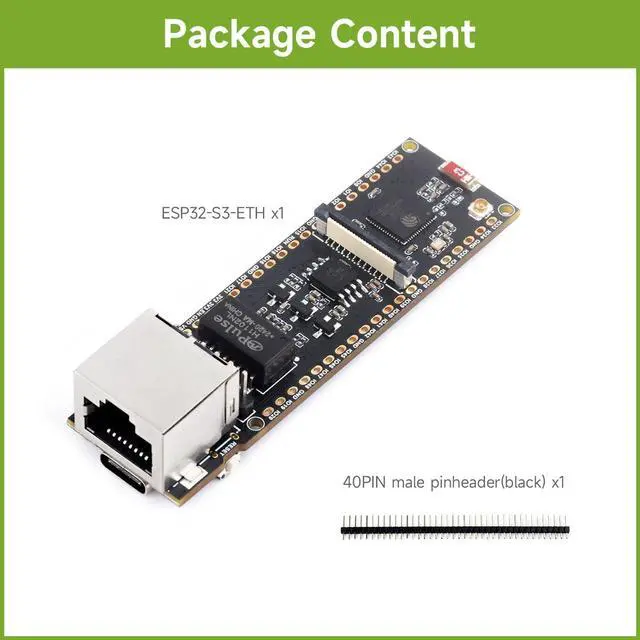

- There are several options for this item, this option is board only. For more package content details, please check the image 2

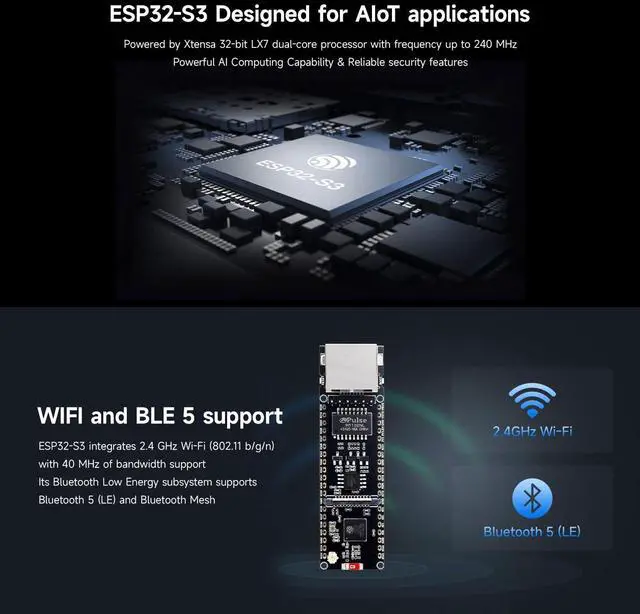

- Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
- Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface. Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
- Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard TF card slot for external TF card storage of pictures or files. Compatible with Pico header, onboard multiple periphe
+
+
