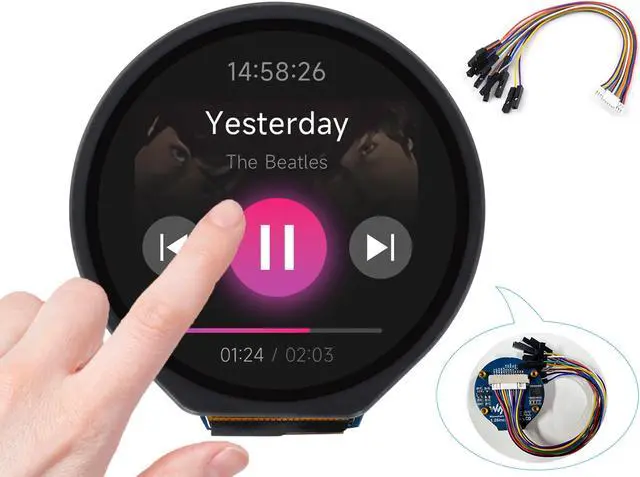

1.28inch Touch Round LCD Module with Touch Panel, 240x240 IPS Capacitive Display Screen, 65K RGB Color, SPI & I2C Port, GC9A01 & CST816S Chip, for Raspberry Pi/Raspberry Pi Pico/Ardu/STM32, etc

Overview

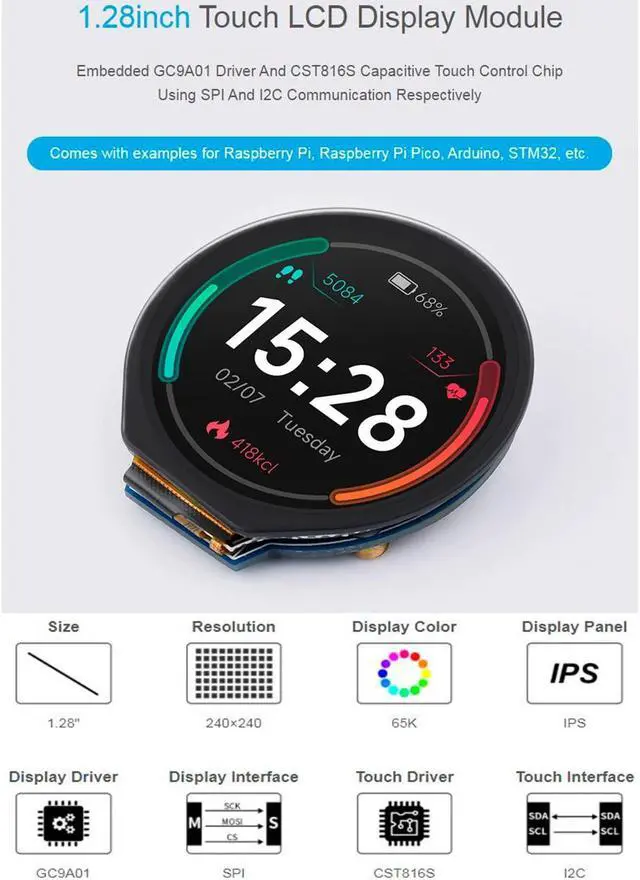

1.28 inch Touch LCD Display Module, Embedded GC9A01 Driver And CST816S Capacitive Touch Control Chip, Using SPI And I2C Communication Respectively.

Features
240x240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime

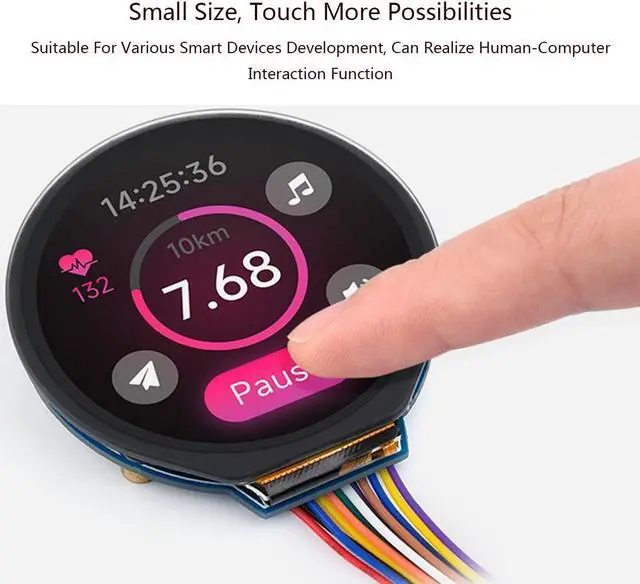

Small Size,
Touch More Possibilities: Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

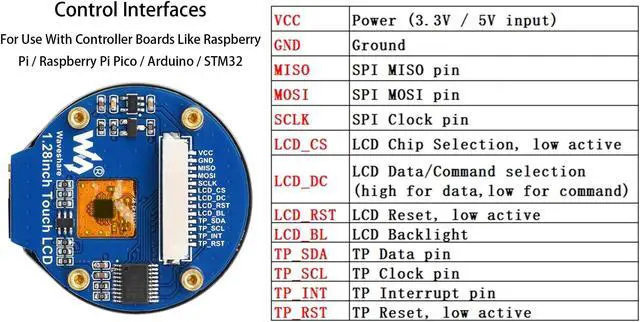

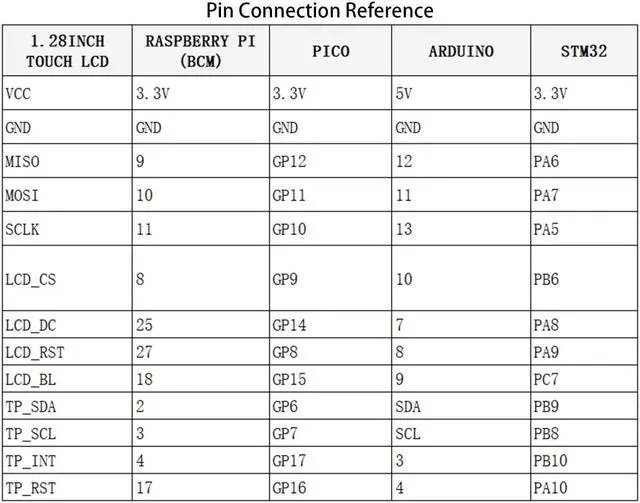

Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Specifications

OPERATING VOLTAGE--- 3.3V / 5V
RESOLUTION---240 x 240 pixels
DISPLAY DRIVER---GC9A01
TOUCH DRIVER---CST816S
TOUCH INTERFACE---I2C
DISPLAY INTERFACE---4-wire SPI
DISPLAY PANEL---IPS
TOUCH TYPE---Capacitive
DISPLAY SIZE---Ph 32.4 mm
PIXEL SIZE--- 0.135 x 0.135 mm
MODULE SIZE--- 9.89 x 38.50 mm Ph 38.50 mm

LCD and Controller
This LCD adopts built-in driver GC9A01 with a resolution of 240RGB x 240 dots, which has an internal GRAM of 129, 600 bytes. It supports MCU port with 12/16/18 data bus, that is, the common RGB format of RGB444, RGB565, and RGB666. For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save GPIO ports, and the communication speed will be faster.

How-to-use document/User Manual: //bit. ly/3Zk33oQ

PACKAGE CONTENT
1.28 inch Touch LCD x1
GH 1.25 13Pin cable x1
