2.9inch e-Paper Display Module, 296x128 Resolution 3.3V/5V Two-Color epaper Display E-Ink Screen Module SPI Interface Compatible with Raspberry Pi/Arduino/Jetson Nano,Support Partial Refresh
- SPI interface, Compatible with Raspberry Pi/Arduino/Nucleo, etc.
- Ultra low power consumption, basically power is only required for refreshing

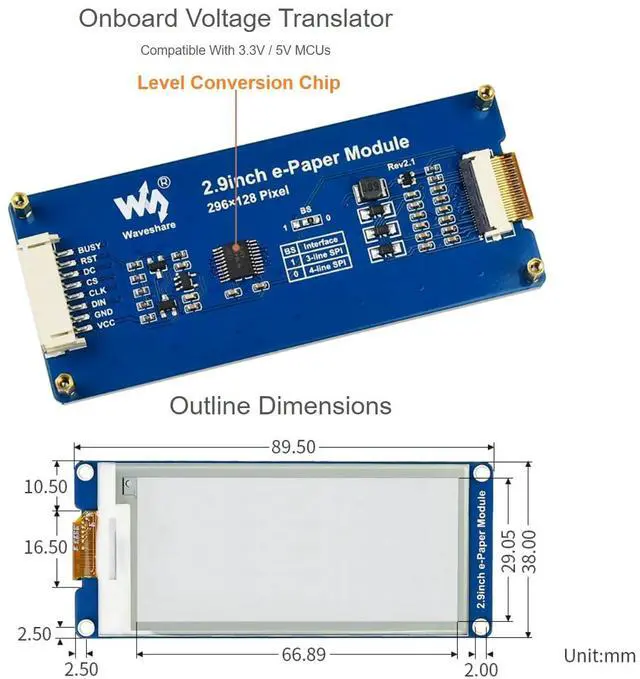

- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples Compatible with Raspberry Pi/Arduino/STM32)
- No backlight, keeps displaying last content for a long time even when power down
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

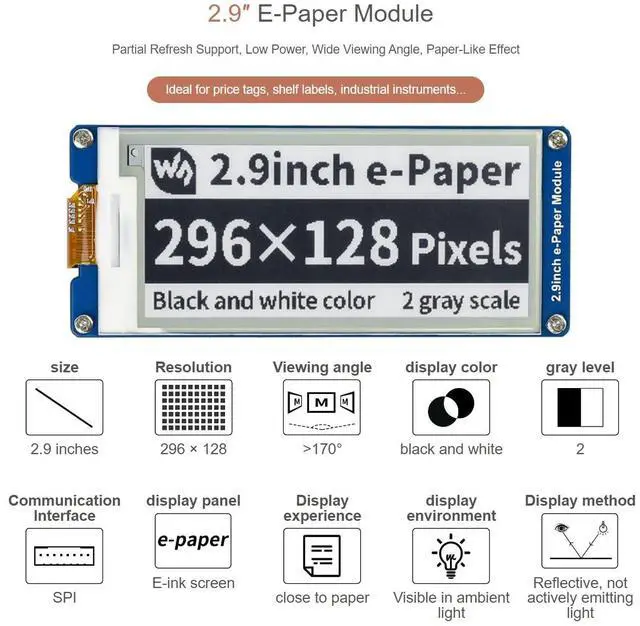

This is an 2.9 inch E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as
shelf label, industrial instrument, and so on.
Operating voltage: 3.3V /5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5 mm x 38mm
Display size: 66.89 mm x 29.05 mm
Dot pitch: 0.138 x 0.138
Resolution: 296 x 128
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170deg

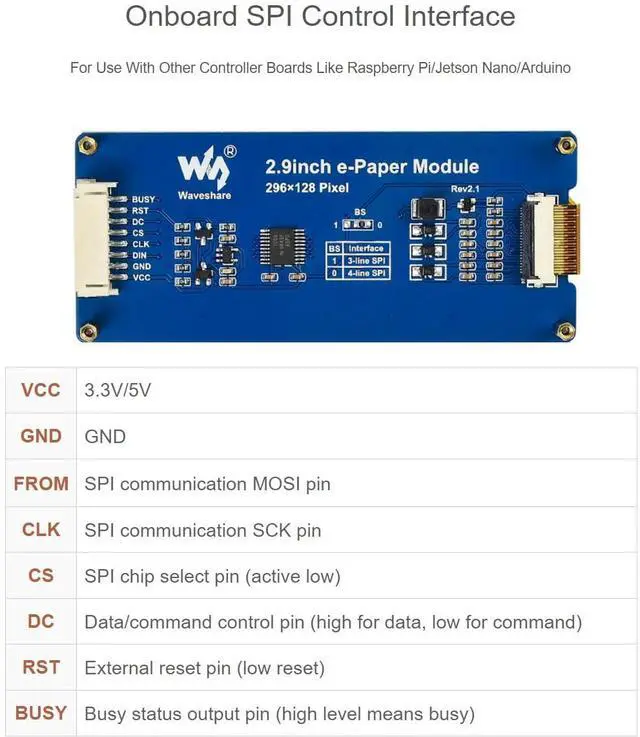

Interfaces
VCC- 3.3V
GND-GND
DIN-SPI MOSI
CLK-SPI SCK
CS-SPI chip select (Low active)
DC-Data/Command control pin (High for data, and low for command)
RST-External reset pin (Low for reset)
BUSY-Busy state output pin (High for busy)

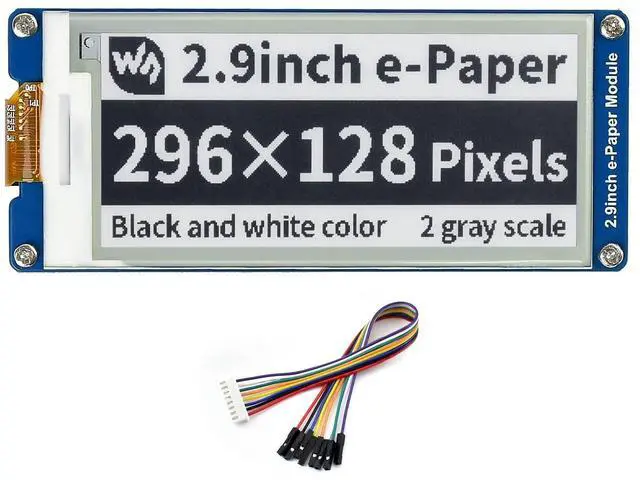

Package Content
2.9 inch e-Paper Module x1
PH 2.0 20cm 8Pin x1
Note: Online development resources and technical support are provided, pleae contact with us to get if you need.
This is an 2.9 inch E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as
shelf label, industrial instrument, and so on.

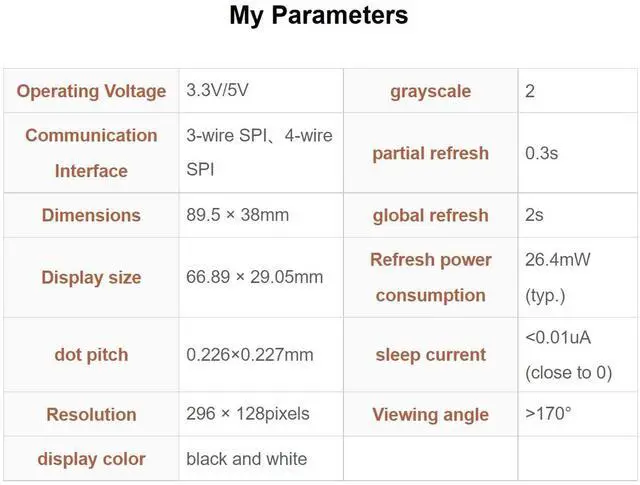

Specifications
Operating voltage: 3.3V /5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 89.5 mm x 38mm
Display size: 66.89 mm x 29.05 mm
Dot pitch: 0.138 x 0.138
Resolution: 296 x 128
Display color: black, white
Grey level: 2
Partial refresh time: 0.3 s
Full refresh time: 2s
Refresh power: 26.4 mW(typ. )
Standby power: <0.017mW
Viewing angle: >170deg
Interfaces
VCC- 3.3V
GND-GND
DIN-SPI MOSI
CLK-SPI SCK
CS-SPI chip select (Low active)
DC-Data/Command control pin (High for data, and low for command)
RST-External reset pin (Low for reset)
BUSY-Busy state output pin (High for busy)
Package Content
2.9 inch e-Paper Module x1
PH 2.0 20cm 8Pin x1
Note: Online development resources and technical support are provided, pleae contact with us to get if you need.
