ESP32-S3 MCU Board with Onboard 1.28inch Touch Display and 6-Axis Sensor etc. 32-bit LX7 Dual-core Processor, Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5, Type-C Connector

Overview

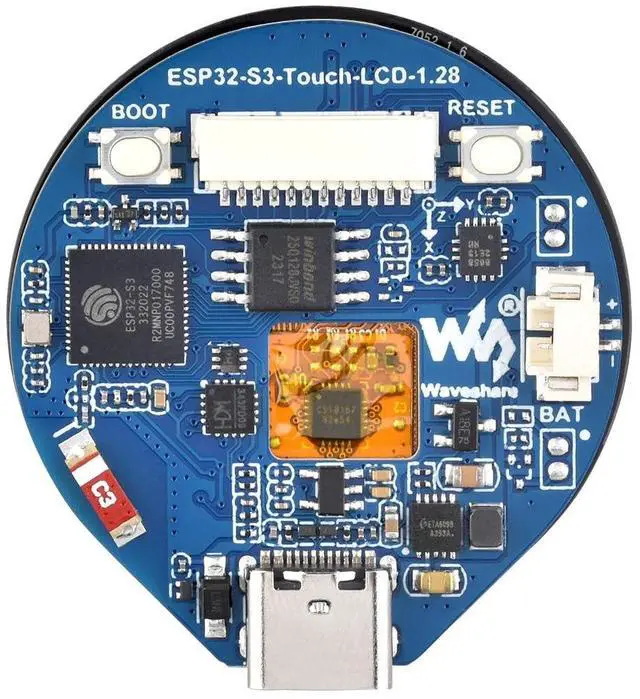

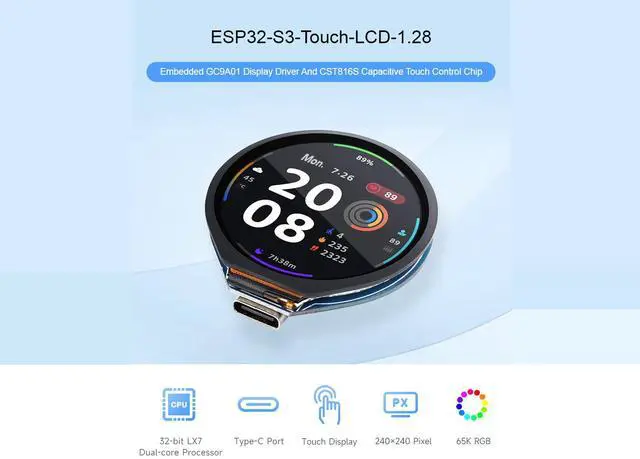

ESP32-S3-Touch-LCD- 1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28 inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Features
-- Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency
-- Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
-- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
-- Type-C connector, keeps it up to date, easier to use

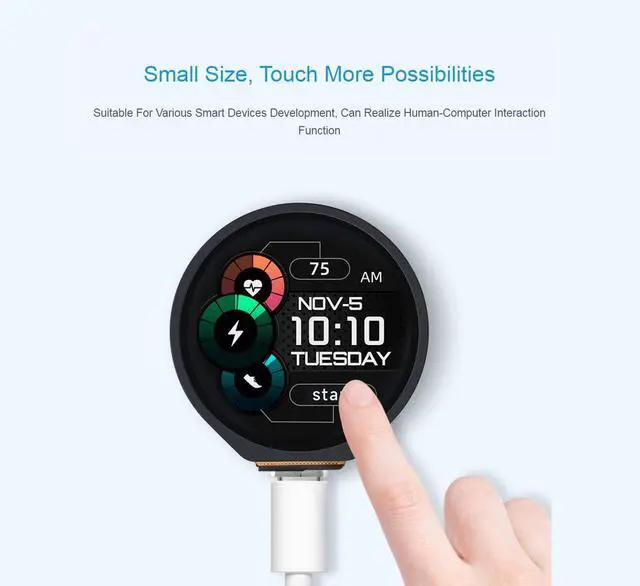

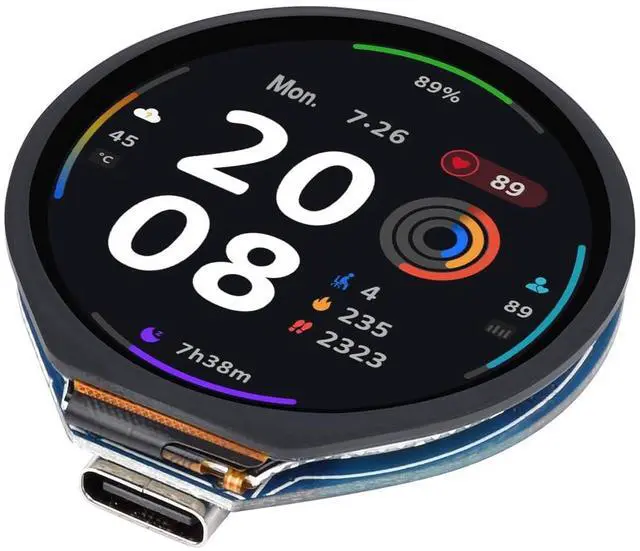

-- Onboard 1.28 inch capacitive touch display, 240x240 resolution, 65K color
-- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

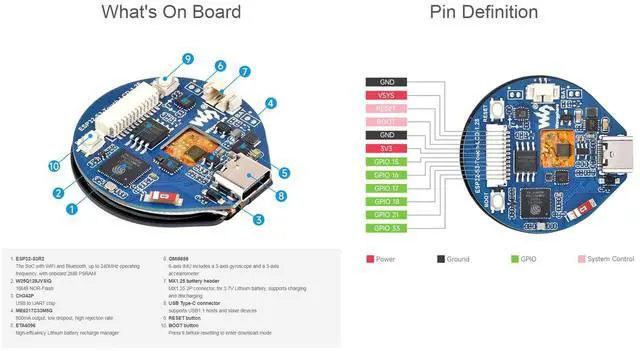

-- Onboard 3.7V lithium battery recharge/discharge header and 6 x GPIO pins via SH 1.0 connector
-- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
-- Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Package Content
ESP32-S3-Touch-LCD- 1.28 x1

Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
