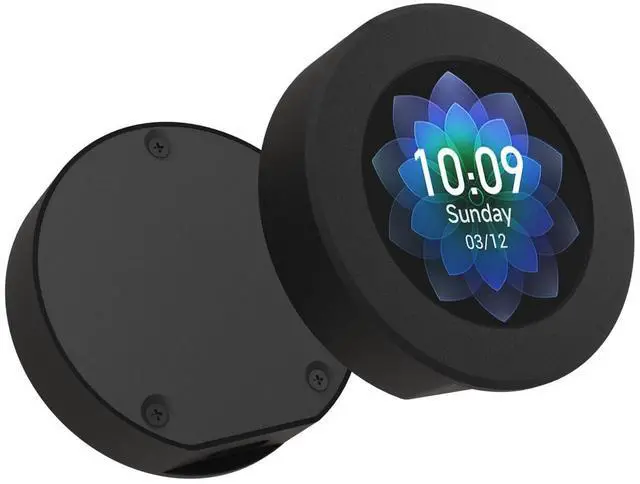

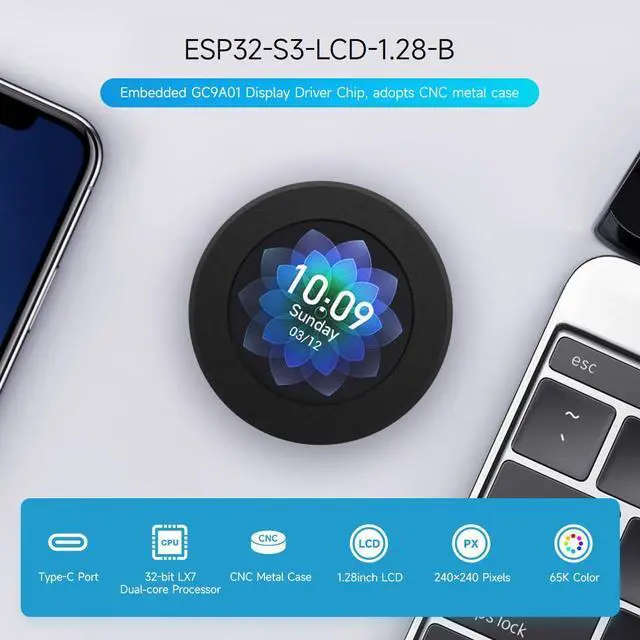

Waveshare ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, with 1.28inch IPS Round LCD, 240×240 Resolution, with CNC Metal Case

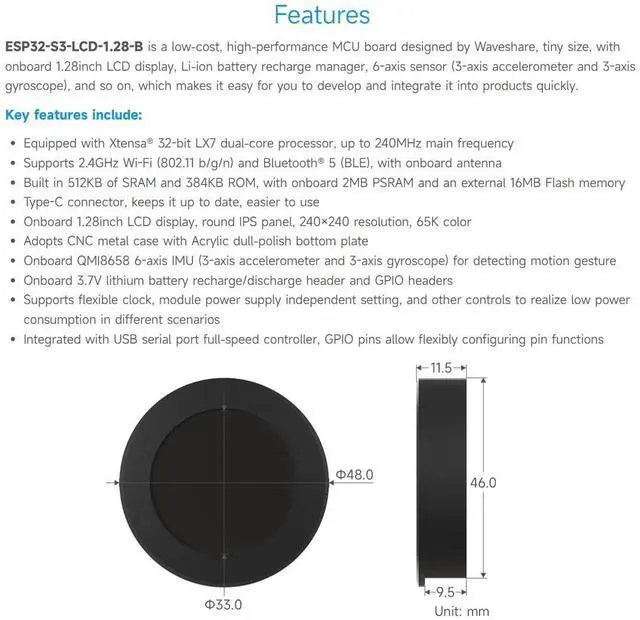

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use. Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color

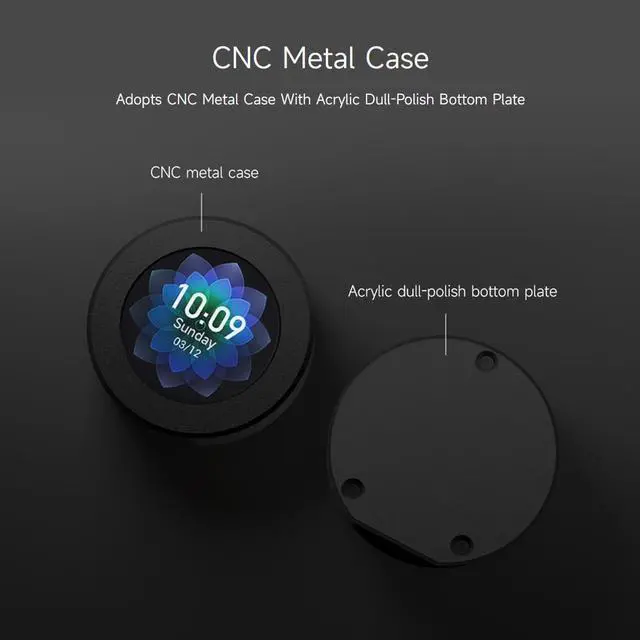

- Adopts CNC metal case with Acrylic dull-polish bottom plate. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V lithium battery recharge/discharge header and GPIO headers. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
+
+
