64x64 4096 Pixels RGB Full-Color LED Matrix Panel 2.5mm Pitch, Adjustable Brightness Chainable Design,Display Text/Colorful Image/Animation, Compatible with Raspberry Pi / Raspberry Pi Pico / ESP32

64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 2.5 mm Pitch. Compatible with Arduino/ Raspberry Pi / Raspberry Pi Pico / ESP32

Features
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

4096 individual RGB LEDs, full-color display, adjustable brightness

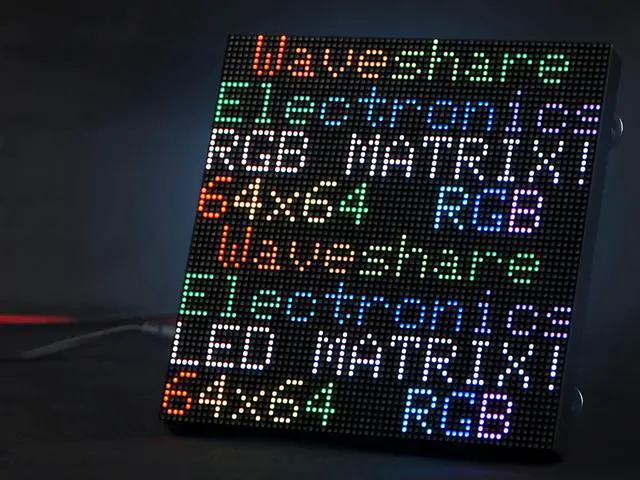

64×64 pixels, 2.5 mm pitch, allows displaying text, colorful image, or animation
160×160mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

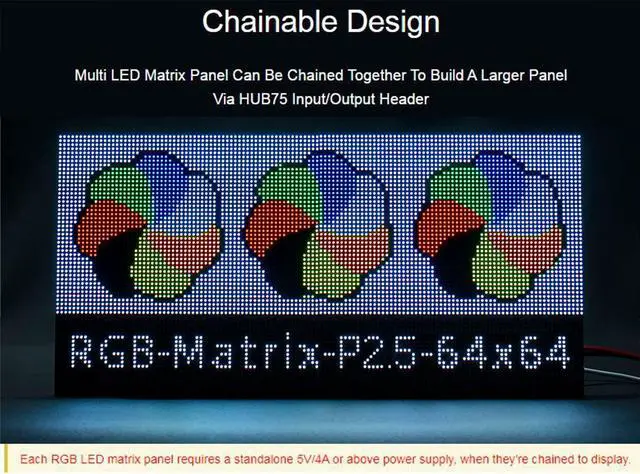

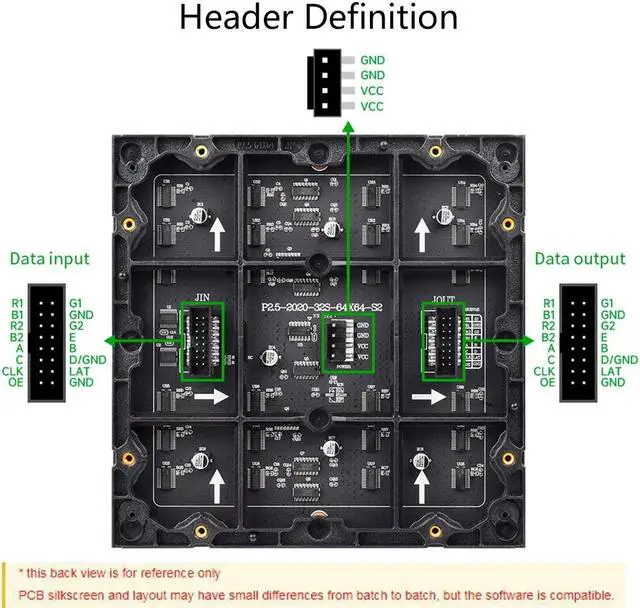

Onboard two HUB75 header, one for controller data input, one for output, chain support
Usage scenarios: DIY maker desktop or wall mount display, signboard, environment monitor

Specifications

DIMENSIONS--- 160mm × 160mm
PIXELS--- 64×64=4096 DOTS
PITCH--- 2.5 mm
PIXEL FORM--- 1R1G1B
VIEWING ANGLE--- 140°
CONTROL TYPE--- synchronization
DRIVING--- 1/32 scan
HEADER--- HUB75
POWER SUPPLY--- 5V / 4A (VH4 header input)
POWER--- 20W

Online Tutorial: n9. cl/3gavc

Package Content
RGB-Matrix-P 2.5 -64x64 LED matrix and accessories x1
Power supply terminal adapter x1
16P wire ~30cm x1
