$84.99
Meet Your Seller

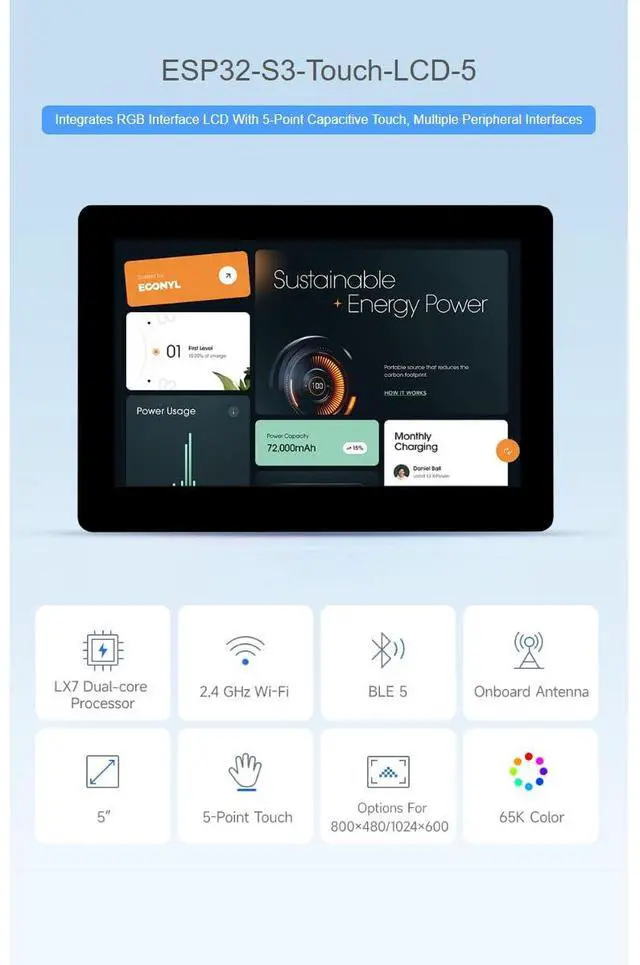

ESP32-S3 5inch Capacitive Touch LCD Development Board 1024×600 Solution IPS Display with 2.4GHz WiFi and BLE 5 Support,32-bit LX7 Dual-core Processor
- ESP32-S3 5inch Touch LCD B,Integrates RGB Interface LCD With 5-Point Capacitive Touch, Multiple Peripheral Interfaces

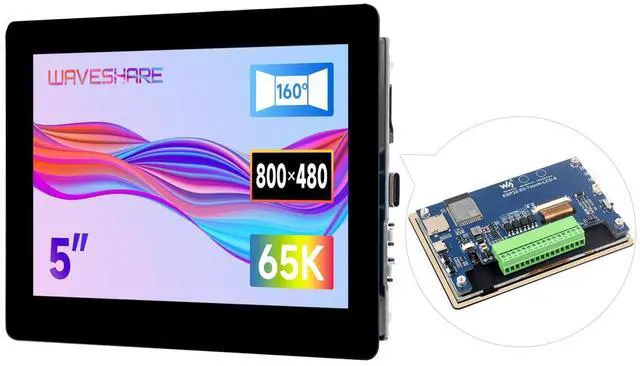

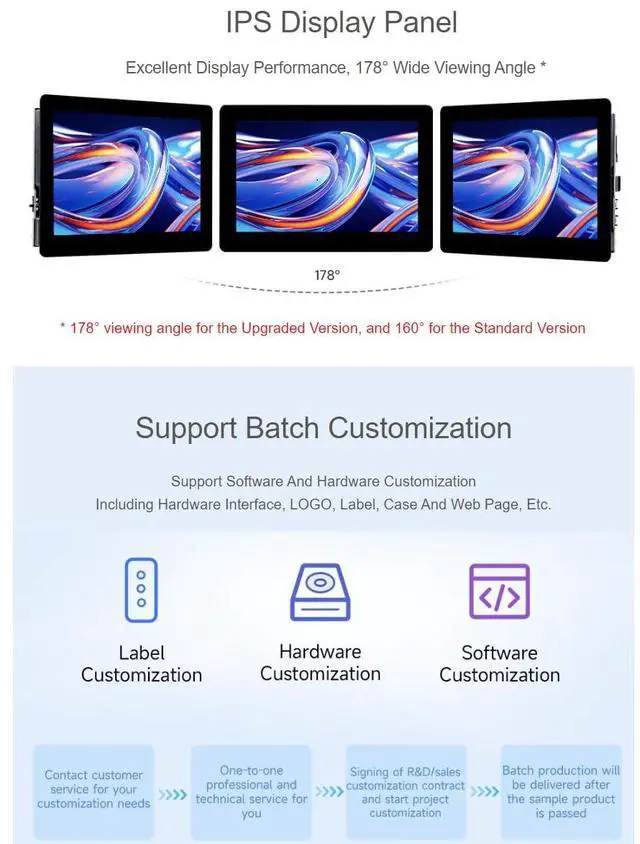

- IPS Display Panel,IPS Display Panel

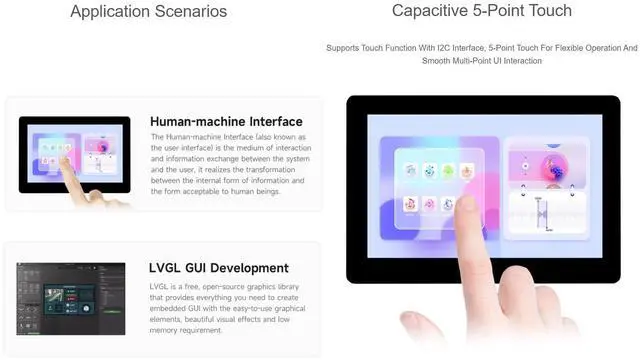

- Capacitive 5-Point TouchSupports Touch Function With I2C Interface, 5-Point Touch For Flexible Operation And Smooth Multi-Point UI Interaction

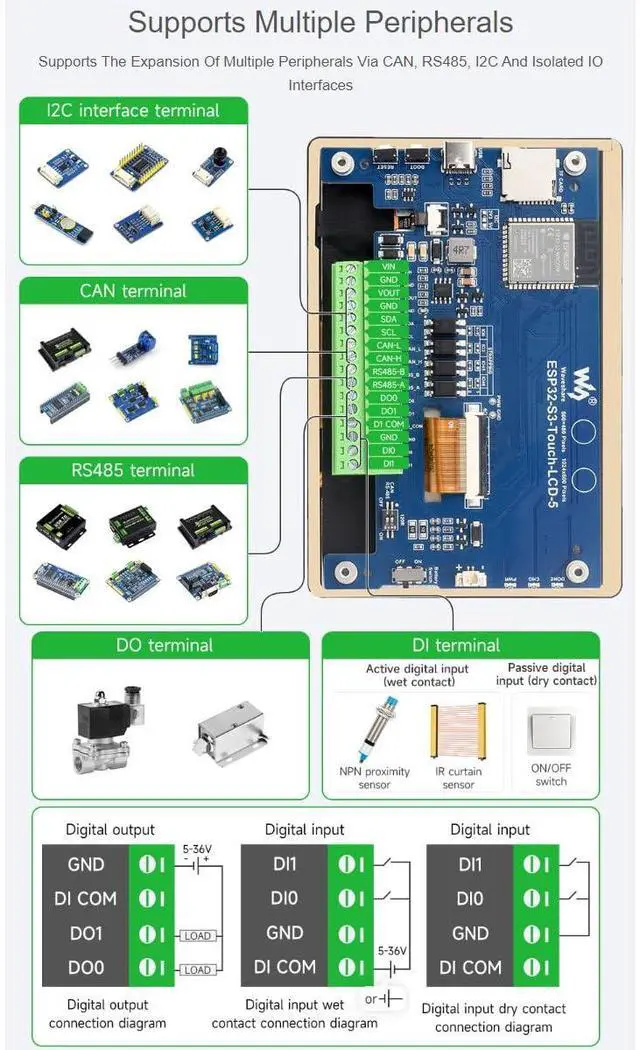

- Supports Multiple Peripherals,Supports The Expansion Of Multiple Peripherals Via CAN, RS485, I2C And Isolated IO Interfaces
- Support Batch Customization,Support Software And Hardware Customization,Including Hardware Interface, LOGO, Label, Case And Web Page, Etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency,
Supports WiFi & Bluetooth, With Onboard Antenna, Options For 1024x600 Display Resolution
Features
This product is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch
capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the
HMI and other ESP32-S3 applications
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 5inch capacitive touch display, options for 800×480/1024x600 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.
Supports passive and active digital input, with bi-directional optocoupler isolation
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Onboard LED indicators for indicating the power and battery recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Package Content
ESP32-S3-Touch-LCD-5B (with bottom wiring 16PIN screw terminal) x1
Supports WiFi & Bluetooth, With Onboard Antenna, Options For 1024x600 Display Resolution
Features
This product is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch
capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the
HMI and other ESP32-S3 applications
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 5inch capacitive touch display, options for 800×480/1024x600 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.
Supports passive and active digital input, with bi-directional optocoupler isolation
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Onboard LED indicators for indicating the power and battery recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Package Content
ESP32-S3-Touch-LCD-5B (with bottom wiring 16PIN screw terminal) x1
