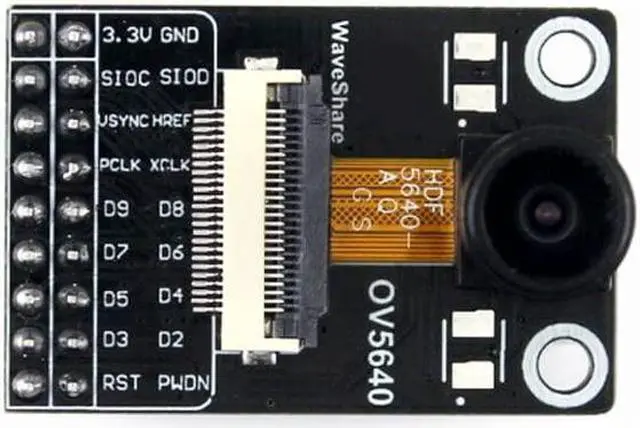

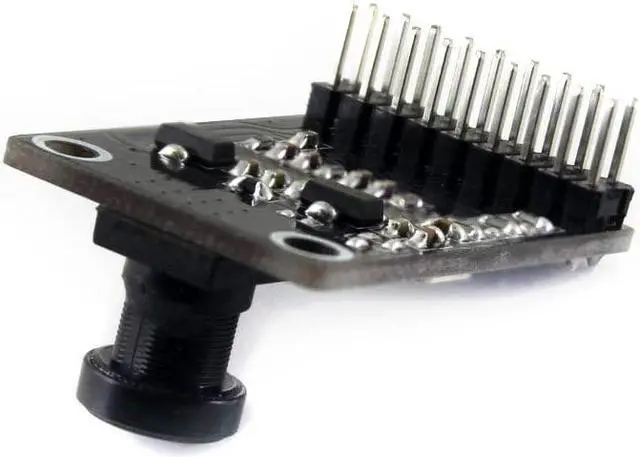

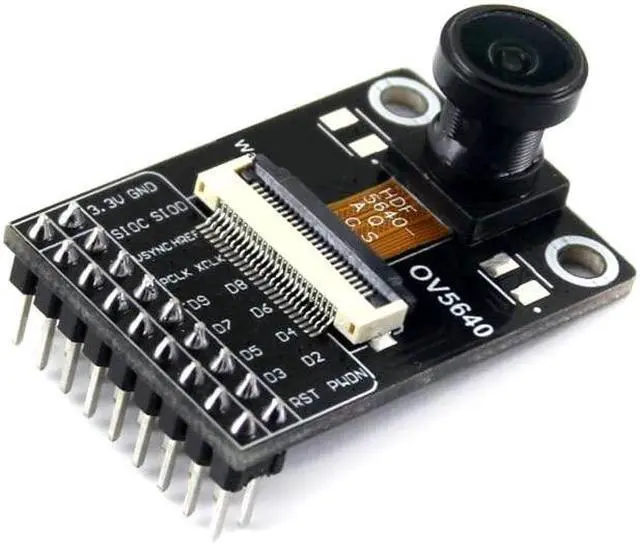

waveshare OV5640 Camera Board (B) Image Sensor Module 5 Megapixel (2592x1944) Fisheye Lens to Achieve 170 Degree Diagonal
- Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Fisheye Lens to Achieve 170 Degree Diagonal
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc.
- CCD size: 1/4inch;CCD size: 1/4inch;Focal Length: 2.0mm;Diagonal: 170 degree (fisheye).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Pixels: 5 megapixel
Resolution: 2592x1944
Sensor: OV5640
1.4 um x 1.4 um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
Supports image scaling, panning, windowing, etc.
Lens:
CCD size: 1/4inch
Aperture (F): 2.5
Focal Length: 2.0 mm
Diagonal: 170 degree (fisheye)
Output Formats:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Operating Voltage: 3.3V
Control Interface: SCCB (I2C compatible)
Data Interface: DVP 8-bit

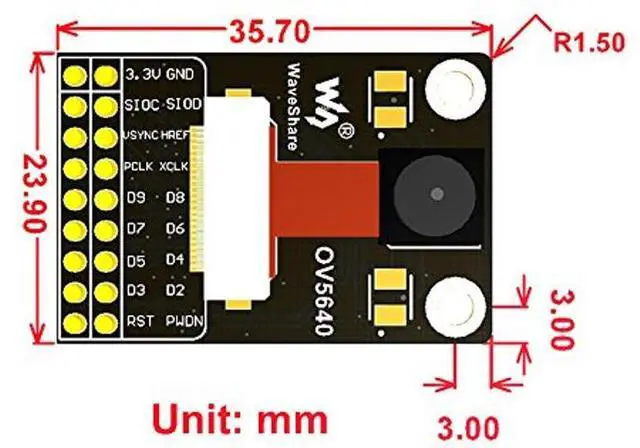

Dimension: 35.70 mm × 23.90 mm
PACKAGE CONTENT
OV5640 Camera Board (B) x1
Pixels: 5 megapixel
Resolution: 2592x1944
Sensor: OV5640
1.4 um x 1.4 um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
Supports image scaling, panning, windowing, etc.
Lens:
CCD size: 1/4inch
Aperture (F): 2.5
Focal Length: 2.0 mm
Diagonal: 170 degree (fisheye)
Output Formats:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Operating Voltage: 3.3V
Control Interface: SCCB (I2C compatible)
Data Interface: DVP 8-bit
Dimension: 35.70 mm × 23.90 mm
PACKAGE CONTENT
OV5640 Camera Board (B) x1
