5inch DSI Touch Display for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, Thin & Light Touch Screen 800×480 Resolution IPS Display, Support 5-Point Capacitive Touch
- 5inch DSI touch display, 800 x 480 hardware resolution, 5-point capacitive touch control, IPS Display Panel, with 160° wide viewing angle

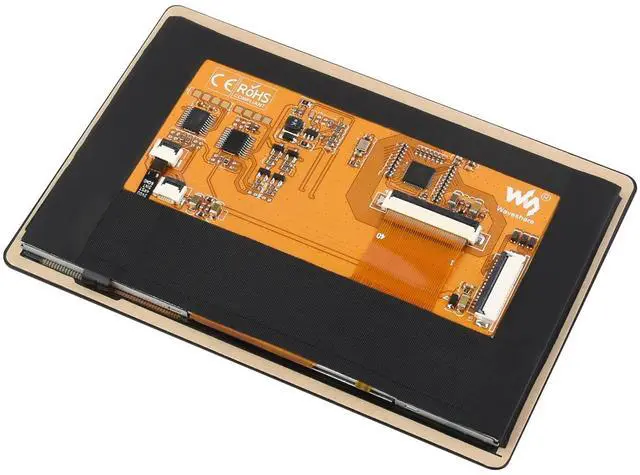

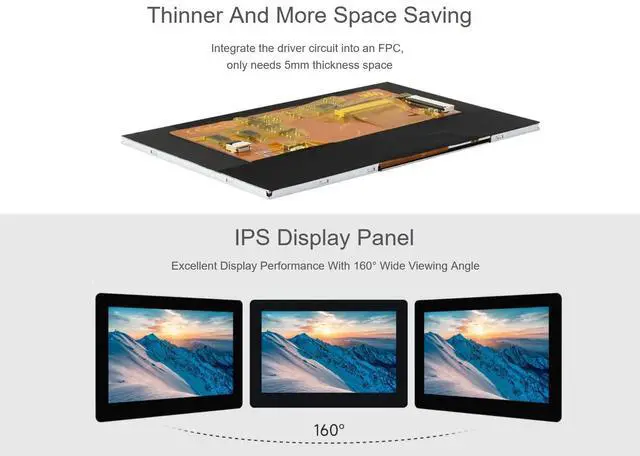

- Thin and light touch screen, integrated structure design, DSI one-cable communication for embedding engineering applications quickly, thinner and more space saving, integrate the driver circuit into an FPC, only needs 5mm thickness space

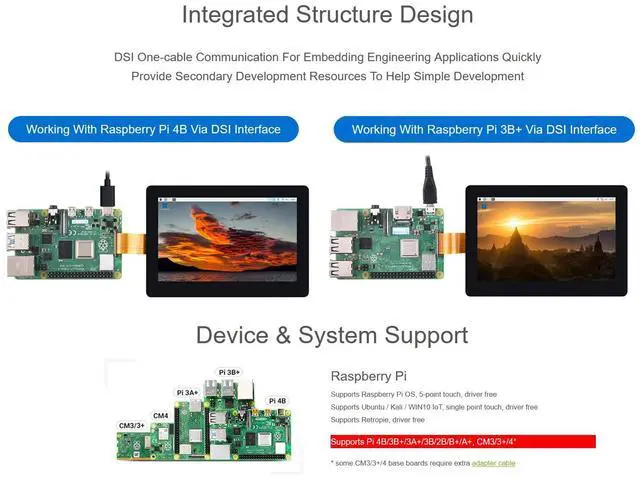

- Support Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+, and some CM3/3+/4 expansion board need a DSI Cable 15cm. Directly drive the LCD via the DSI port of the Raspberry Pi, and the refreshing rate is up to 60Hz
- When working with the Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali and Retropie, and is driver-free
- Support adjusting the backlight via the software and saving more power
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

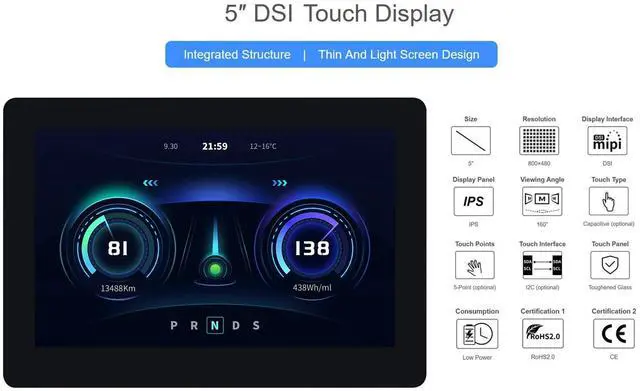

5 DSI Touch Display, 800 × 480 Resolution, Integrated Structure, Thin and Light Screen Design
Features
5-inch IPS screen, 800 x 480 hardware resolution.
5-point capacitive touch control, toughened glass panel, hardness up to 6H.
Support Pi4B/3B+/3A+/3B/2B/B+/A+, and some CM3/3+/4 expansion board need a DSI Cable 15cm.
Directly drive the LCD via the DSI port of the Raspberry Pi, and the refreshing rate is up to 60Hz.
When working with the Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali and Retropie, and is driver-free.
Support adjusting the backlight via the software and saving more power.
Parameters
Dimensions: 5.0 inch
Viewing Angle: 160 Deg
Resolution: 800 (RGB) × 480 Pixels
Touch Screen Dimensions: 127.7 (H) × 87.45 (V) × 4.9 (D) mm
Display Screen Dimensions: 120.7 (H) × 75.8 (V) × 2.8 (D) mm
Display Area: 108.0 (W) × 64.8 (H) mm
IPS Color Gamut: 50%NTSC
Brightness: 300 cd/m²
Backlight Adjustment: Software
Contrast: 1000:1
Color Depth: 16.7M
Refresh Rate: 60 Hz
Driver Port: DSI Port
Package Content
50H-800480-IPS-CT x1

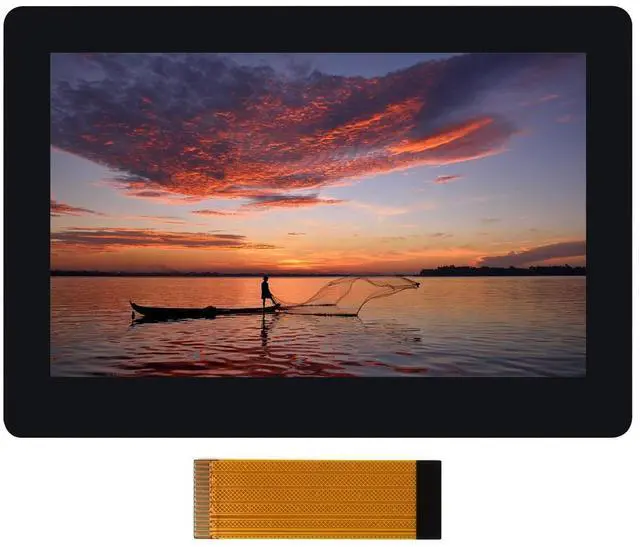

FPC 15 PIN cable (~ 50mm) x2
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
5 DSI Touch Display, 800 × 480 Resolution, Integrated Structure, Thin and Light Screen Design
Features
5-inch IPS screen, 800 x 480 hardware resolution.
5-point capacitive touch control, toughened glass panel, hardness up to 6H.
Support Pi4B/3B+/3A+/3B/2B/B+/A+, and some CM3/3+/4 expansion board need a DSI Cable 15cm.
Directly drive the LCD via the DSI port of the Raspberry Pi, and the refreshing rate is up to 60Hz.
When working with the Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali and Retropie, and is driver-free.
Support adjusting the backlight via the software and saving more power.
Parameters
Dimensions: 5.0 inch
Viewing Angle: 160 Deg
Resolution: 800 (RGB) × 480 Pixels
Touch Screen Dimensions: 127.7 (H) × 87.45 (V) × 4.9 (D) mm
Display Screen Dimensions: 120.7 (H) × 75.8 (V) × 2.8 (D) mm
Display Area: 108.0 (W) × 64.8 (H) mm
IPS Color Gamut: 50%NTSC
Brightness: 300 cd/m²
Backlight Adjustment: Software
Contrast: 1000:1
Color Depth: 16.7M
Refresh Rate: 60 Hz
Driver Port: DSI Port
Package Content
50H-800480-IPS-CT x1
FPC 15 PIN cable (~ 50mm) x2
NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
