Sense HAT (B) for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W,Pi 40PIN GPIO Extension Header Onboard Gyroscope Accelerometer Magnetometer Barometer Temperature Humidity Multi Sensors I2C Interface

Overview

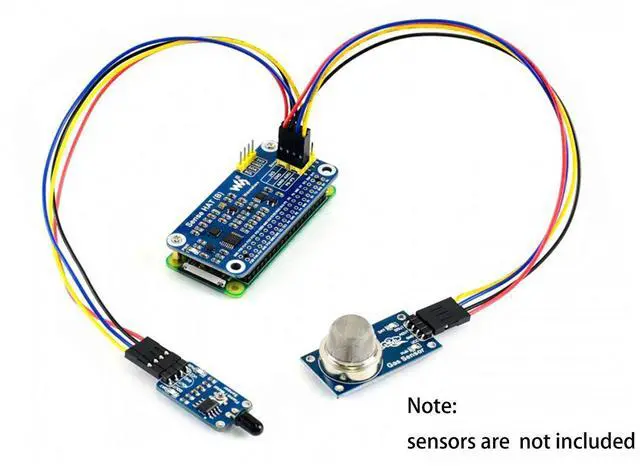

The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need.

Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic.
Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment.
Onboard LPS22HB barometric pressure sensor, allows monitoring the environment.
Onboard TCS34725 color sensor, identifies the color of nearby object.
Onboard SGM58031, 4-ch 16-bit precision, AD expansion to support more external sensors.
Brings I2C control pins, for connecting other host boards like STM32.

Specification

Working voltage: 3.3V
Interface: I2C
Dimension: 65mm x 30.5 mm

1. Accelerometer
Resolution: 16-bit
Ranging: ±2/±4/±8/±16g


2. Gyoscope
Resolution: 16-bits
Ranging: ±250/±500/±1000/±2000°/sec

3. Magnetometer
Resolution: 16-bits
Ranging: ±4900µT


4. Barometer
Resolution: 24-bits (Pressure), 16-bits (Temperature)
Accuracy (ordinary temperature): ± 0.025 hPa
Speed: 1 Hz - 75 Hz


5. Temperature & Humidity
Accuracy (humidity): ±2% rH
Ranging (humidity): 0% ~ 100% rH
Accuracy (temperature): ± 0.2 °C
Ranging (temperature): -30 ~ 100°C

Color sensor: Resolution: 4-channels RGBC, 16-bits per channel
ADC: Resolution: 12-bits

How to use Document/User Manual:
https: //bit. ly/3trV0bL

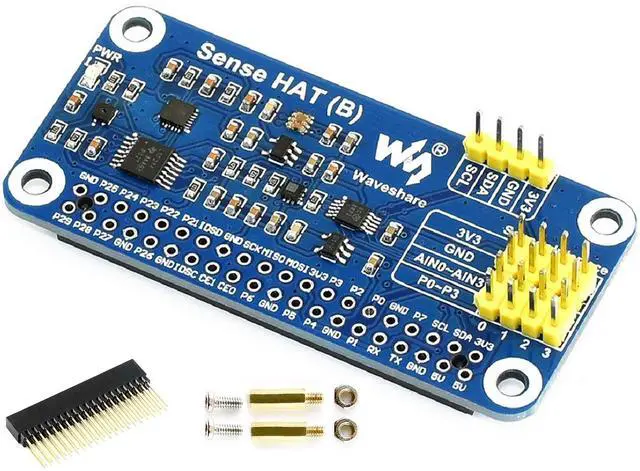

Package Content
Sense HAT (B) x1
RPi screws pack (2pcs) x1
2x20PIN female header x1

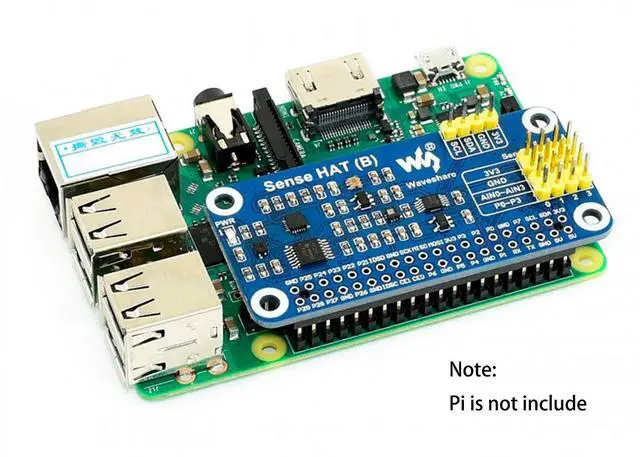

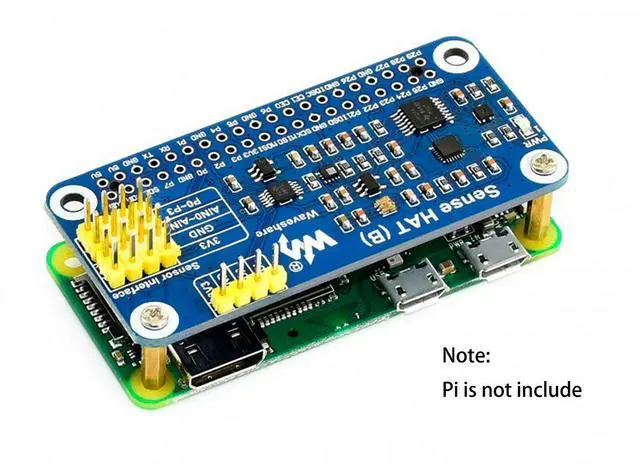

Note: Raspberry Pi and external sensors are NOT included.
