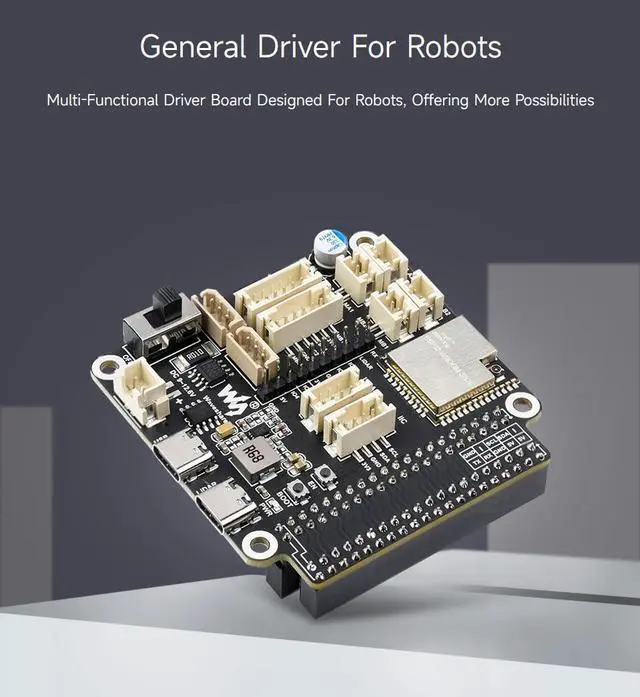

Waveshare General Driver Board for Robots, Compatible with Raspberry Pi and Jetson Nano, Based On ESP32, Multi-Functional, Supports WiFi, and ESP-Now Communications

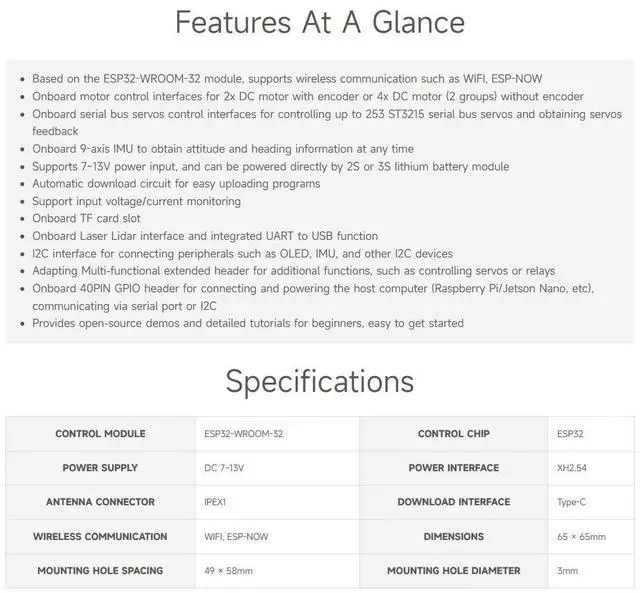

- Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, blutooth and ESP-NOW. Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
- Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback. Onboard 9-axis IMU to obtain attitude and heading information at any time
- Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module. Automatic download circuit for easy uploading programs. Support input voltage/current monitoring. Onboard TF card slot

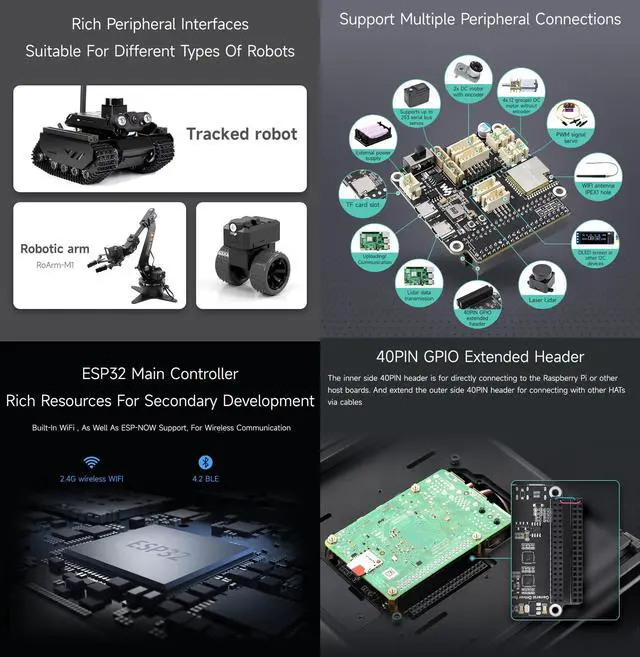

- Onboard Laser Lidar interface and integrated UART to USB function. IIC interface for connecting peripherals such as OLED, IMU, and other IIC devices. Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
- Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare General Driver Board for Robots, Compatible with Raspberry Pi and Jetson Nano, Based On ESP32, Multi-Functional, Supports WiFi, and ESP-Now Communications
