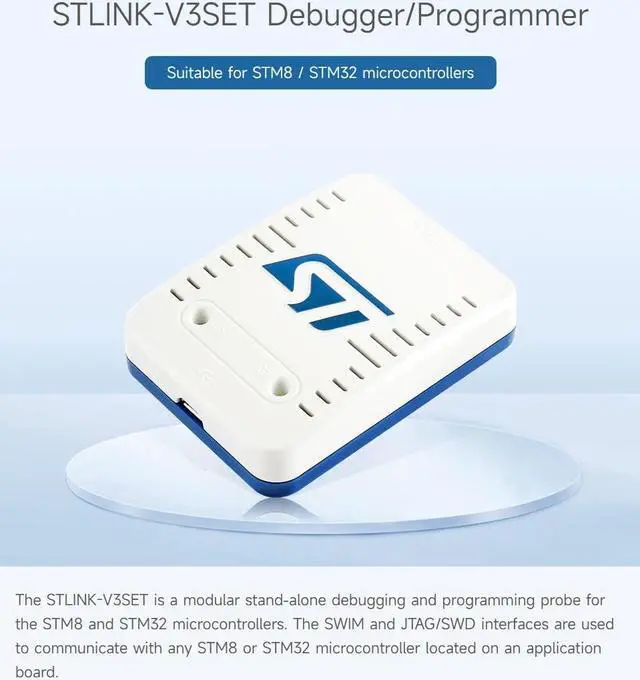

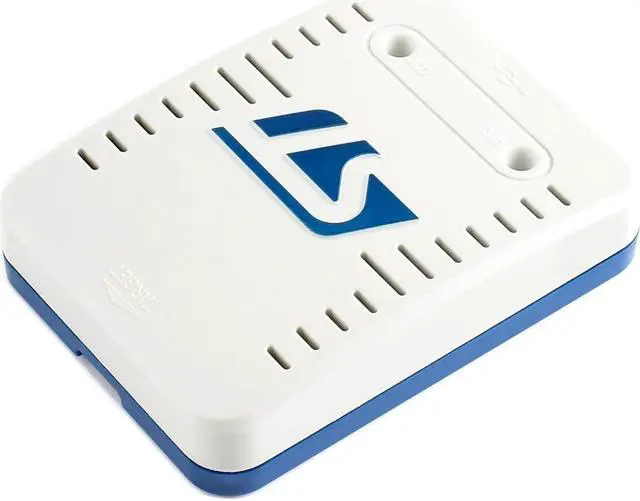

Waveshare STLINK-V3SET Modular in-Circuit Debugger Programmer for STM8 STM32 USB JTAG

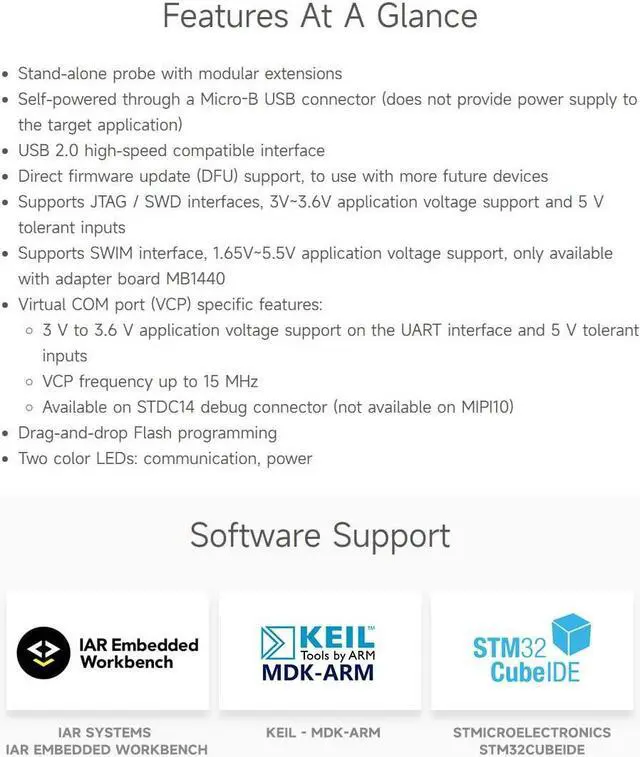

Key Features

Stand-alone probe with modular extensions
Self-powered through a Micro-B USB connector (does not provide power supply to the target application)
USB 2.0 high-speed compatible interface
Direct firmware update (DFU) support to use with more future devices
JTAG / serial wire debugging (SWD) specific features:
*3 V to 3.6 V application voltage support and 5 V tolerant inputs

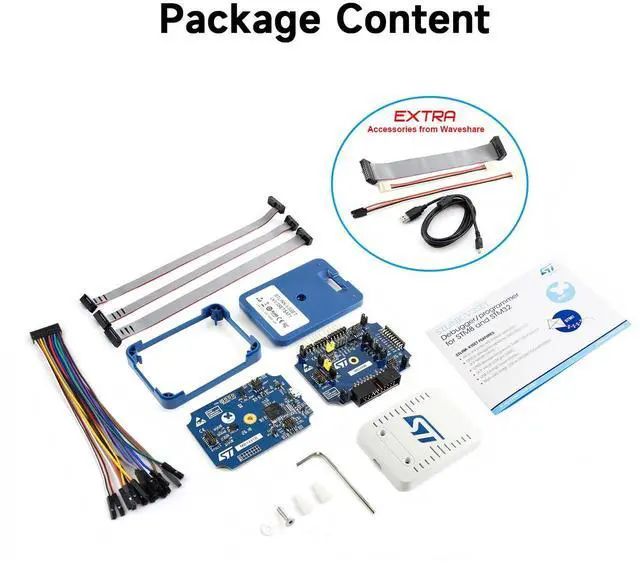

*Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch)
*Flat cable for 20-pin JTAG/SWD ( 2.54 mm pitch) (extra free cable from Waveshare)
*SWD and serial wire viewer (SWV) communication support
SWIM specific features (only available with adapter board MB1440):
* 1.65 V to 5.5 V application voltage support
*SWIM header ( 2.54 mm pitch)
*SWIM cables with dual 4-pin connectors / 4-pin connector to separated pins ( 2.54 mm pitch) (extra free cables from Waveshare)
*SWIM low-speed and high-speed modes support
Virtual COM port (VCP) specific features:
*3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
*VCP frequency up to 15 MHz
*Available on STDC14 debug connector (not available on MIPI10)
Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
*3 V to 3.6 V application voltage support and 5 V tolerant inputs
*Signals available on adapter board only (MB1440)
*Drag-and-drop Flash programming
*Two color LEDs: communication power

Supported Software

STM32CubeProgrammer/ KEIL RVMDK/ IAR EWARM/ GCC-based IDEs

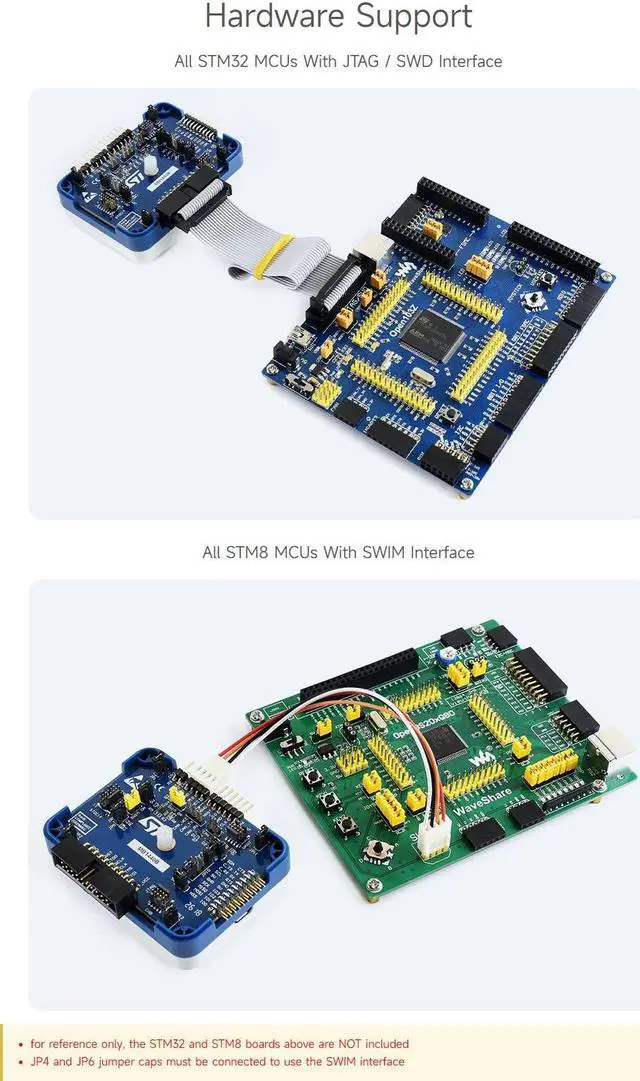

Supported Devices

All STM8 MCUs with SWIM interface/All STM32 MCUs with JTAG / SWD interface
