waveshare ESP32-S3 Development Board with 1.28inch Round Touch LCD, Accelerometer and Gyroscope Sensor, 240×240 Pixel 65K Color RGB Color Round Display, Lead to 6 x GPIO Pins, Type-C Connector

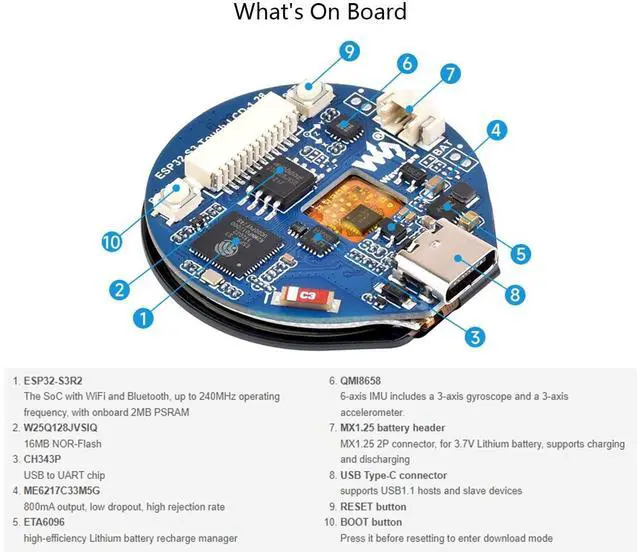

- ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed with onboard onboard 1.28inch capacitive touch display,recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.
- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip .

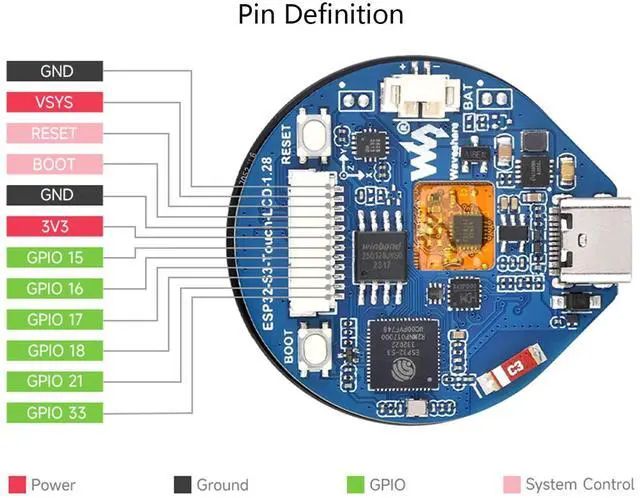

- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture. Onboard 3.7V recharge/discharge header and 6 × GPIO pins via SH1.0 connector. Type-C connector, keeps it up to date, easier to use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

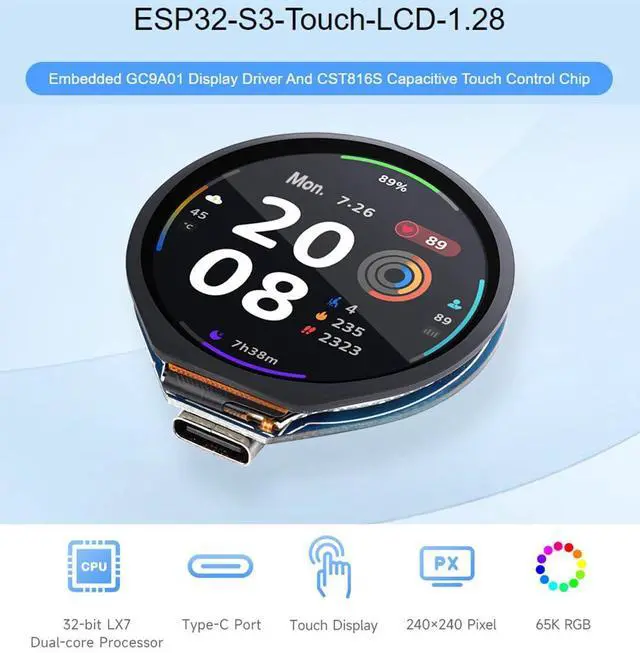

ESP32-S3 Development Board, with 1.28 inch Round Touch LCD, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip
Features
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.28 inch capacitive touch display, 240×240 resolution, 65K color Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture Onboard 3.7V recharge/discharge header and 6 × GPIO pins via SH 1.0 connector Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions Small size, touch

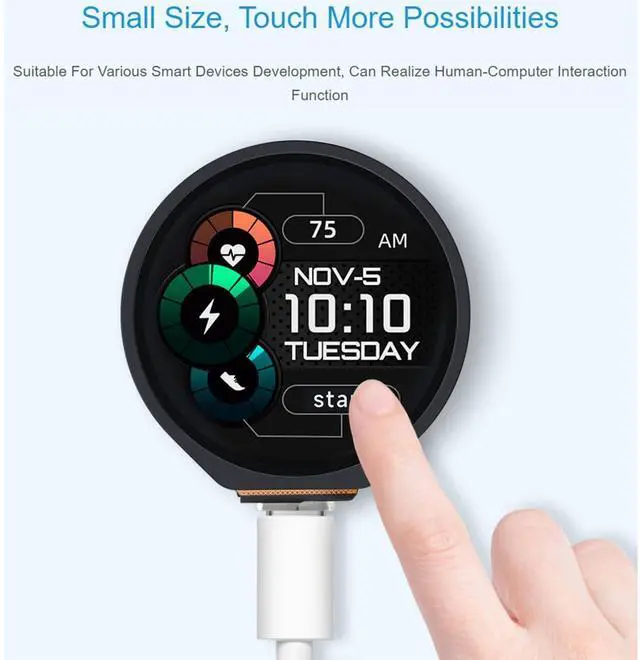

more possibilities: suitable for various smart devices development, can realize human-computer interaction function
Package Content
ESP32-S3-Touch-LCD- 1.28 x1
Features
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.28 inch capacitive touch display, 240×240 resolution, 65K color Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture Onboard 3.7V recharge/discharge header and 6 × GPIO pins via SH 1.0 connector Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions Small size, touch
more possibilities: suitable for various smart devices development, can realize human-computer interaction function
Package Content
ESP32-S3-Touch-LCD- 1.28 x1
