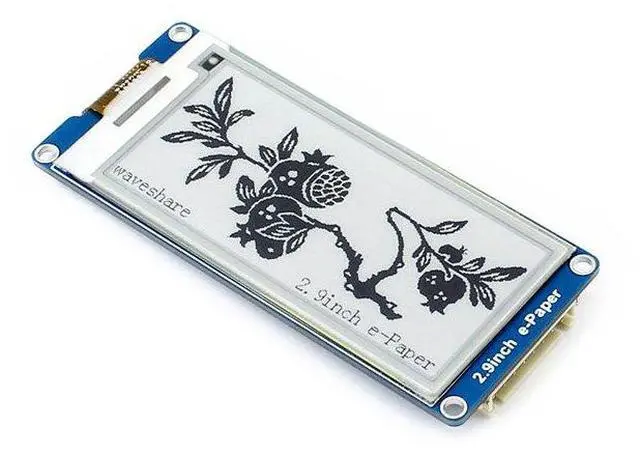

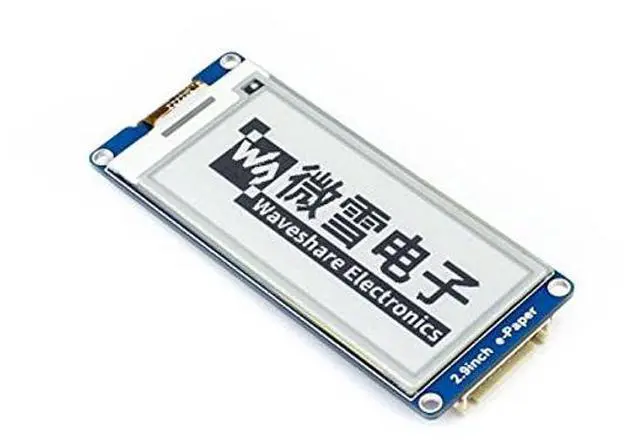

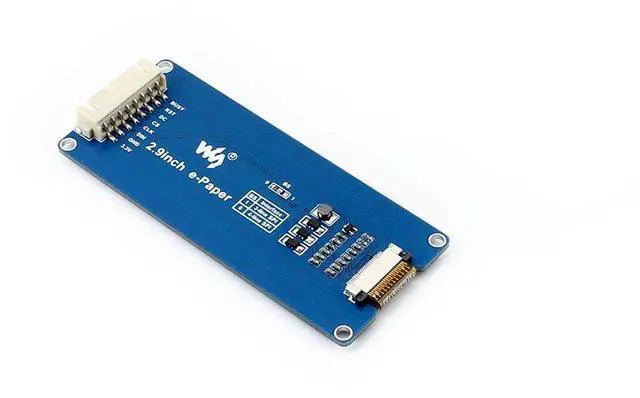

296x128 Resolution 2.9 Inch E-Paper Display Panel Module 3.3v E-Ink Electronic Screen SPI Interface with Embedded Controller Support Partial Refresh for Raspberry Pi/Arduino/Nucleo/Jetson Nano
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
This is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports
Partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice
for applications such as shelf label, industrial instrument, and so on.
Operating voltage: 3.3 V/5 V.
Interface: 3-wire SPI, 4-wire
SPI Outline dimensions: 89.5 mm x 38 mm.
Display size: 66.89 mm x 29.05 mm.
Dot pitch: 0.138 × 0.138.
Resolution: 296 ×
128.
Display colour: black, white.
Grey level:
2.
Partial refresh time: 0.3 s.
Full refresh time: 2s.
Refresh power: 26.4 mW (typ. )
Standby power: <0.017mW. Viewing angle: > 170°.
Package includes:

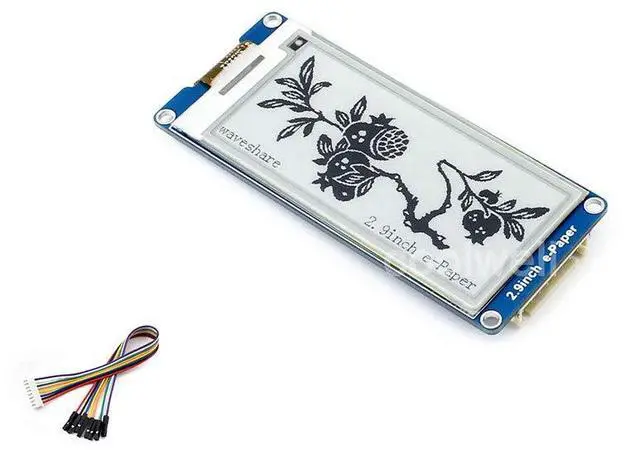

1. 1 x 2.9 inch e-paper module.
2. PH 2.0 20 cm 8 pin x 1.
100% original, offer technical support!
This is an E-Ink display module, 2.9 inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports
Partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice
for applications such as shelf label, industrial instrument, and so on.
Specifications
:Operating voltage: 3.3 V/5 V.
Interface: 3-wire SPI, 4-wire
SPI Outline dimensions: 89.5 mm x 38 mm.
Display size: 66.89 mm x 29.05 mm.
Dot pitch: 0.138 × 0.138.
Resolution: 296 ×
128.
Display colour: black, white.
Grey level:
2.
Partial refresh time: 0.3 s.
Full refresh time: 2s.
Refresh power: 26.4 mW (typ. )
Standby power: <0.017mW. Viewing angle: > 170°.
Package includes:
1. 1 x 2.9 inch e-paper module.
2. PH 2.0 20 cm 8 pin x 1.
100% original, offer technical support!
