$66.99
Meet Your Seller

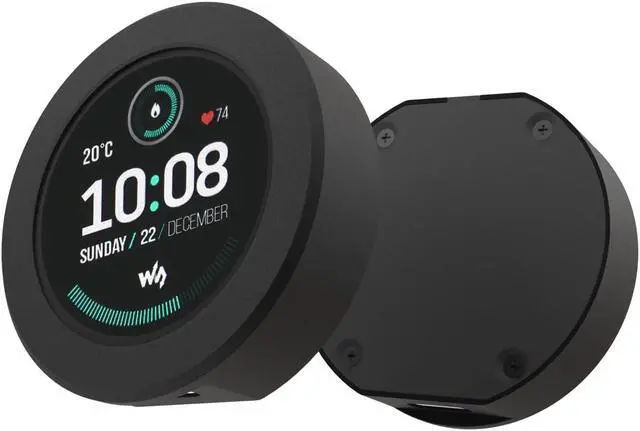

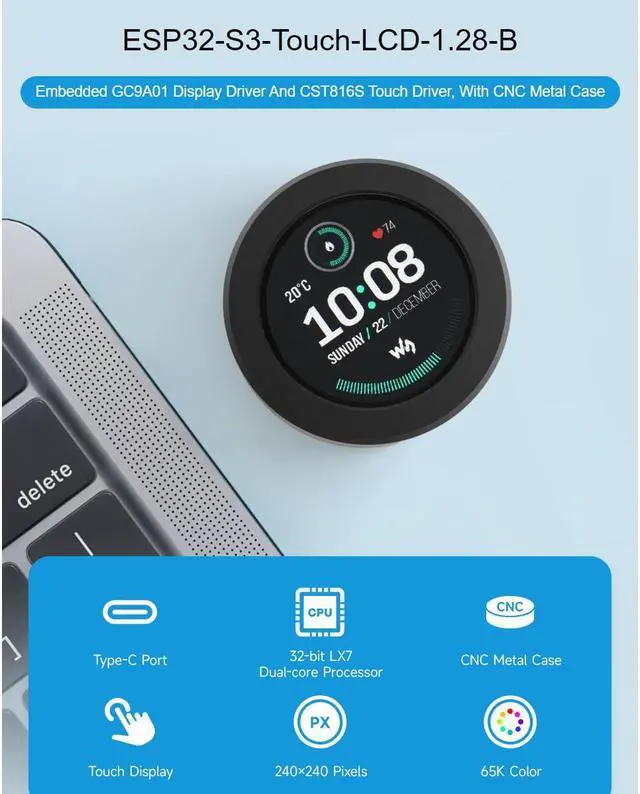

waveshare ESP32-S3 Development Board Onboard 1.28inch Round Touch LCD Display with CNC Metal Case,Support 2.4 GHz Wi-Fi and Bluetooth 5(LE),Embedded GC9A01 Driver and CST816S Touch Control Chip
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.Type-C connector, keeps it up to date, easier to use

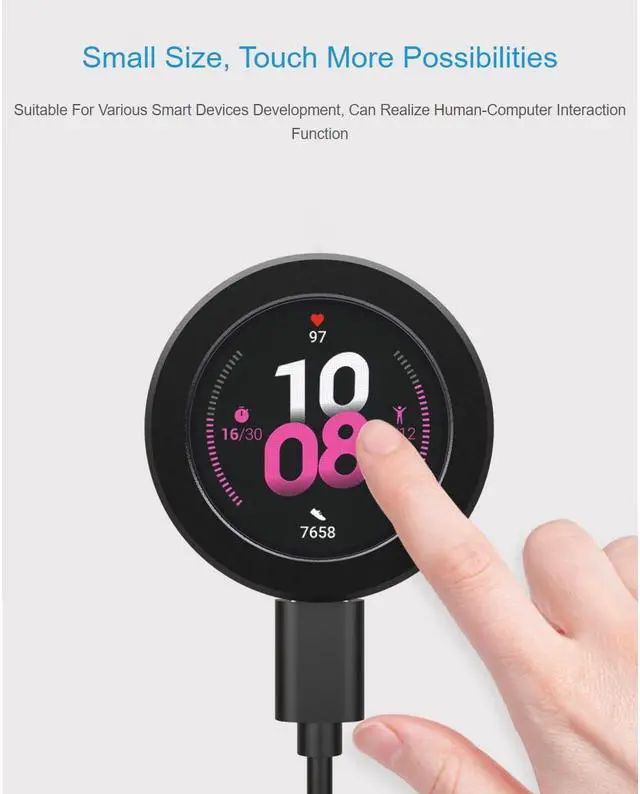

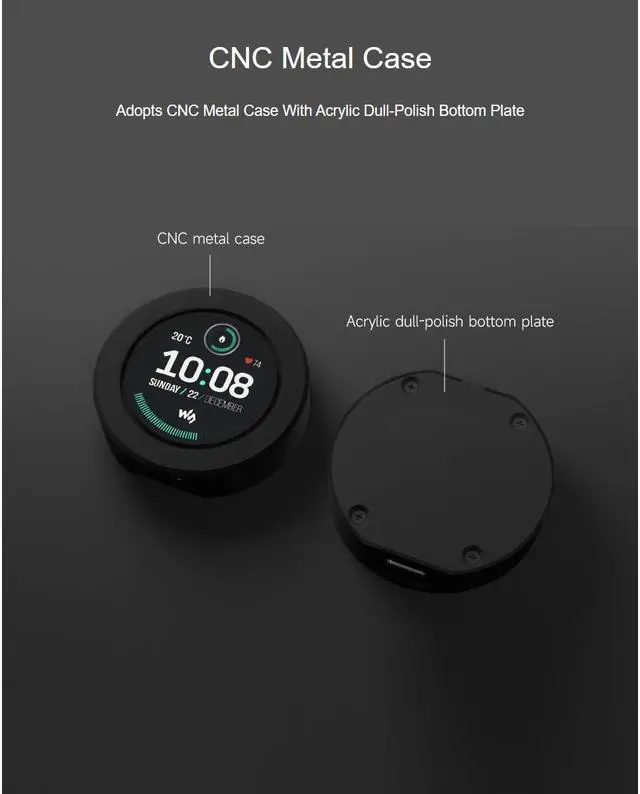

- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color.Adopts CNC metal case with Acrylic dull-polish bottom plate.Adapting 6 × GPIO pins via SH1.0 connector
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V MX1.25 lithium battery recharge/discharge header
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

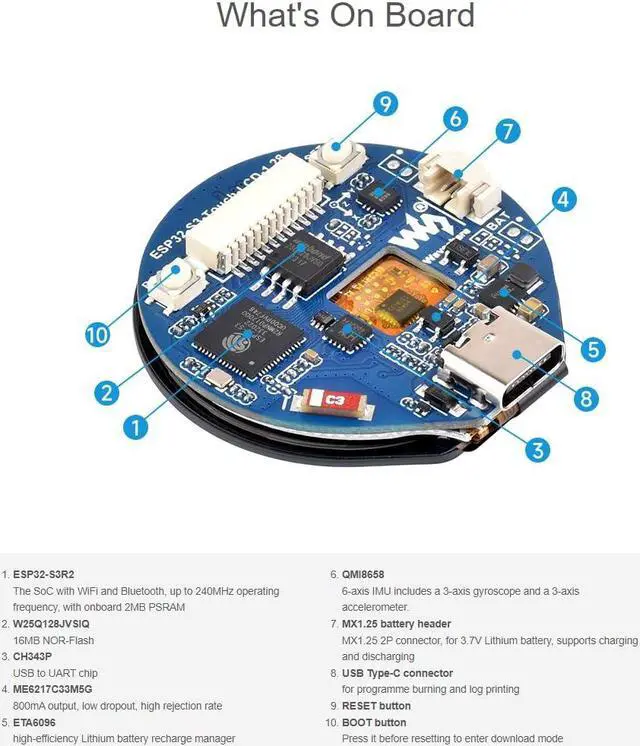

Overview Introduction The ESP32-S3-Touch-LCD- 1.28 -B (hereinafter referred to as "the development board") is a low-cost, high-performance microcontroller development board designed by Waveshare. It features a 1.28 -inch capacitive touch LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), and other peripherals. The board is based on the ESP32-S3R2, which is a system-on-chip (SoC) integrated with low-power Wi-Fi and BLE 5.0. It also includes an external 16MB Flash and 2MB PSRAM. The SoC features hardware encryption accelerators, RNG, HMAC, and digital signature modules, meeting the security requirements of the Internet of Things (IoT).
Its various low-power operating modes are suitable for power requirements in IoT, mobile devices, wearable electronics, smart home applications, and other scenarios. Parameters LCD Parameters Touch ChipCST816S Display ChipGC9A01A Resolution240 (H) RGB x 240 (V) Display PanelIPS Touch InterfaceI2C Display InterfaceSPI Display Size 32.4 mm Pixel Size 0.135H x 0.135V mm IMU Parameters SensorQMI8658 Accelaeration Parameters Resolution: 16-bit
Range (Optional): 2, 4, 8, 16g
Gyrometer Resolution: 16-bit
Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/sec Package Content ESP32-S3-Touch-LCD- 1.28 x1 SH 1.0 12PIN cable x1 Screwdriver x1
Its various low-power operating modes are suitable for power requirements in IoT, mobile devices, wearable electronics, smart home applications, and other scenarios. Parameters LCD Parameters Touch ChipCST816S Display ChipGC9A01A Resolution240 (H) RGB x 240 (V) Display PanelIPS Touch InterfaceI2C Display InterfaceSPI Display Size 32.4 mm Pixel Size 0.135H x 0.135V mm IMU Parameters SensorQMI8658 Accelaeration Parameters Resolution: 16-bit
Range (Optional): 2, 4, 8, 16g
Gyrometer Resolution: 16-bit
Range (Optional): 16, 32, 64, 128, 256, 512, 1024, 2048/sec Package Content ESP32-S3-Touch-LCD- 1.28 x1 SH 1.0 12PIN cable x1 Screwdriver x1
