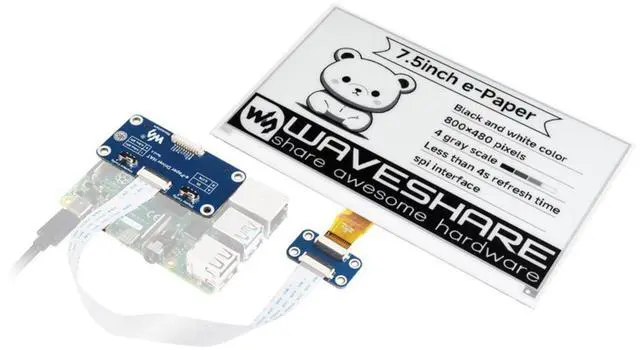

7.5inch E-Ink Display HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero 2W/Pico/Pico W/Pico 2/Pico 2W/Jetson Nano, 800×480 Resolution SPI Interface,Black White Two-Color SPI Interface E-Paper

800×480, 7.5 inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

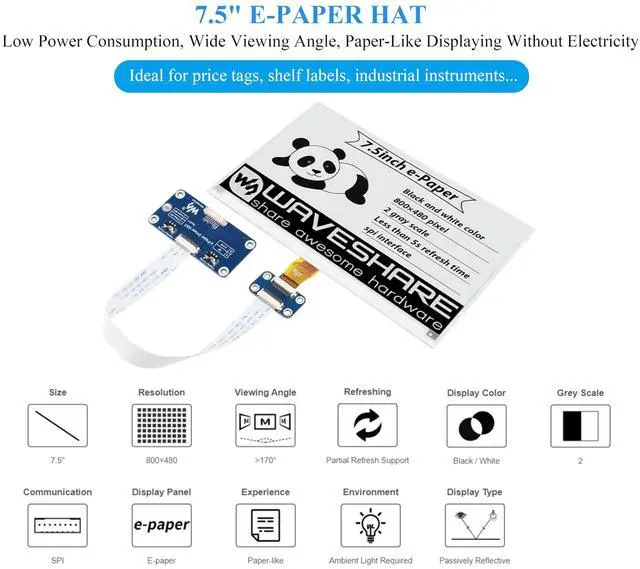

This is an E-Ink display HAT for Raspberry Pi, 7.5 inch, 800×480 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

1. No backlight, keeps displaying last content for a long time even when power down

2. Ultra low power consumption, basically power is only required for refreshing

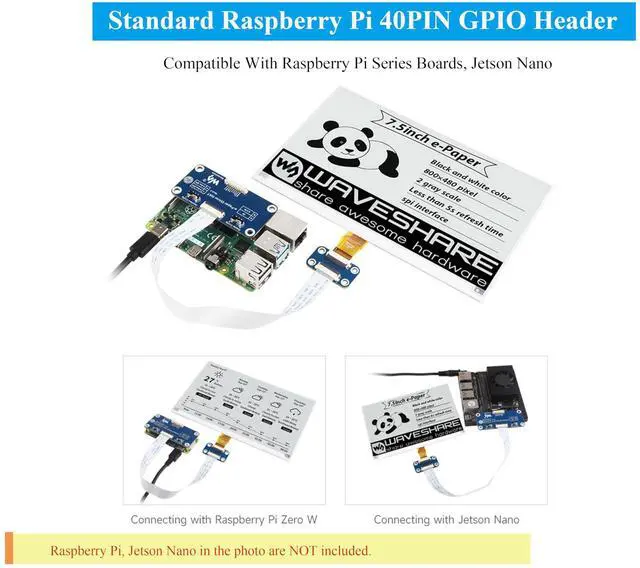

3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.

5. Onboard voltage translator, compatible with 3.3V /5V MCUs

6. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

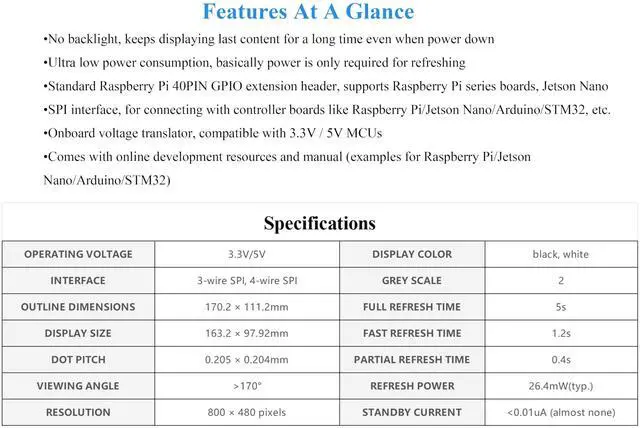

Specifications

1.
Operating voltage: 3.3V ~5V

2.
Interface: SPI

3.
Outline dimension: 170.2 mm × 111.2 mm

4.
Display size: 163.2 mm × 97.92 mm

5.
Dot pitch: 0.205 × 0.204

6.
Resolution: 800×480

7.
Display color: black, white

8.
Grey scale: 2

9.
Full refresh time: 5s

10.
Refresh power: 38mW(typ. )

11.
Standby power: <0.017mW

12.
Viewing angle: >170°

Interface
VCC --- 3.3V ~5V
GND ---Ground
DIN ---SPI MOSI pin
CLK ---SPI SCK pin
CS ---SPI chip selection, low active
DC ---Data/Command selection (high for data, low for command)
RST---External reset, low active
BUSY---Busy status output, low active

Online Development Resources /User Manual: //bit. ly/3FWYfyo

Package Content
7.5 inch e-Paper x1
e-Paper Driver HAT x1
RPi screws pack (2pcs) x1
PH 2.0 20cm x1
