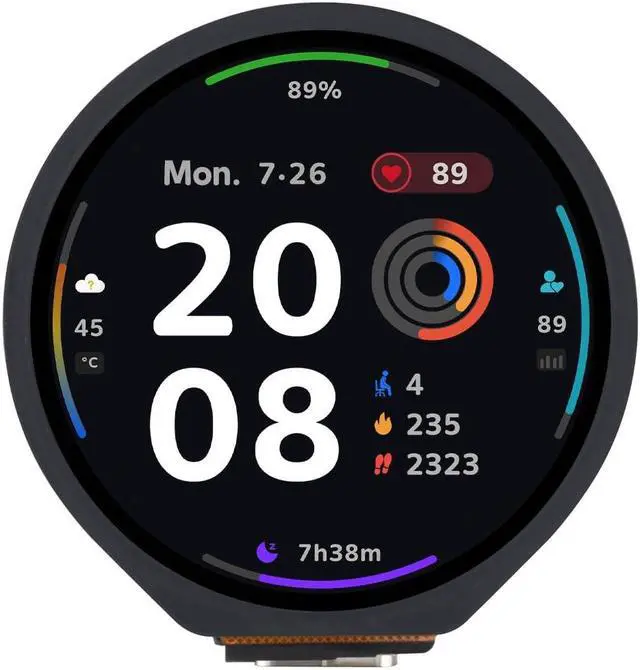

ESP32-S3 Development Board Onboard 1.28inch Round Touch LCD Display,32-bit LX7 Dual-core Processor,Support 2.4 GHz Wi-Fi and Bluetooth 5(LE) ,Embedded GC9A01 Driver And CST816S Touch Control Chip
- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color.Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.Type-C connector, keeps it up to date, easier to use
- Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

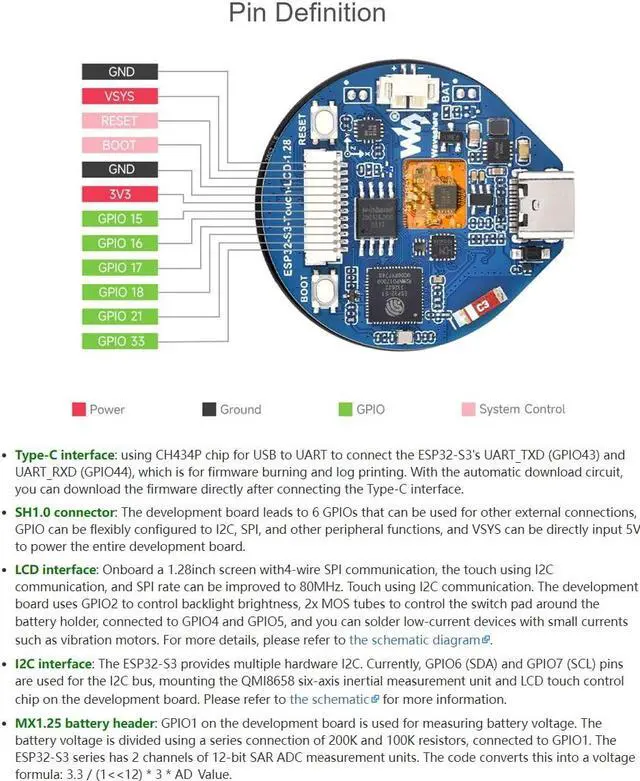

- Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector.
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

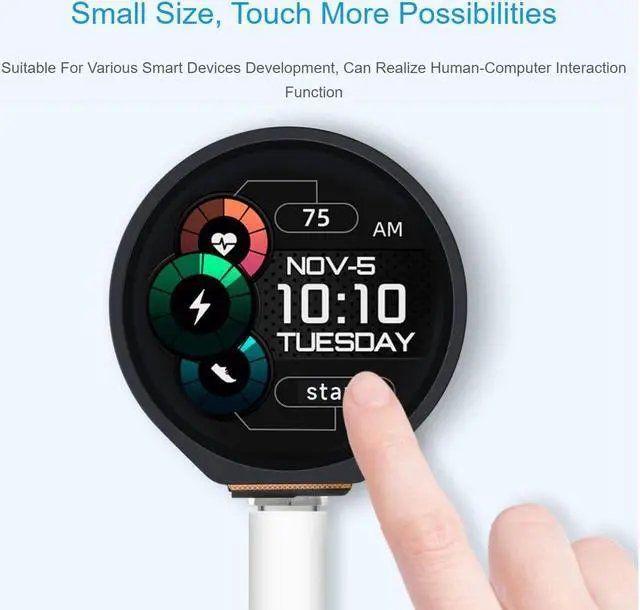

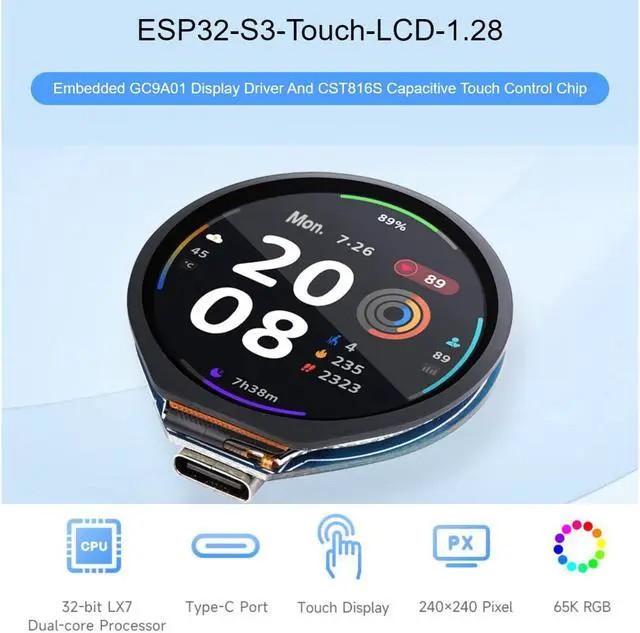

ESP32-S3 Development Board with 1.28 inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor Features ESP32-S3-Touch-LCD- 1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28 inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly. ESP32-S3-Touch-LCD- 1.28 1. Embedded GC9A01 Display Driver And CST816S Capacitive Touch Control Chip 2. Small Size, Touch More Possibilities Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function What's On Board 1.

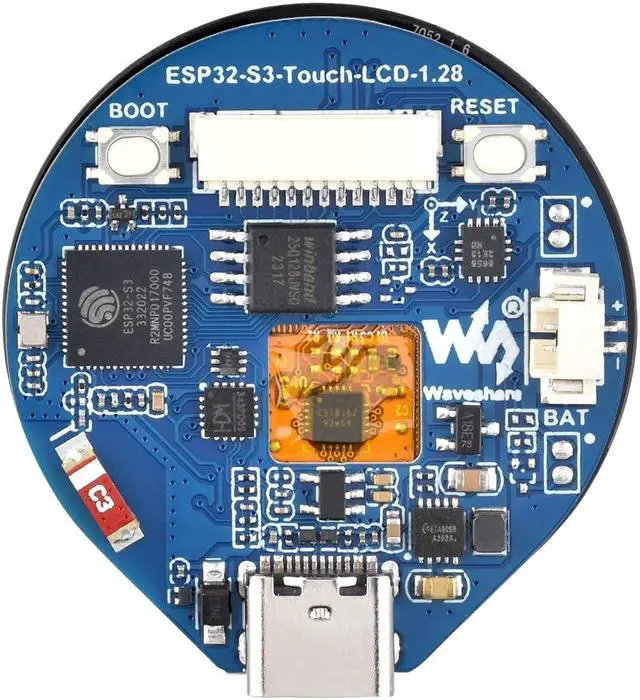

ESP32-S3R2 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM 2. W25Q128JVSIQ 16MB NOR-Flash 3. CH343P USB to UART chip 4. ME6217C33M5G 800mA output, low dropout, high rejection rate 5. ETA6096 high-efficiency Lithium battery recharge manager 6. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer. 7. MX 1.25 battery header MX 1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging 8. USB Type-C connector supports USB 1.1 hosts and slave devices 9. RESET button 10.
BOOT button Press it before resetting to enter download mode Package Content ESP32-S3-Touch-LCD- 1.28 x1 Note Development Resources is provided, please contact us if you have any problem.
ESP32-S3R2 The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM 2. W25Q128JVSIQ 16MB NOR-Flash 3. CH343P USB to UART chip 4. ME6217C33M5G 800mA output, low dropout, high rejection rate 5. ETA6096 high-efficiency Lithium battery recharge manager 6. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer. 7. MX 1.25 battery header MX 1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging 8. USB Type-C connector supports USB 1.1 hosts and slave devices 9. RESET button 10.
BOOT button Press it before resetting to enter download mode Package Content ESP32-S3-Touch-LCD- 1.28 x1 Note Development Resources is provided, please contact us if you have any problem.
