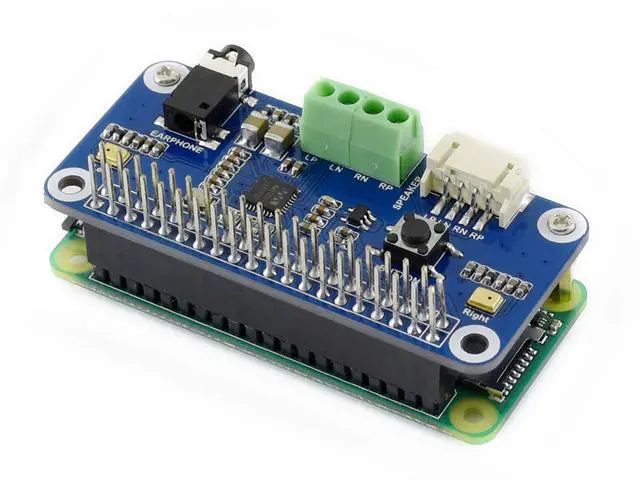

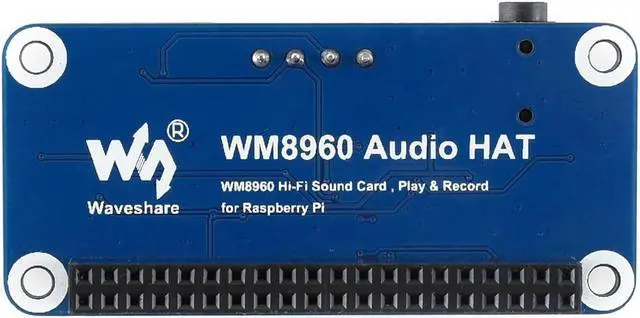

Waveshare WM8960 Hi-Fi Sound Card HAT Stereo CODEC Playing and Recording I2S Interface for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

Overview

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording,
what's more, it can directly drive speakers to play music.

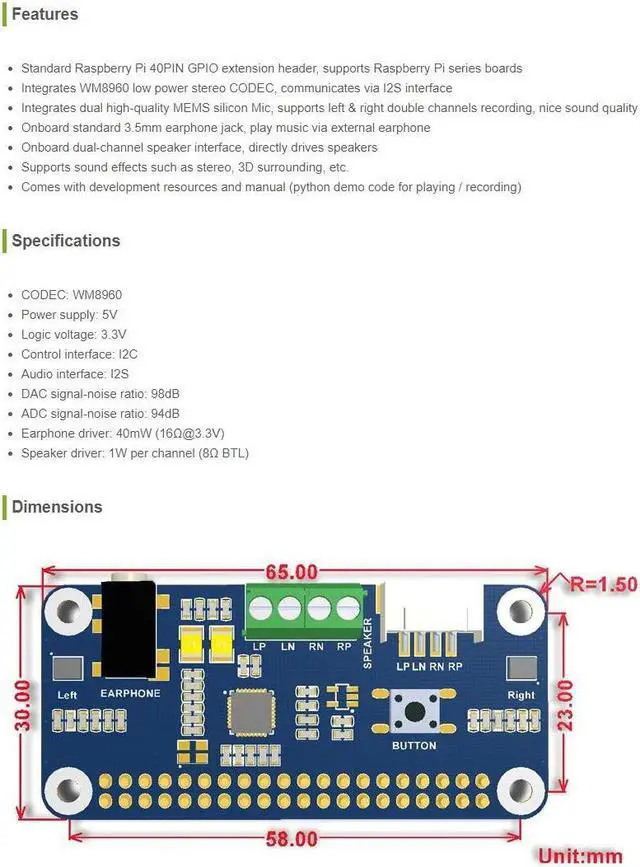

Features:

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

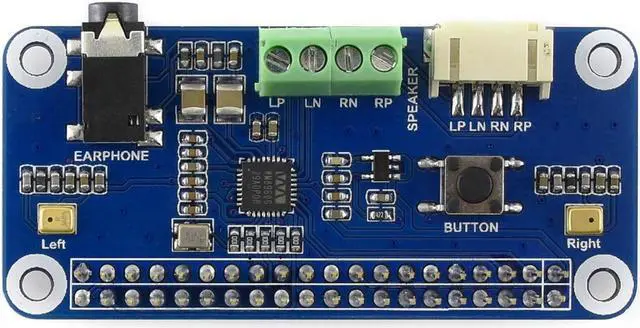

Integrates WM8960 low power stereo CODEC, communicates via I2S interface
Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
Onboard standard 3.5 mm earphone jack, play music via external earphone

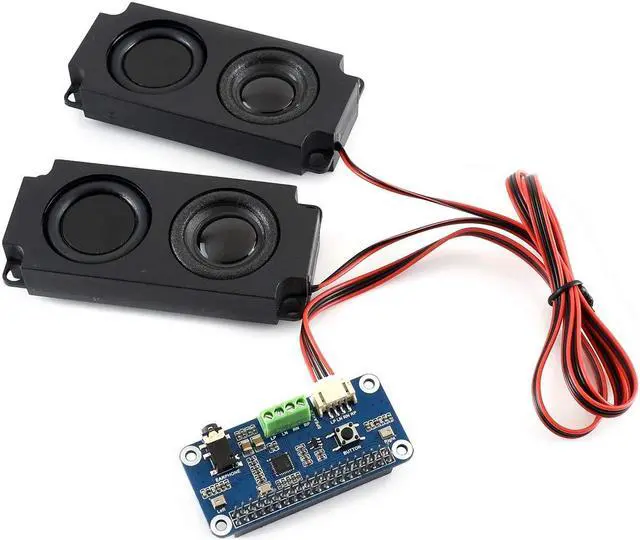

Onboard dual-channel speaker interface, directly drives speakers
Supports sound effects such as stereo, 3D surrounding, etc.
Comes with development resources and manual (python demo code for playing / recording)

Specifications

:

Codec: WM8960
Power supply: 5 V.
Logic voltage: 3.3 V.
Control interface: I2C.
Audio interface: I2S.
DAC signal-noise ratio: 98 dB.
ADC signal noise ratio: 94 dB.
Earphone driver: 40mW (16@ 3.3V ).
Speaker driver: 1W per channel (8 BTL).

Development Resources
Wiki: www. waveshare. com/wiki/WM8960_Audio_HAT? Amazon

Package contents:

Note: Raspberry Pi in the photos is NOT included.
WM8960 Audio Hat x1
1 x 8 5 W speaker.
RPi screws pack (2pcs) x1
