$102.99
Meet Your Seller

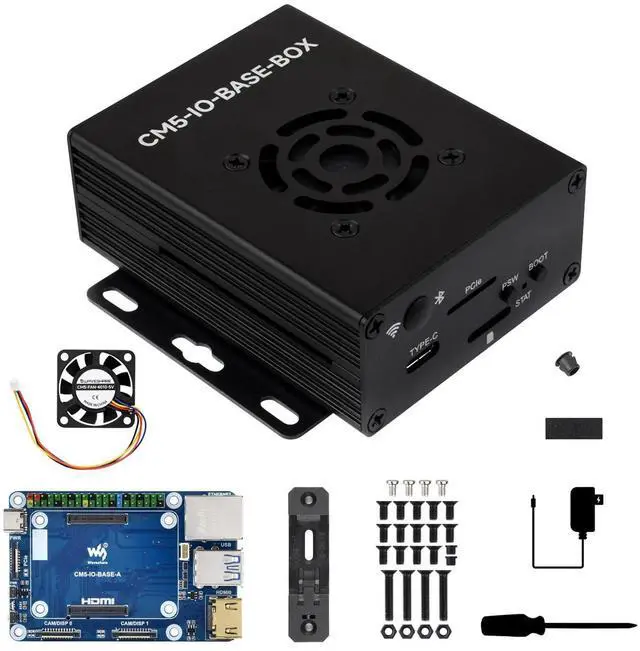

Waveshare Mini Base Board, Mini-WaComputer Designed for Raspberry Pi Compute Module 5 (NOT Included), Including Metal Case and Power Supply

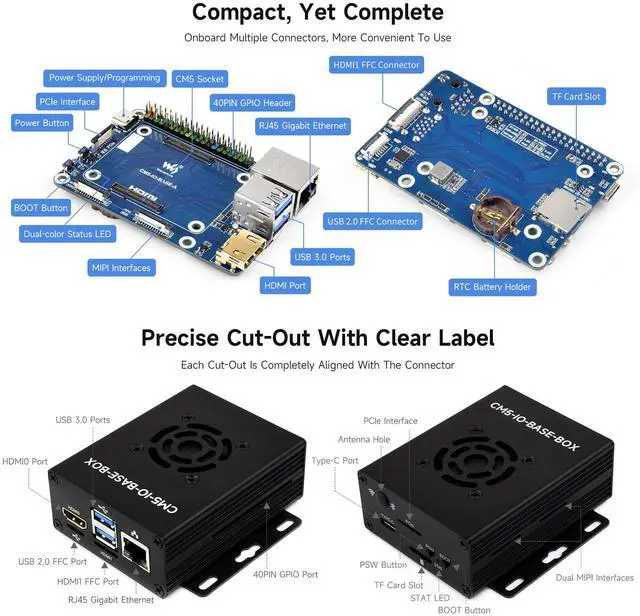

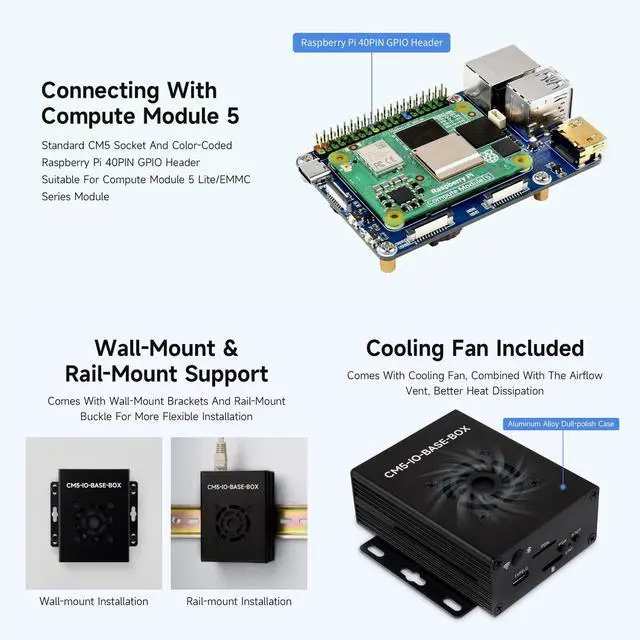

- Compute Module Compatibility & Connectors: The base board is designed to support all variants of the Raspberry Pi Compute Module 5 (CM5) and features a 16PIN PCIe Gen2/3 x1 connector, as well as a Raspberry Pi 40PIN GPIO header for versatile expansion.
- Networking & USB: Equipped with a Gigabit Ethernet RJ45 connector for fast networking and dual USB 3.2 Gen1 Type-A ports. Additionally, it includes two USB 2.0 ports through a 6PIN 1mm FFC connector for additional peripherals.
- Display & Video: Dual 4-lane MIPI interfaces (each with a 22pin 0.5mm FFC connector) and two HDMI ports (one via FFC connector) support dual 4K video outputs for high-quality multimedia performance.
- Storage & Power: Includes a TF card slot for the Compute Module 5 Lite variant (without eMMC) and provides a stable 5V, 5A DC power input. The board also features onboard EEPROM and an encryption chip for enhanced functionality and security.
- Dimensions & Cooling: The base board measures 85 × 56mm,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare Mini Base Board, Mini-WaComputer designed for Raspberry Pi Compute Module 5 (NOT INCLUDED), Onboard EEPROM And Encryption Chip, Including Metal Case and Power Supply
