waveshare HRB8825 Stepper Motor HAT for Raspberry Pi and Jetson Nano, Drives Two Stepper Motors, Up to 1/32 Microstepping User for 3D Printer Sculpturing Machine Mechanical Arm
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use.
- 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step. Adjustable motor drive current via potentiometer, maximum 2.5A current output.
- Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard multi connector options for stepper motors in different specifications.

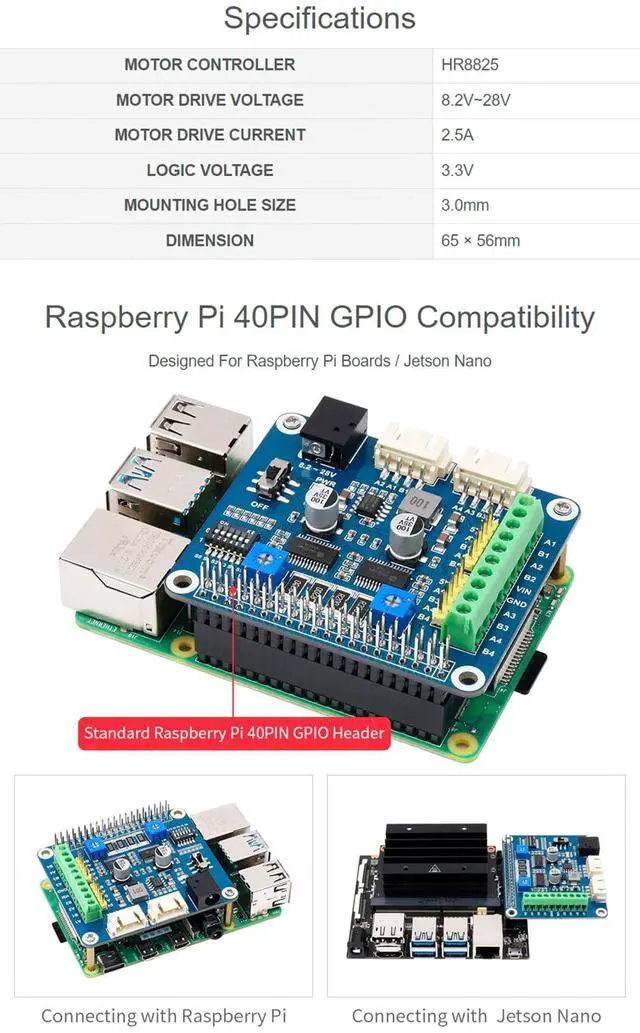

- Specifications: Motor controller:HR8825. Motor drive voltage:8.2V~28V. Motor drive current:2.5A. Logic voltage:3.3V. Mounting hole size:3.0mm. Dimension:65 x 56mm.
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use

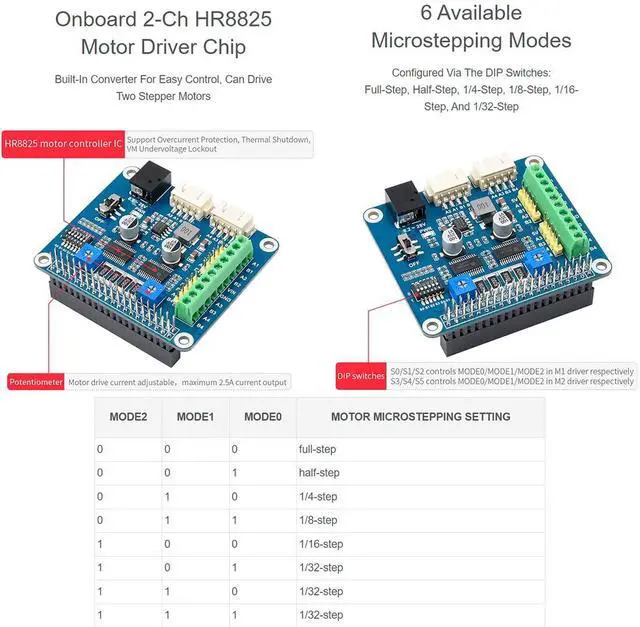

6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
Integrates 5V regulator, allows providing power to Raspberry Pi

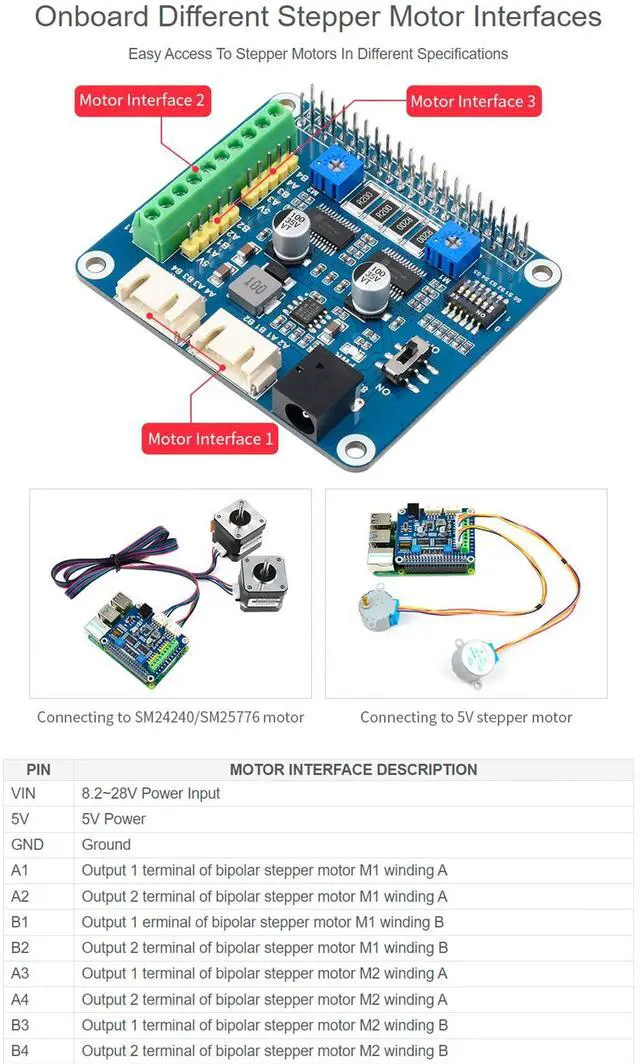

Onboard multi connector options for stepper motors in different specifications
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Motor controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.
Dimension: 65 x 56mm.
Package Content

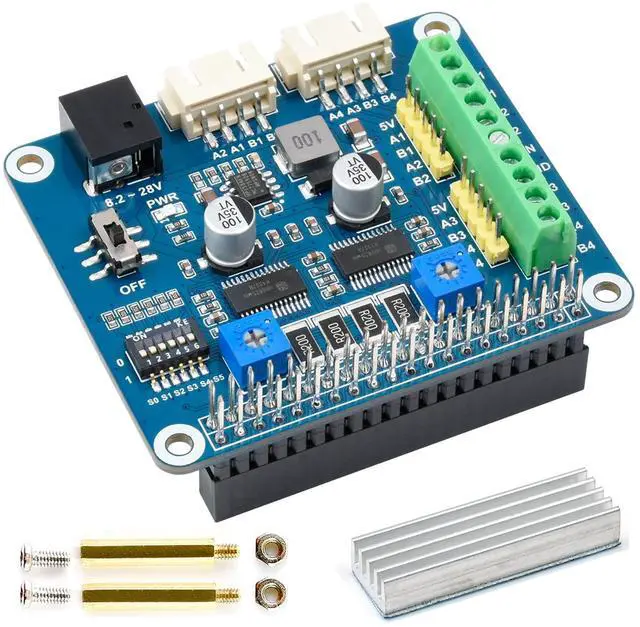

Stepper Motor HAT (B) x1
RPi screws pack (2pcs) x1
Aluminum heatsink x1
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable motor drive current via potentiometer, maximum 2.5A current output
Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
Integrates 5V regulator, allows providing power to Raspberry Pi
Onboard multi connector options for stepper motors in different specifications
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Specifications
:Motor controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.
Dimension: 65 x 56mm.
Package Content
Stepper Motor HAT (B) x1
RPi screws pack (2pcs) x1
Aluminum heatsink x1
