ESP32-P4-WIFI6 Development Board Adopts ESP32-P4 Module, Onboard ESP32-C6 and 32MB Nor Flash, Support Wi-Fi 6 and Bluetooth 5 / BLE, with MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Microphone, etc.
- ESP32-P4-WIFI6 multimedia development board adopts ESP32-P4, with a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, integrated ESP32-C6, supports Wi-Fi 6/BLE 5 wireless connections and other functions through SDIO
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM, 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

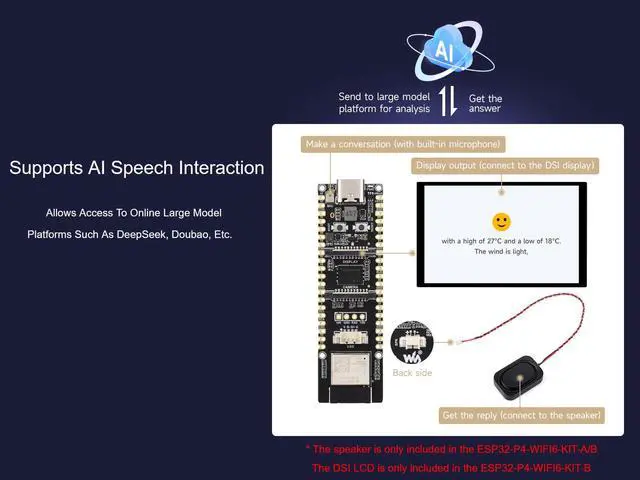

- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder. Supports AI speech interaction
- Rich human-machine interfaces, as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, speaker header, etc. Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs. Built-in 40PIN GPIO expansion interface
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Per
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

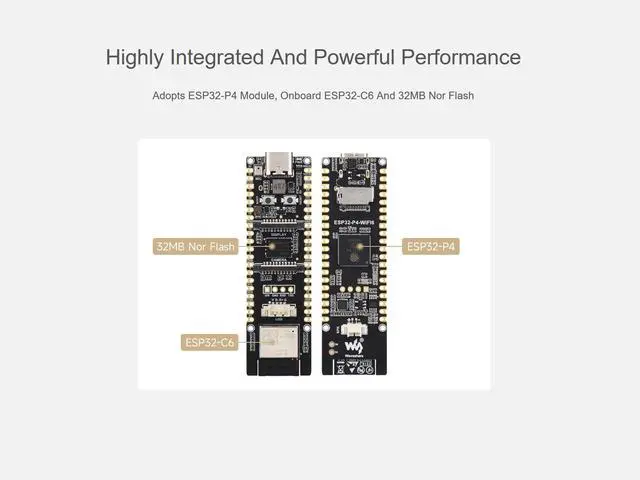

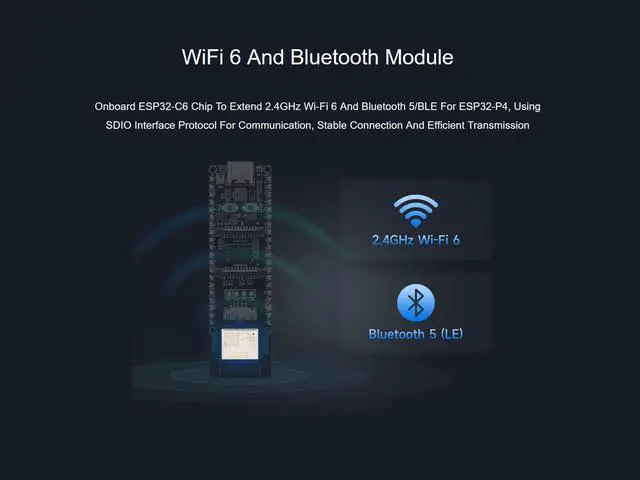

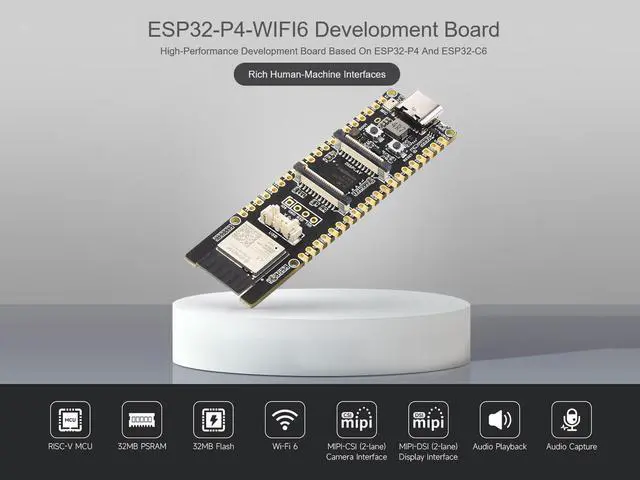

ESP32-P4-WIFI6 development board is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs
The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H. 264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Uni. The ESP32-P4-WIFI6 meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
Features
High-performance MCU with RISC-V 32-bit dual-core and single-core processors
128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-RAM, 8 KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc.
Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Package Content

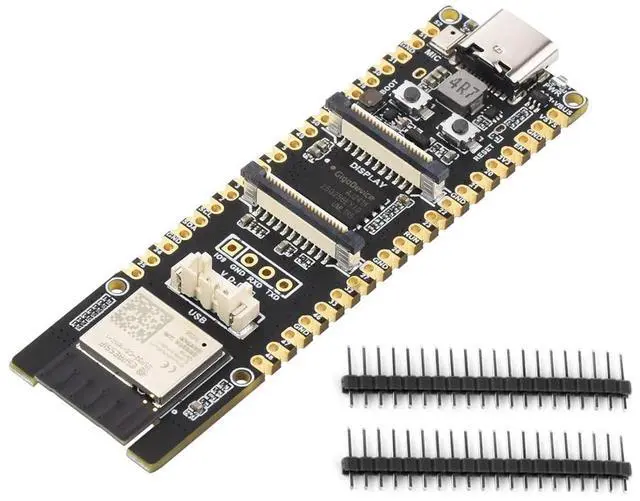

ESP32-P4-WIFI6 x1
20PIN header x2
NOTE: Online Development Resources and Technical Support are provided, feel free to contact us if you need!
ESP32-P4-WIFI6 development board is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs
The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H. 264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Uni. The ESP32-P4-WIFI6 meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
Features
High-performance MCU with RISC-V 32-bit dual-core and single-core processors
128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-RAM, 8 KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc.
Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Package Content
ESP32-P4-WIFI6 x1
20PIN header x2
NOTE: Online Development Resources and Technical Support are provided, feel free to contact us if you need!
