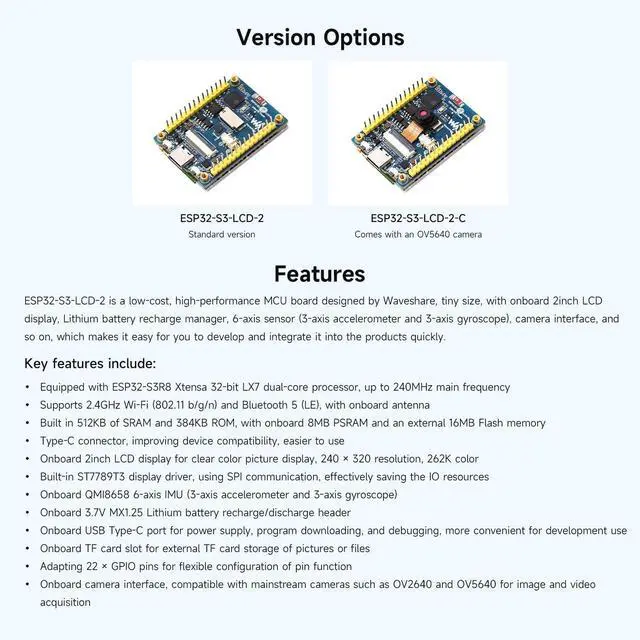

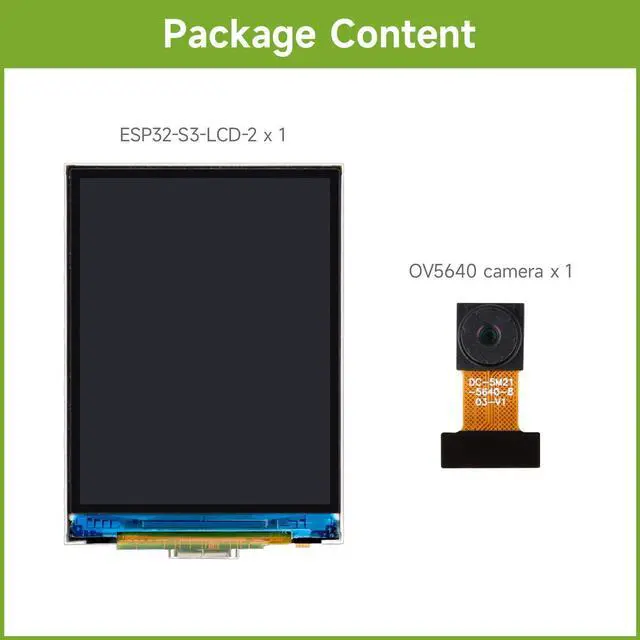

Waveshare 2inch ESP32-S3 Display Development Board, 240x320, IPS, 262K Color, 32-Bit LX7 2-Core Processor, Up to 240MHz Frequency, Support WiFi&BT, Compatible with OV5640 5MP Camera Module(Included)
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna

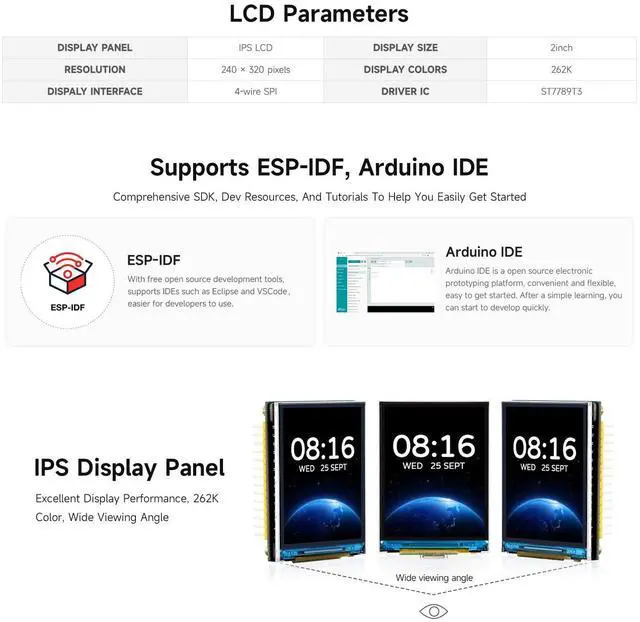

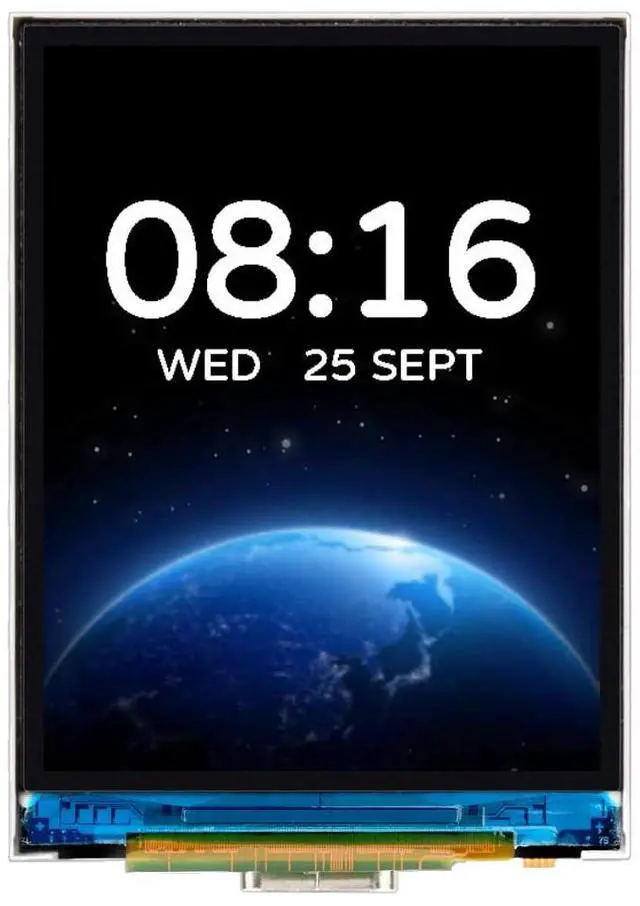

- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use. Onboard 2inch LCD display for clear color picture display, 240 x 320 resolution, 262K color

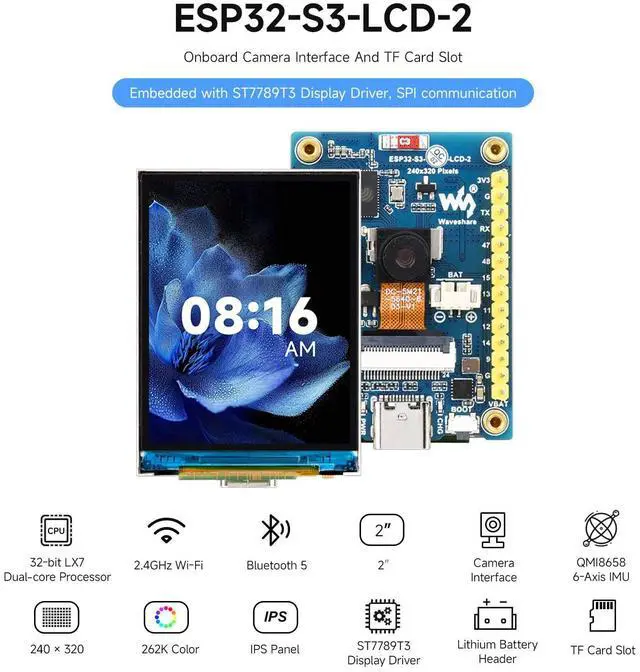

- Built-in ST7789T3 display driver, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope). Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard TF card slot for external TF card storage of pictures or files
- Adapting 22 x GPIO pins for flexible configuration of pin function. Onboard camera interface, compatible with mainstream cameras such as OV2640
+
+
