waveshare ESP32-S3 2inch Capacitive Touch Display Development Board 240×320 Pixels IPS Screen Embedded with ST7789T3 Driver and CST816D Chip,Come with OV5640 Camera,Supports WiFi & Bluetooth

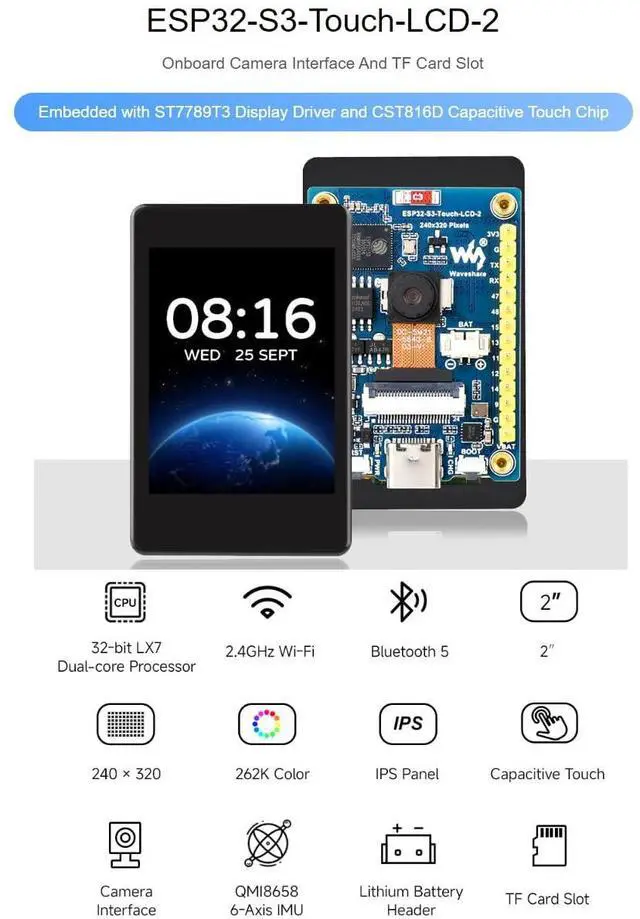

- ESP32-S3-Touch-LCD-2-C,Onboard Camera Interface And TF Card Slot.
- Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Chip

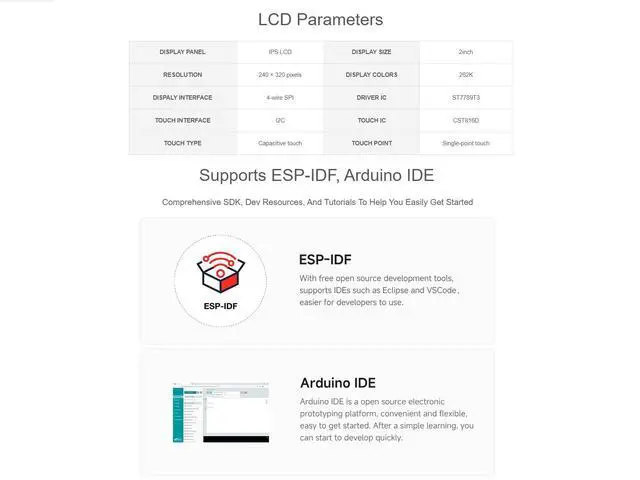

- Supports ESP-IDF, Arduino IDE.Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

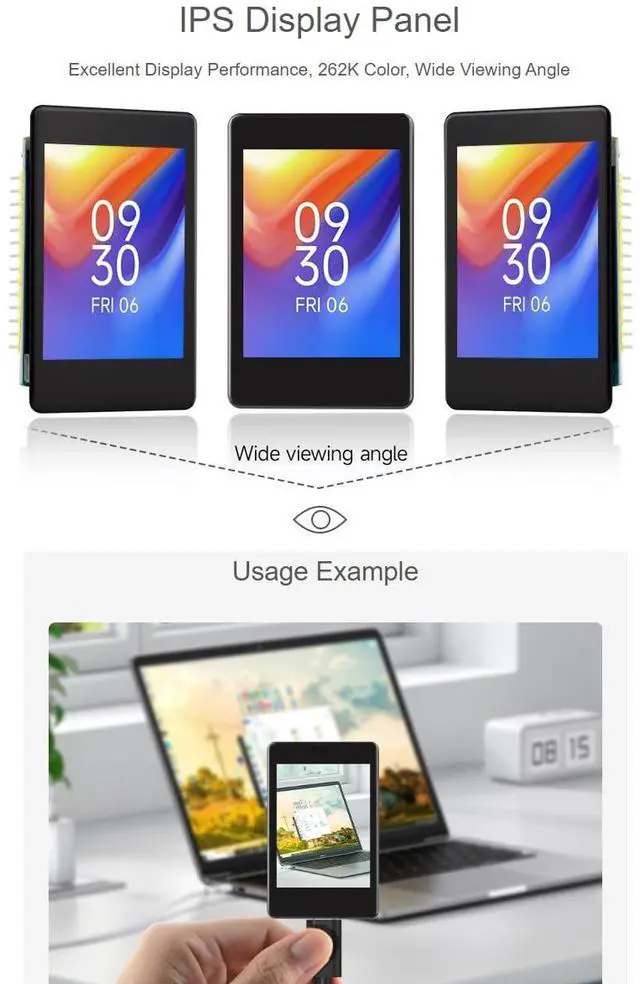

- IPS Display Panel.Excellent Display Performance, 262K Color, Wide Viewing Angle

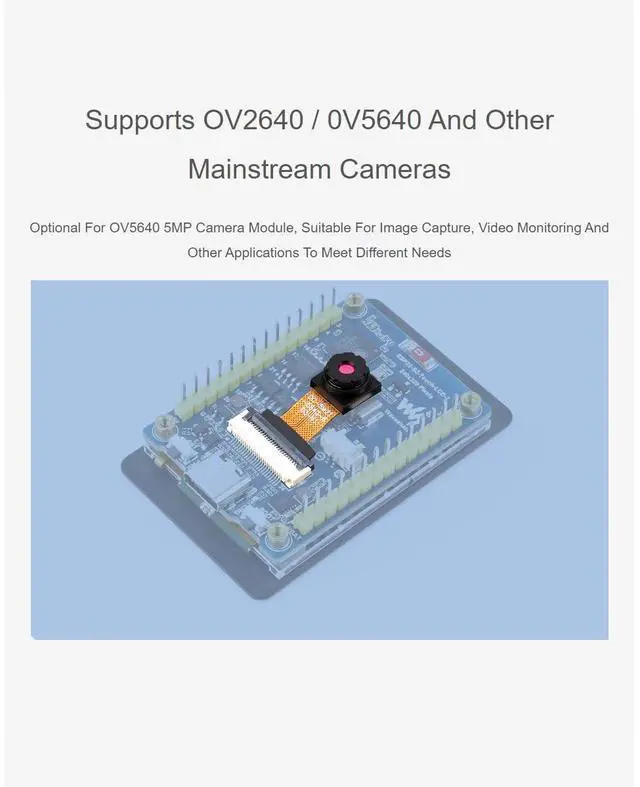

- Supports OV2640 / 0V5640 And Other Mainstream Cameras.Comes with OV5640 5MP Camera Module, Suitable For Image Capture, Video Monitoring And Other Applications To Meet Different Needs
+
+
Overview
Specs
Reviews
ESP32-S3 2inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency,
Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display
Features
ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, Lithium
battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into
the products quickly.
Key features include:
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use
Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color
Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Adapting 22 × GPIO pins for flexible configuration of pin function
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition

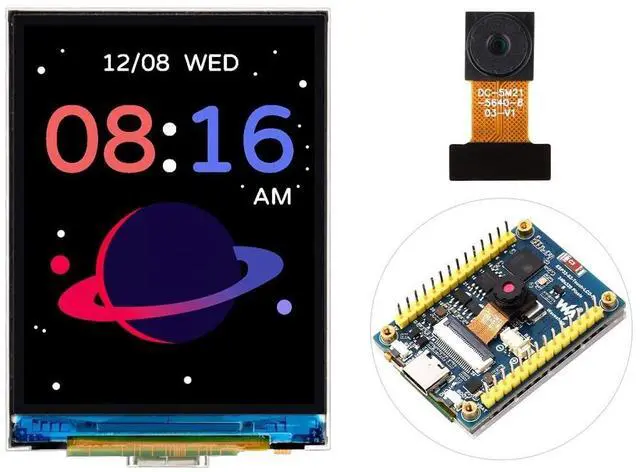

Package Content
ESP32-S3-Touch-LCD-2 x 1 OPTIONS OV5640 camera x 1 FAQ
How to deal with the first compilation of the program being extremely slow?
It's normal for the first compilation to be slow, just be patient.
Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display
Features
ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, Lithium
battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into
the products quickly.
Key features include:
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use
Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color
Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Adapting 22 × GPIO pins for flexible configuration of pin function
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition
Package Content
ESP32-S3-Touch-LCD-2 x 1 OPTIONS OV5640 camera x 1 FAQ
How to deal with the first compilation of the program being extremely slow?
It's normal for the first compilation to be slow, just be patient.
