waveshare Three Color 2.13inch E-Ink Display HAT (B), 212x104 Resolution 3.3V/5V Red Black White E-Paper Display Screen for Raspberry Zero/Zero W/Zero WH/2B/3B/3B+ SPI Interface,Full Refresh

212x104, 2.13 inch E-Ink display HAT for Raspberry Pi, three-color, SPI interface
Overview
This is an E-Ink display HAT for Raspberry Pi, 2.13 inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

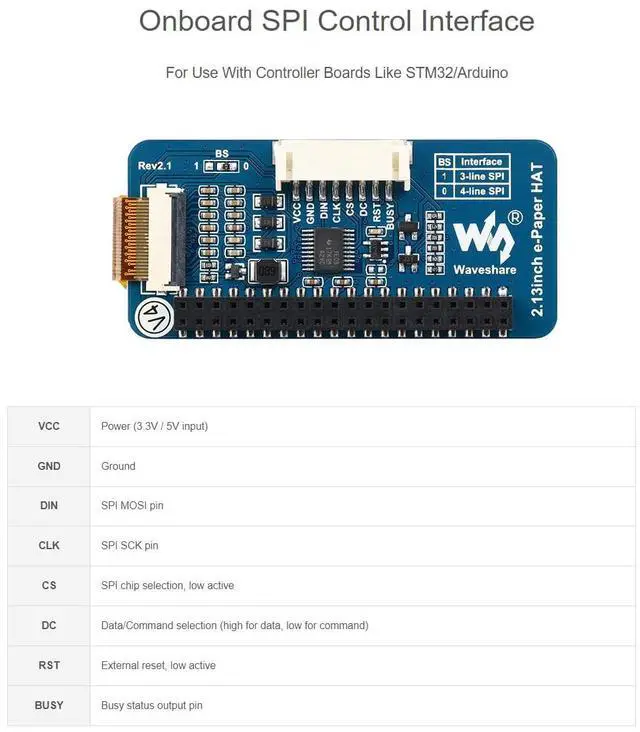

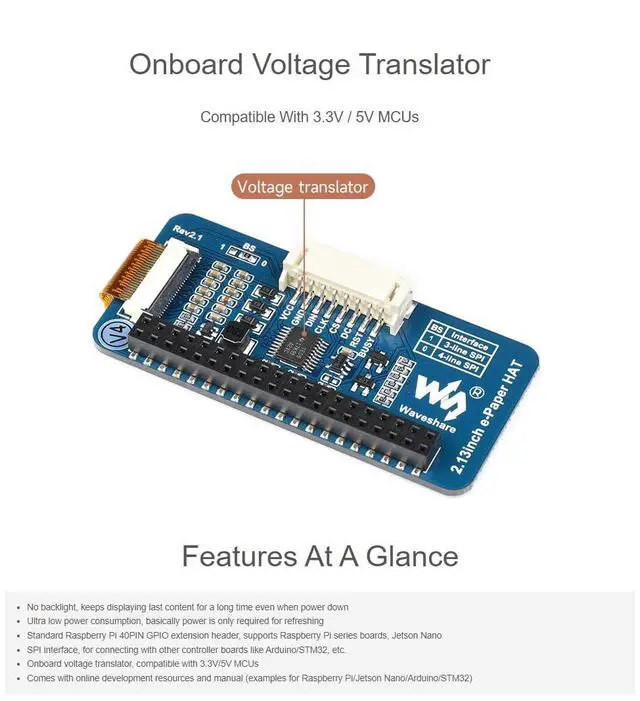

2.13 inch e-Paper HAT (B) Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V /5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
2.13 inch e-Paper HAT (B)

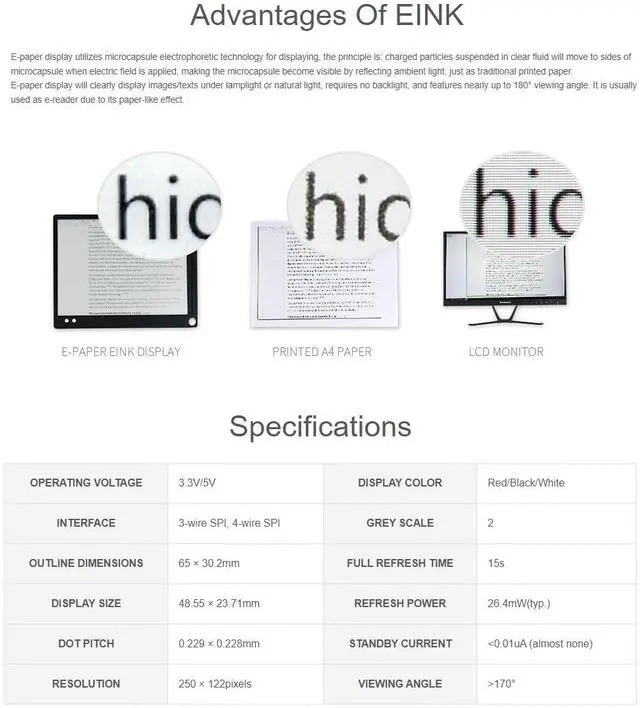

Specifications

Operating voltage: 3.3V /5V
Interface: 3-wire SPI, 4-wire
SPI Outline dimension: 65mm × 30.2 mm
Display size: 23.71 mm × 48.55 mm
Dot pitch: 0.229 × 0.228
Resolution: 212 × 104
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4 mW(typ. )
Standby power: 0.017 mW Viewing angle: 170°

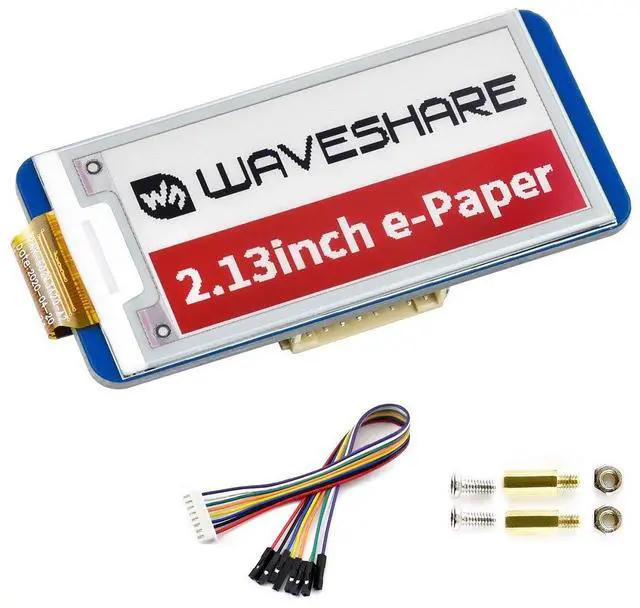

Package Content 2.13 inch e-Paper HAT (B) x1 RPi screws pack (2pcs) x1 PH 2.0 20cm 8Pin x1
Note: Original from Waveshare, and more resources you may need, please contact us via Amazon message firstly to get.
