2-Channel Isolated CAN Bus Expansion HAT Compatible with Raspberry Pi/Arduino/STM32,2-CH CAN HAT with MCP2515 + SN65HVD230 Dual Chips Solution,Multi Onboard Protection Circuits
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication.Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference.Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper.
- Onboard 120 terminal resistor, configured by jumper
- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi 4 Model B/3B+/3B/2B/Zero/Zero W, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits
Description
2-Channel CAN HAT--2-Channel Isolated CAN Bus Expansion, Multi Onboard Protection Circuits, comes with manual and examples in C/Python
What we can do? --Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi

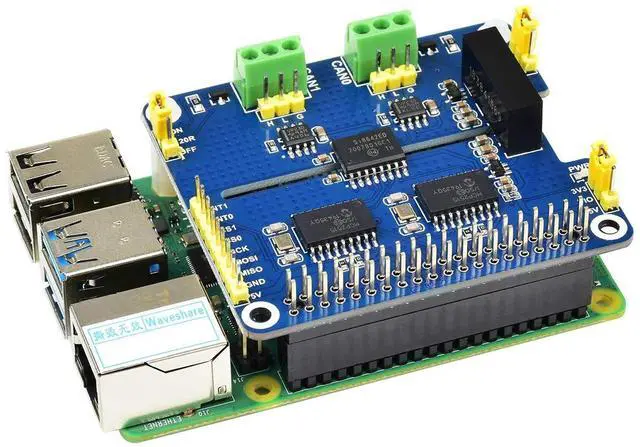

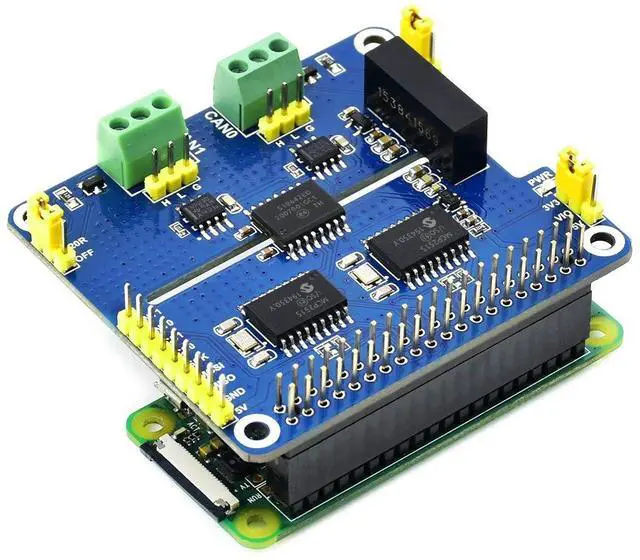

Designed For Raspberry Pi Board--Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

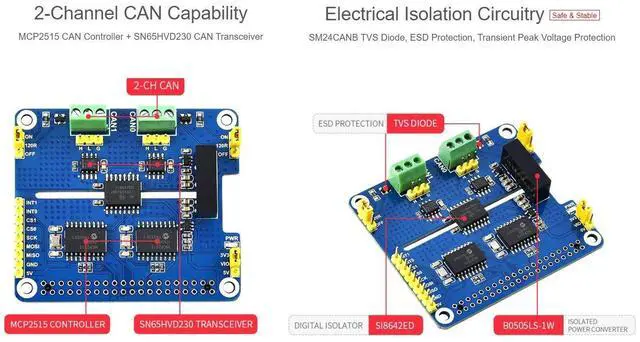

2-Channel CAN Capability--MCP2515 CAN Controller + SN65HVD230 CAN Transceiver
Electrical Isolation Circuitry--SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection
Flexible And Handy Jumpers--Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120 Terminal Resistor, Via Onboard Jumpers
CAN CONTROLLER: MCP2515
CAN TRANSCEIVER: SN65HVD230
CONTROL BUS: SPI
POWER SUPPLY VOLTAGE: 5V
LOGIC LEVEL VOLTAGE: 3.3V /5V
DIMENSIONS: 65 × 56.5 (mm)

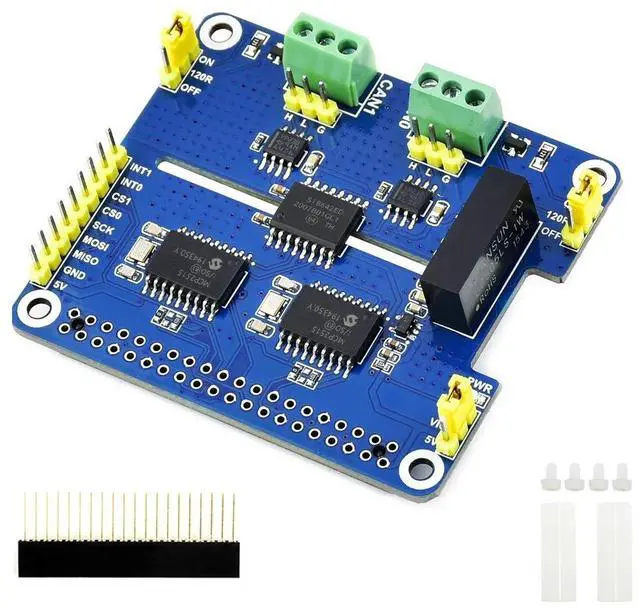

Package Content
2-CH CAN HAT x1
Standoffs pack (2pcs) x1
2×20PIN female header x1
Note: Development resource are provided, please contact us to get.
Description
2-Channel CAN HAT--2-Channel Isolated CAN Bus Expansion, Multi Onboard Protection Circuits, comes with manual and examples in C/Python
What we can do? --Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi
Designed For Raspberry Pi Board--Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
2-Channel CAN Capability--MCP2515 CAN Controller + SN65HVD230 CAN Transceiver
Electrical Isolation Circuitry--SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection
Flexible And Handy Jumpers--Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120 Terminal Resistor, Via Onboard Jumpers
Specifications
CAN CONTROLLER: MCP2515
CAN TRANSCEIVER: SN65HVD230
CONTROL BUS: SPI
POWER SUPPLY VOLTAGE: 5V
LOGIC LEVEL VOLTAGE: 3.3V /5V
DIMENSIONS: 65 × 56.5 (mm)
Package Content
2-CH CAN HAT x1
Standoffs pack (2pcs) x1
2×20PIN female header x1
Note: Development resource are provided, please contact us to get.
