Flexible RGB Full-Color LED Matrix Panel 64x64, 4096 RGB LEDs, 3mm Pitch, Adjustable Brightness Chainable Design, Display Text/Colorful Image/Animation, for Raspberry Pi/Raspberry Pi Pico / ESP32

Overview

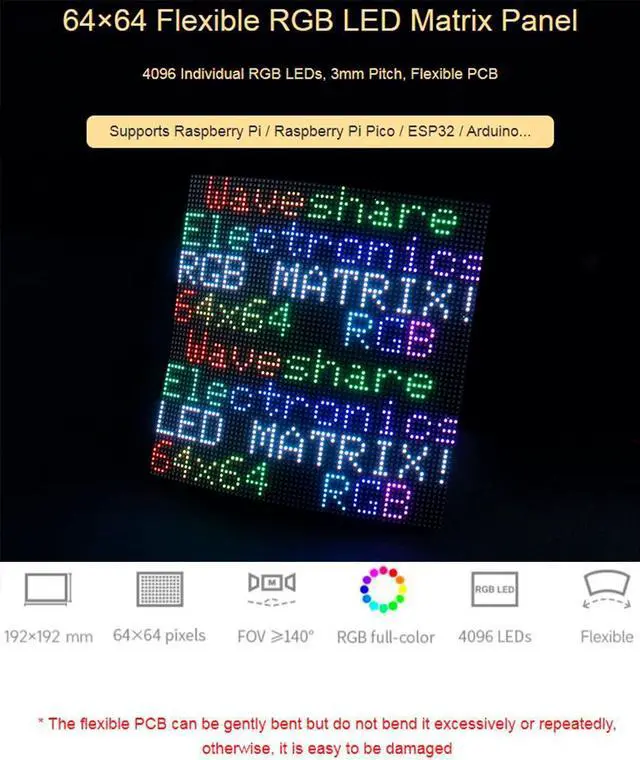

64×64 Flexible RGB LED Matrix Panel, 4096 Individual RGB LEDs, 3mm Pitch, Flexible PCB. Compatible with Raspberry Pi / Raspberry Pi Pico / ESP32 / for Arduino.

Features

4096 individual RGB LEDs, full-color display, adjustable brightness
Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface

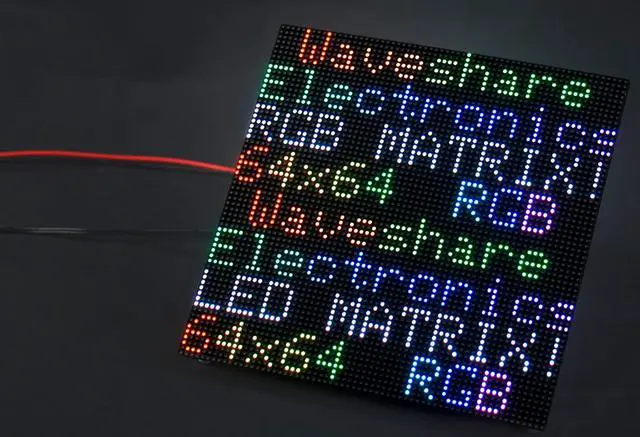

64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

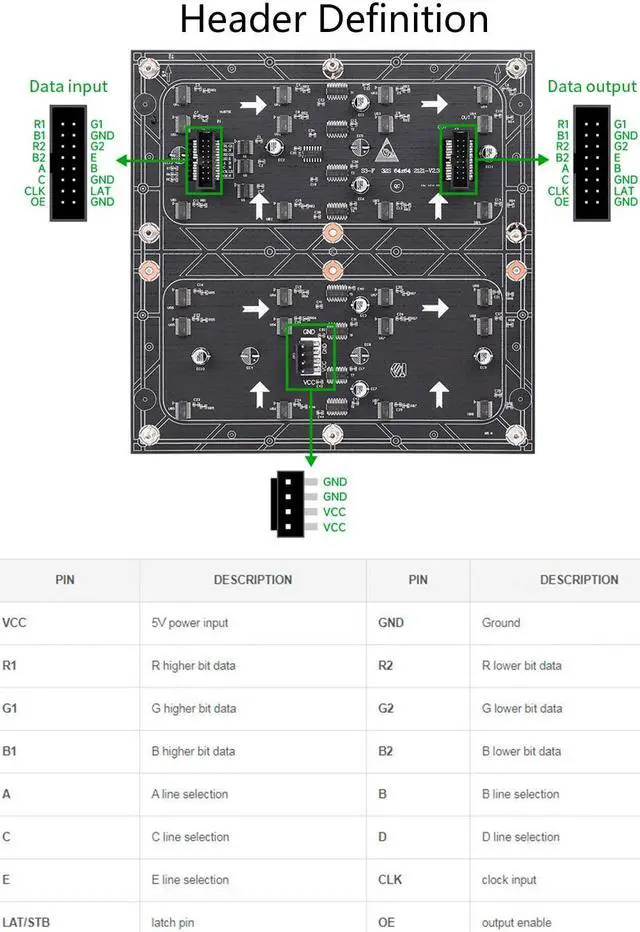

Chainable Design--- multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header. Onboard two HUB75 header, one for controller data input, one for output, chain support.
Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

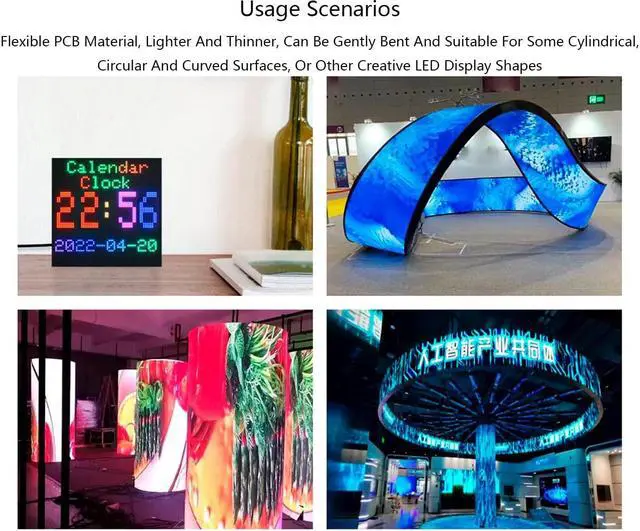

Usage Scenarios: Flexible PCB material, lighter and thinner, can be gently bent and suitable for some cylindrical, circular and curved surfaces, or other creative LED display shapes.

Specifications

DIMENSIONS--- 192mm x 192mm
PIXELS--- 64×64=4096 DOTS
PITCH--- 3mm
PIXEL FORM---1R1G1B
VIEWING ANGLE--- 140°
CONTROL TYPE--- synchronization
DRIVING---1/32 scan
HEADER--- HUB75
POWER SUPPLY--- 5V / 4A (VH4 header input)
POWER--- 20W

Online Tutorial: n9. cl/pl9y5

Package Content
RGB-Matrix-P3-64x64-F LED matrix and accessories x1
Power supply terminal adapter x1
16P wire ~30cm x1

Note: The flexible PCB can be gently bent but do not bend it excessively or repeatedly, otherwise, it is easy to be damaged.
