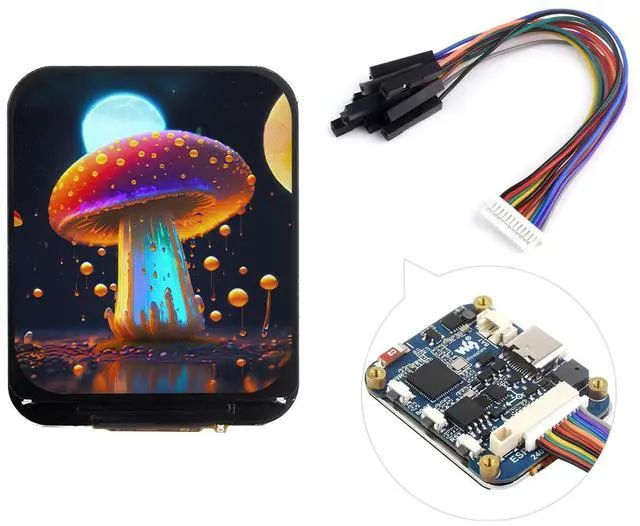

Waveshare ESP32-S3 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280, Supports Wi-Fi/BLT, Accelerometer and Gyroscope Sensor, Micro LCD Display with ESP32-S3

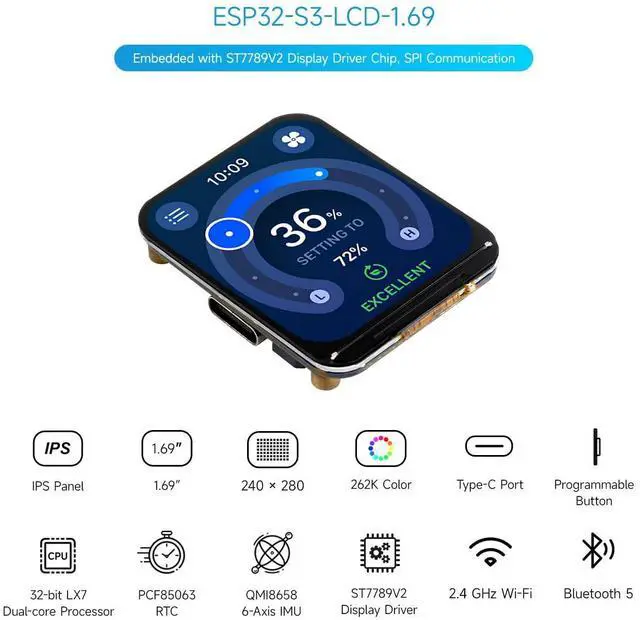

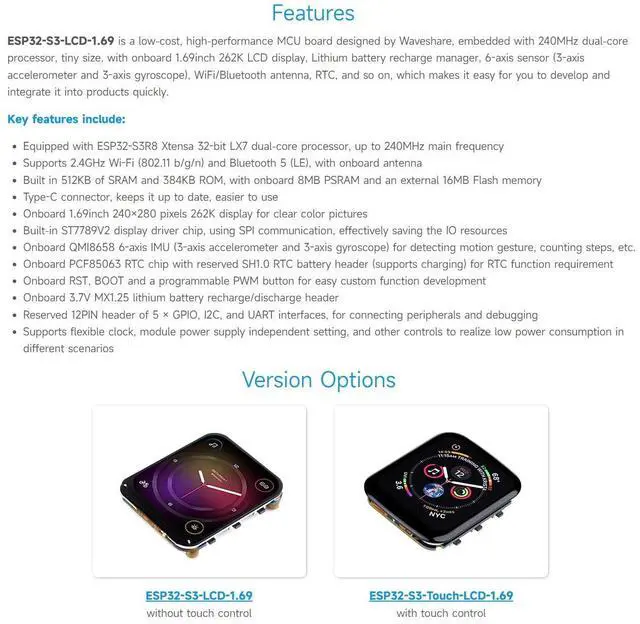

- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

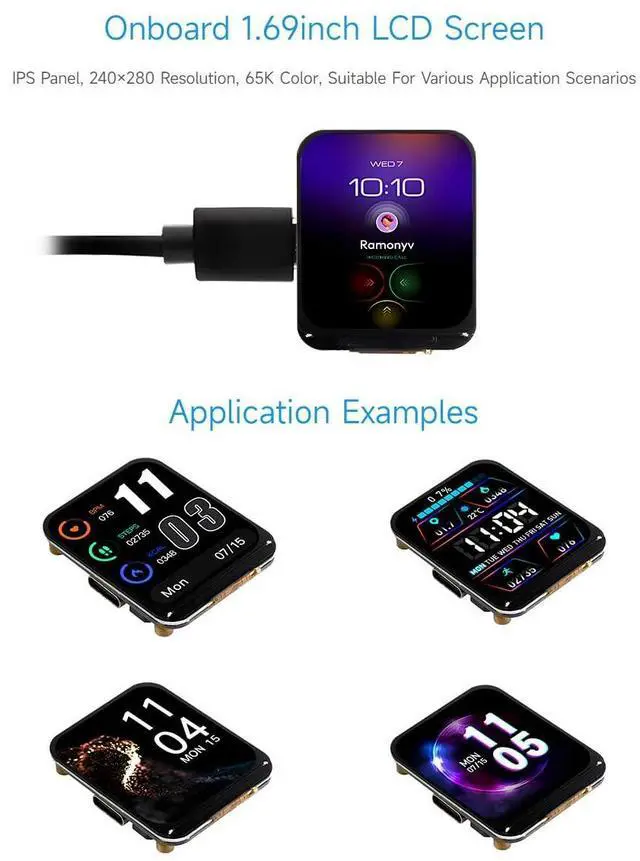

- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use. Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
- Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header. Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and de
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Waveshare ESP32-S3 1.69 inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280, Supports Wi-Fi/BLT, Accelerometer and Gyroscope Sensor, Micro LCD Display with ESP32-S3
