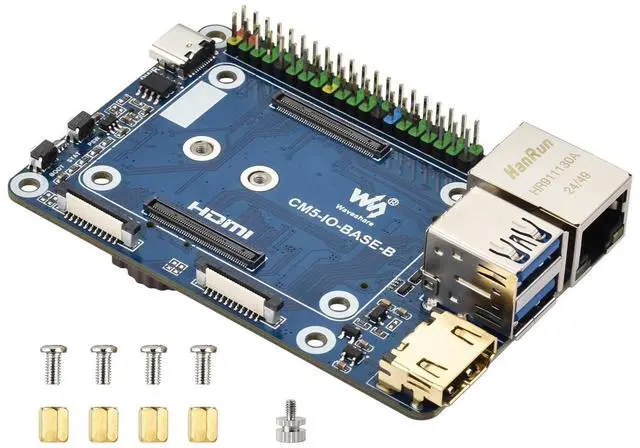

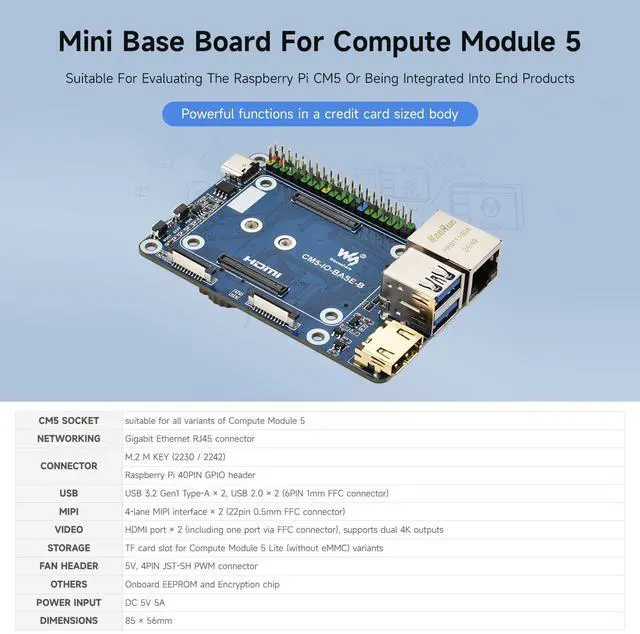

Waveshare Mini Base Board (B), Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip

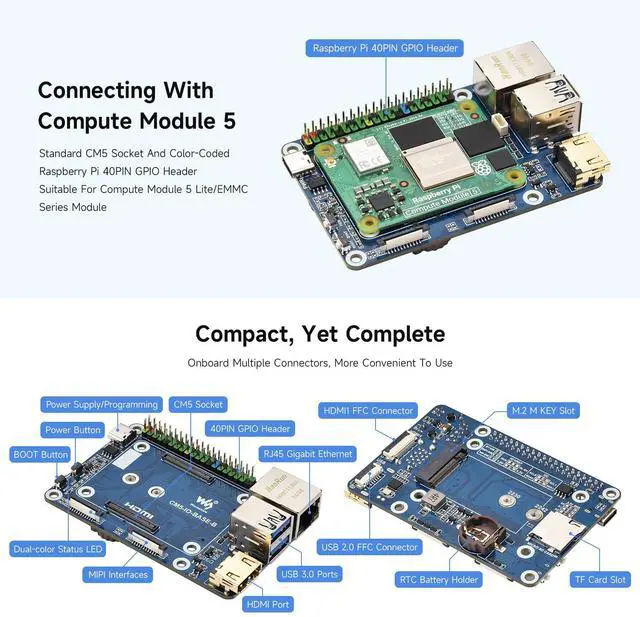

- Compatibility and Connectivity: The board is equipped with a CM5 socket, making it suitable for all variants of the Compute Module 5. It also features a Gigabit Ethernet RJ45 connector for high-speed networking and a Raspberry Pi 40PIN GPIO header for various expansion options.
- USB and M.2 Expansion: It includes two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and an M.2 M KEY (2230/2242) connector for further device integration. Additionally, it offers flexible connectivity options with a 6PIN 1mm FFC connector for USB and M.2 interfaces.
- Video Output: The board supports dual 4K video output via two HDMI ports, one of which is connected through an FFC connector. This setup allows for high-definition, dual-display configurations, ideal for multimedia applications.
- Storage and Power: It features a TF card slot designed for Compute Module 5 Lite variants (without eMMC storage) and is powered via a 5V DC input with a 5A capacity, ensuring stable performance.
- Additio
+
+
