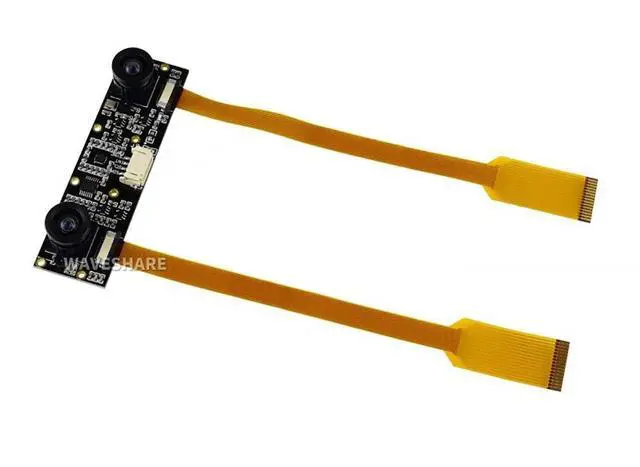

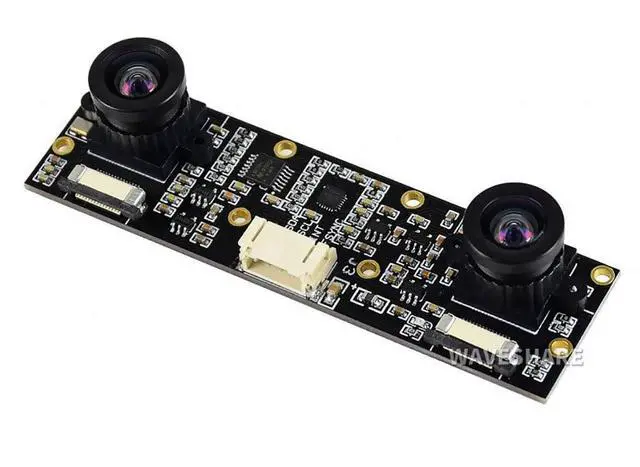

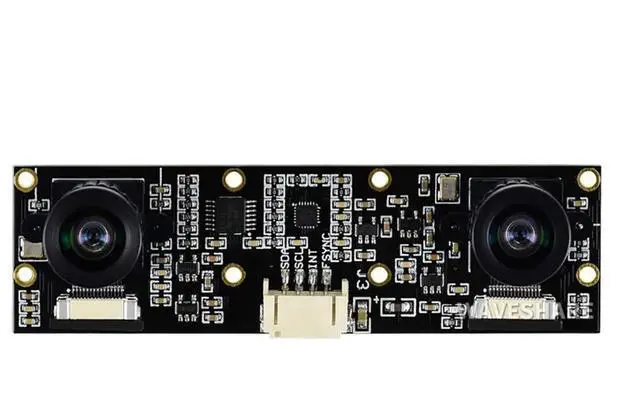

waveshare Binocular Camera Module Dual IMX219 8 Megapixels Stereo Vision Depth Vision Supports Jetson Nano Developer Kit B01and Fits Raspberry Pi CM3/CM3+ Expansion Boards for AI Vision Applications
- This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera.
- It is suitable for AI vision applications like depth vision and stereo vision.

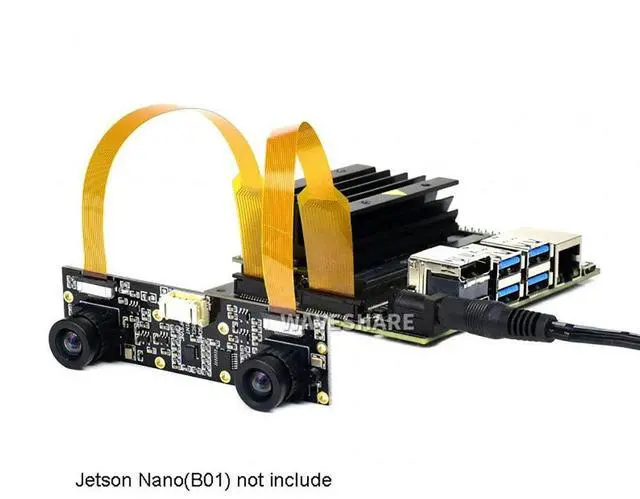

- The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
8 Megapixels Sensor: Sony
IMX219 Resolution: 3280 × 2464 (per camera)
Lens specifications: --CMOS size: 1/4inch
--Focal Length: 2.6 mm
--Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
--Distortion: <1%
--Baseline Length: 60mm
ICM20948: --Accelerometer:
---Resolution: 16-bit
---Measuring Range (configurable): ±2, ±4, ±8, ±16g
---Operating Current: 68.9 uA
--Gyroscope:
---Resolution: 16-bit
---Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
---Operating Current: 1.23 mA
--Magnetometer:
---Resolution: 16-bit
---Measuring Range: ±4900T
---Operating Current: 90uA
Dimension: 24mm × 85mm
Applications
AI vision applications like depth vision and stereo vision.

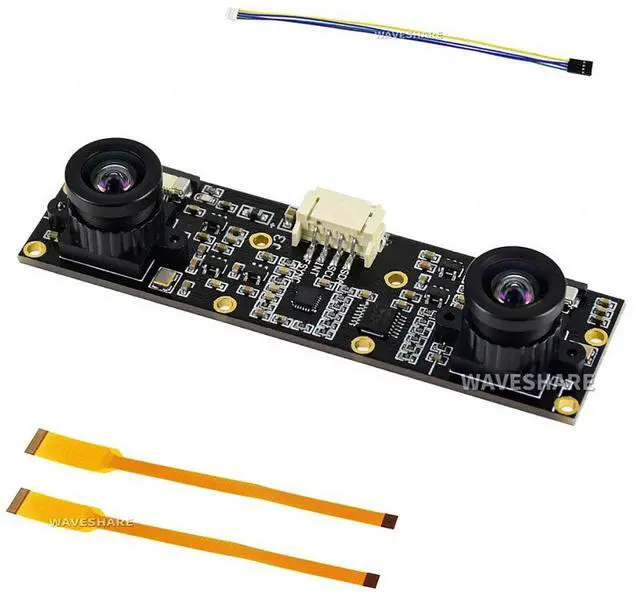

PACKAGE CONTENT
1. IMX219-83 Stereo Camera x1
2. FFC (2PCS) x1
3. PH 2.0 4PIN wire x1
