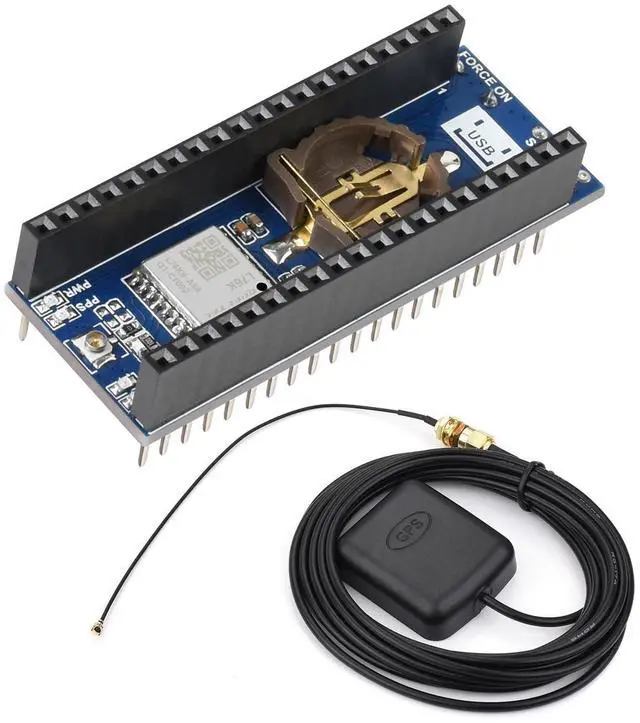

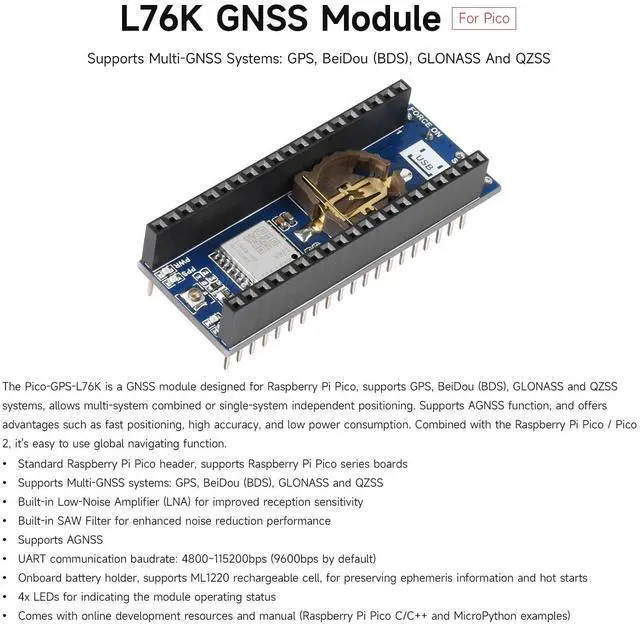

Waveshare L76K GNSS Module, Compatible with Raspberry Pi Pico, Supports GPS, BeiDou (BDS), GLONASS, and QZSS, Features A-GNSS (Assisted GNSS) Functionality
- Multi-System GNSS Support: The Pico-GPS-L76K supports GPS, BeiDou (BDS), GLONASS, and QZSS, allowing for both multi-system combined positioning and independent single-system positioning for improved accuracy and reliability.
- Enhanced Sensitivity & Performance: Equipped with a Low-Noise Amplifier (LNA) and a SAW Filter, the module provides improved reception sensitivity and noise reduction, ensuring reliable performance in various environments.
- A-GNSS Functionality: The module supports Assisted GNSS (A-GNSS), enabling faster positioning with reduced time-to-first-fix, especially in challenging locations.
- Versatile Communication & Power: The module supports UART communication with a baud rate range of 4800~115200bps (default 9600bps). It also features an onboard battery holder that supports an ML1220 rechargeable cell to preserve ephemeris data and enable hot starts.

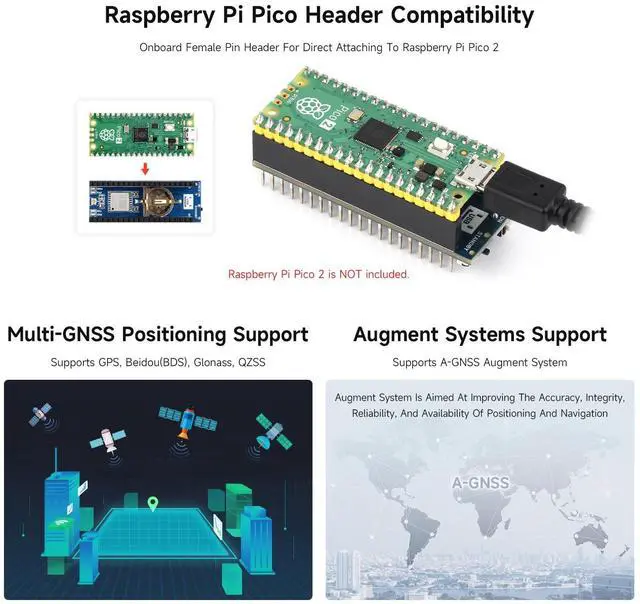

- Easy Integration & Development: Compatible with the Raspberry Pi Pico series, the module comes with
+
+
