3PCS RP2040-Zero Mini Board, Pico-Like MCU Board Based on Raspberry Pi MCU RP2040, Dual-Core Arm Cortex M0+ Processor, Onboard 2MB Flash Memory, Type-C USB Connector, Support C/C++MicroPython

Overview

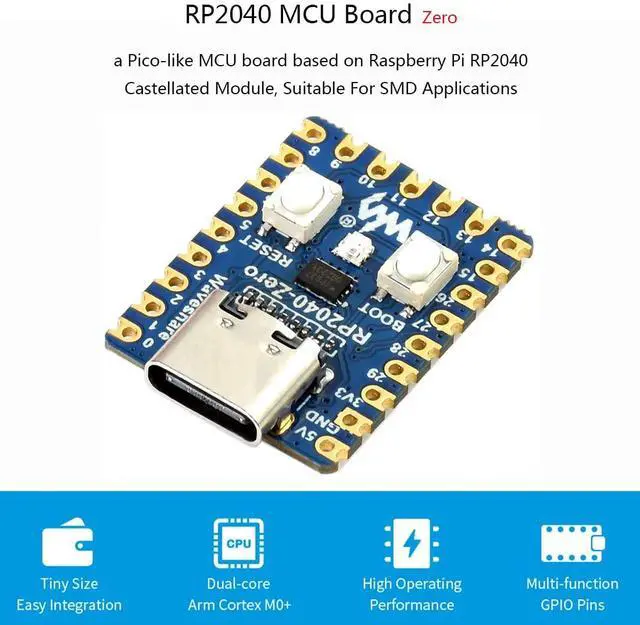

RP2040-Zero Mini Version, Pico-Like MCU Board Based on Raspberry Pi MCU RP2040, Castellated module, suitable for SMD applications.

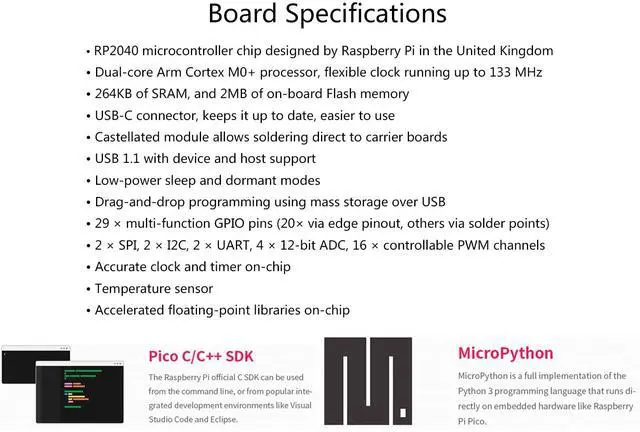

Features
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
Onboard 264KB of SRAM, and 2MB Flash memory.
Type-C USB Connector, keeps it up to date, easier to use.
Castellated module allows soldering direct to carrier boards.
USB 1.1 with device and host support.
Low-power sleep and dormant mode.
Drag-and-drop programming using mass storage over USB.
29 x multi-function GPIO pins (20x via edge pinout, others via solder points).
2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels.
Accurate clock and timer on-chip.
Temperature sensor.
Accelerated floating-point libraries on-chip.
8 x Programmable I/O (PIO) state machines for custom peripheral support.
Support C/C++MicroPython.

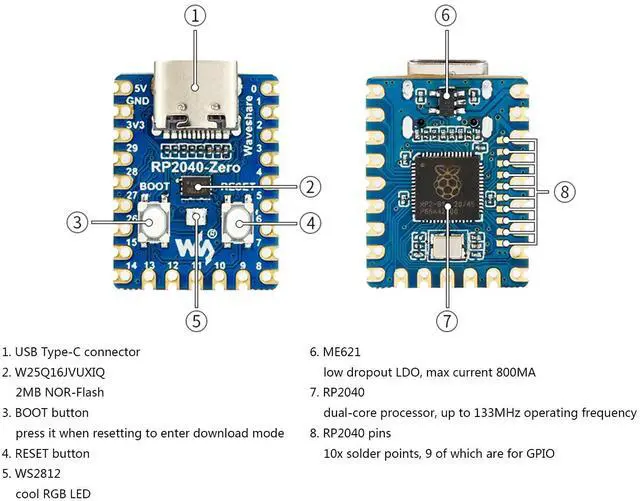

What's On Board
1. USB Type-C connector
2.
W25Q16JVUXIQ: 2MB NOR-Flash
3.
BOOT button: press it when resetting to enter download mode
4. RESET button
5.
WS2812: cool RGB LED
6.
ME621: low dropout LDO, max current 800MA
7.
RP2040: dual-core processor, up to 133MHz operating frequency
8.
RP2040 pins: 10x solder points, 9 of which are for GPIO

Development Resource/ User Manual: bit. ly/WaveshareRP2040-Zero

Package Content

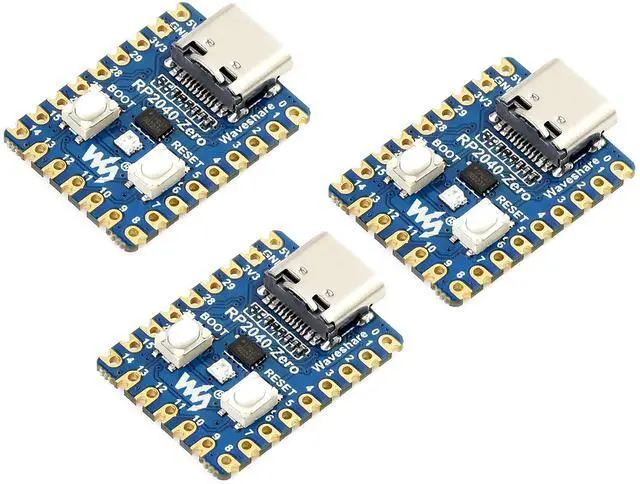

RP2040-Zero x3
