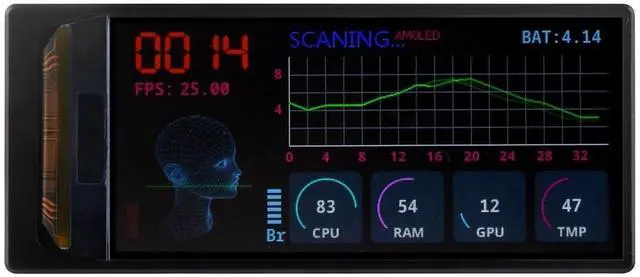

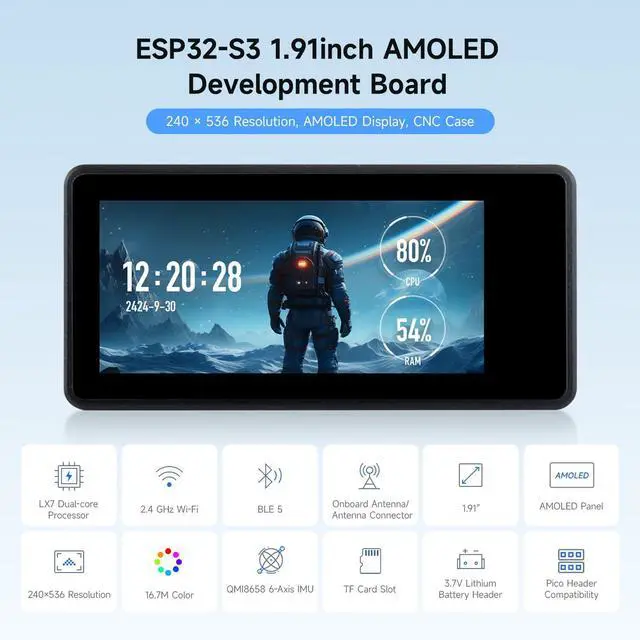

Waveshare ESP32-S3 1.91inch AMOLED Display Development Board, 240×536, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Accelerometer and Gyroscope Sensor, with Pre-Solder Header

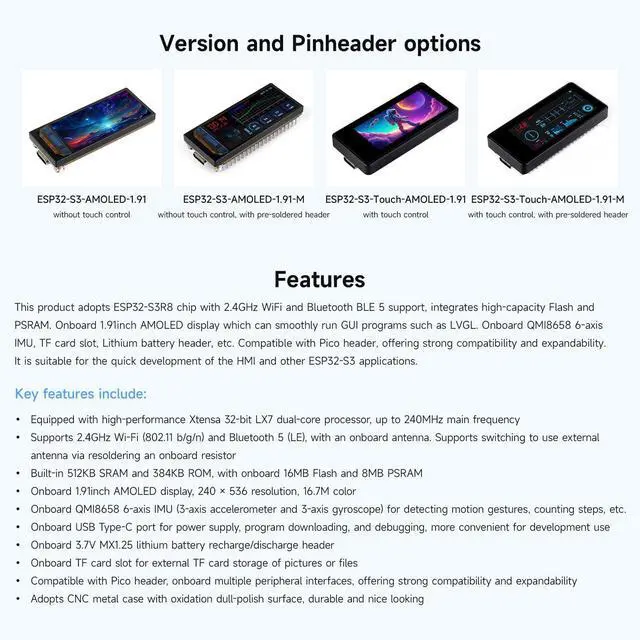

- There are several options for this item, this option is with pre-solder header, but without touch function
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 1.91inch AMOLED display, 240 × 536 resolution, 16.7M color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files
- Rich WiKi Resources: We provide official Wiki resources, please contact us for more informatio
+
+
