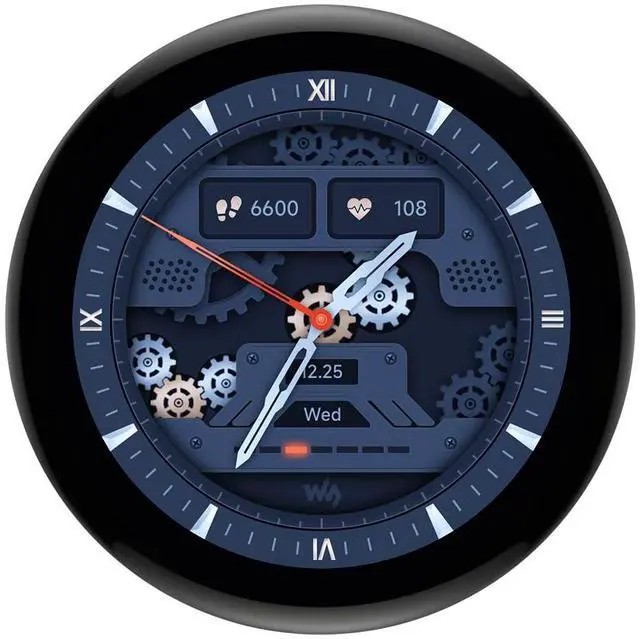

waveshare ESP32-S3 1.43inch AMOLED Display Development Board,466×466 Resolution 16.7M Color Capacitive Touch AMOLED Round Display Support 2.4GHz WiFi and Bluetooth BLE 5

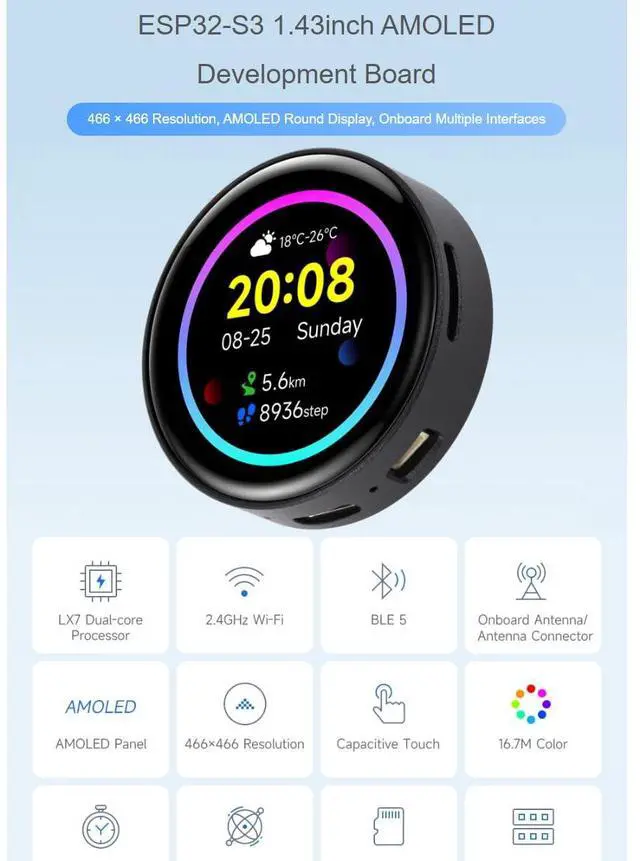

- ESP32-S3 1.43inch AMOLED Development Board,466 × 466 Resolution, AMOLED Round Display, Onboard Multiple Interfaces

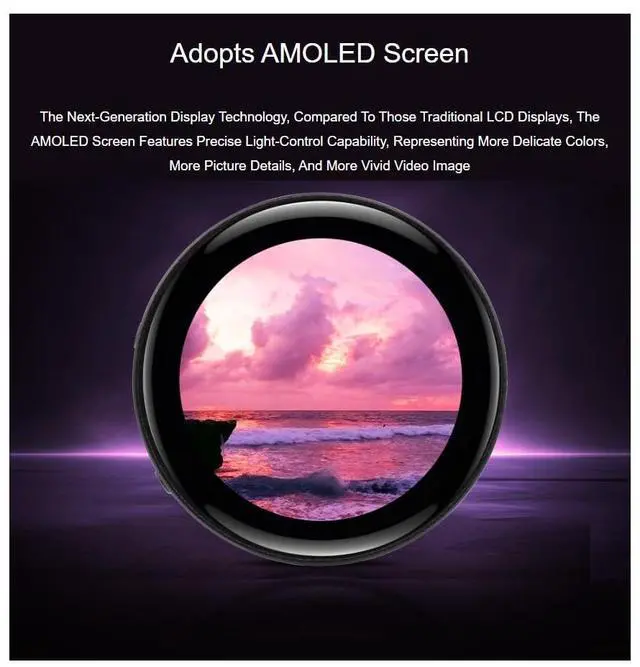

- Adopts AMOLED Screen.The Next-Generation Display Technology, Compared To Those Traditional LCD Displays, The AMOLED Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Video Image

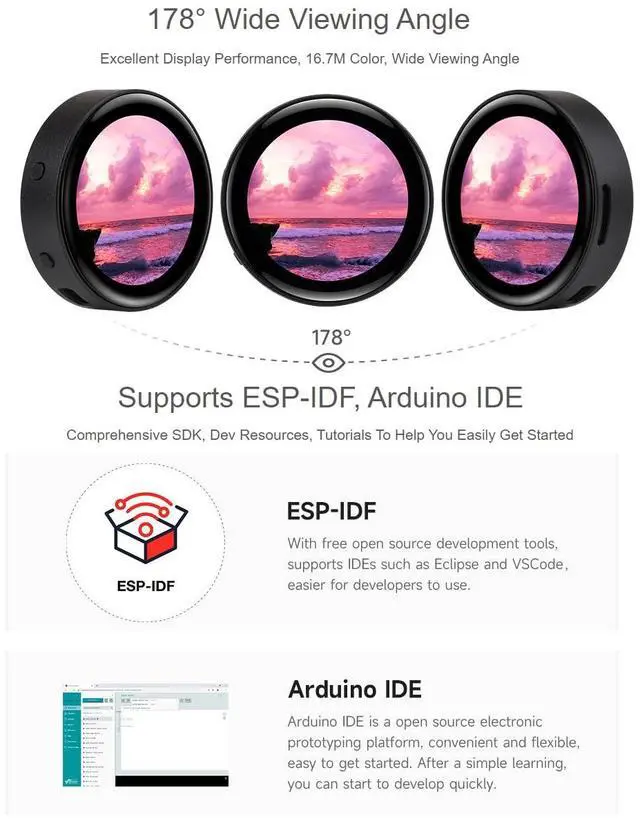

- 178° Wide Viewing Angle.Excellent Display Performance, 16.7M Color, Wide Viewing Angle
- Supports ESP-IDF, Arduino IDE.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

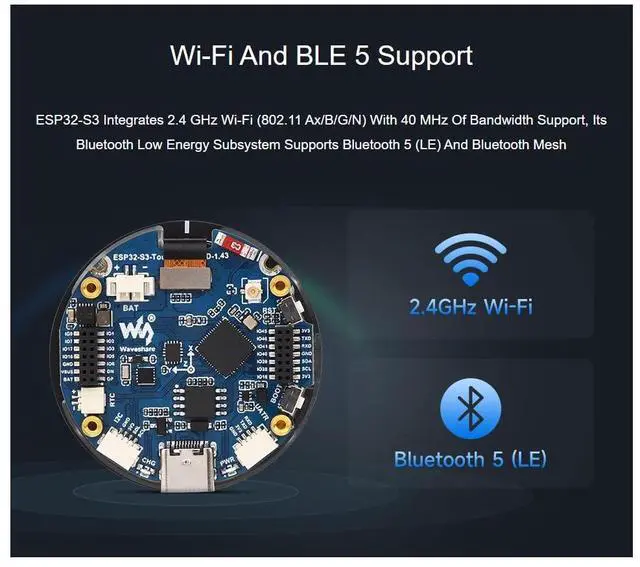

- Wi-Fi And BLE 5 Support.ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 Ax/B/G/N) With 40 MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Features
This product adopts ESP32-S3R8 chip with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.43 inch
AMOLED display which can smoothly run GUI programs such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card
slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong compatibility and expandability. It is suitable for
the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.43 inch AMOLED display, QSPI interface, 466 × 466 resolution, 16.7M color
Supports capacitive touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH 1.0 RTC battery header (supports charging) for RTC function requirement
Onboard RST button and programmable BOOT button for easy custom function development
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Onboard TF card slot for external TF card storage of pictures or files
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard UART and I2C SH 1.0 4PIN connector, reserved 2 × 14PIN 1.27 mm pitch headers, adapting multiple GPIO interfaces
Package Content
ESP32-S3-Touch-AMOLED- 1.43 x1
SH 1.0 4PIN cable ~100mm x2
This product adopts ESP32-S3R8 chip with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.43 inch
AMOLED display which can smoothly run GUI programs such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card
slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong compatibility and expandability. It is suitable for
the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.43 inch AMOLED display, QSPI interface, 466 × 466 resolution, 16.7M color
Supports capacitive touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH 1.0 RTC battery header (supports charging) for RTC function requirement
Onboard RST button and programmable BOOT button for easy custom function development
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Onboard TF card slot for external TF card storage of pictures or files
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard UART and I2C SH 1.0 4PIN connector, reserved 2 × 14PIN 1.27 mm pitch headers, adapting multiple GPIO interfaces
Package Content
ESP32-S3-Touch-AMOLED- 1.43 x1
SH 1.0 4PIN cable ~100mm x2
