waveshare Power Over Ethernet (PoE) HAT for Raspberry Pi 4B/3B+, 802.3af/at PoE Network Standard, 5V USB-A&12V Header Outputs, PoE HAT Onboard Cooling Fan and MP8676 Buck Chip, Isolated

Overview
The PoE HAT (C) is a 802.3 af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper
802.3 af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one
Ethernet cable.

Features

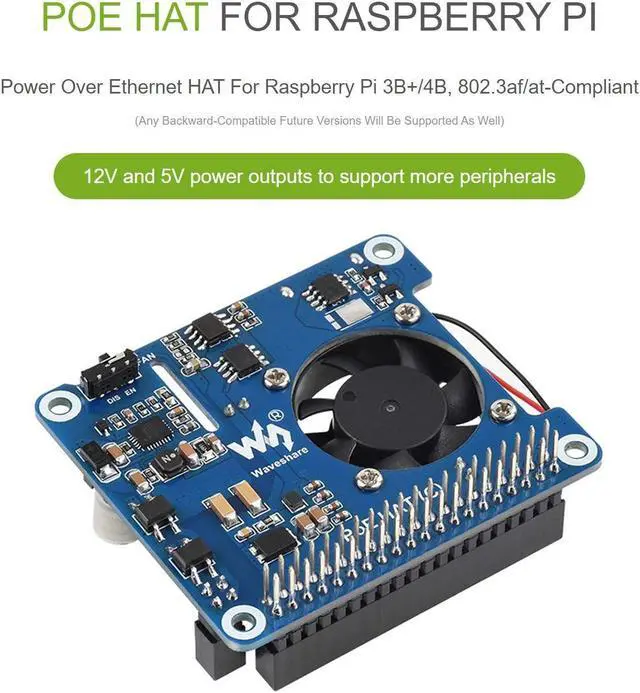

1. POE HAT FOR RASPBERRY PI
Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3 af/at-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)
12V and 5V power outputs to support more peripherals

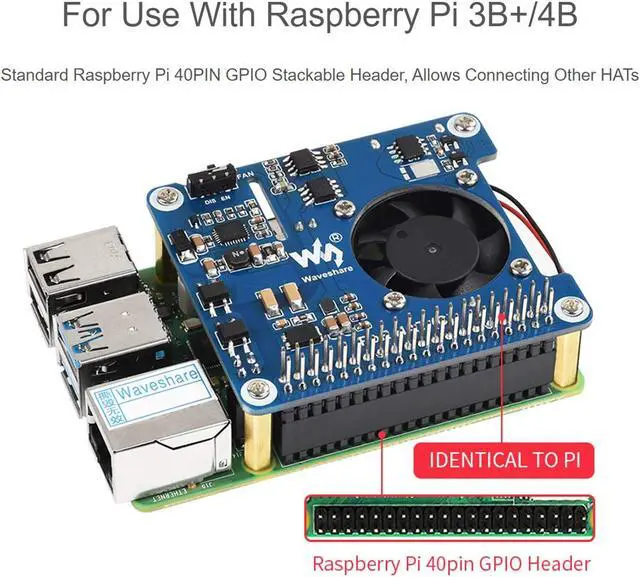

2. For Use With Raspberry Pi 3B+/4B
Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

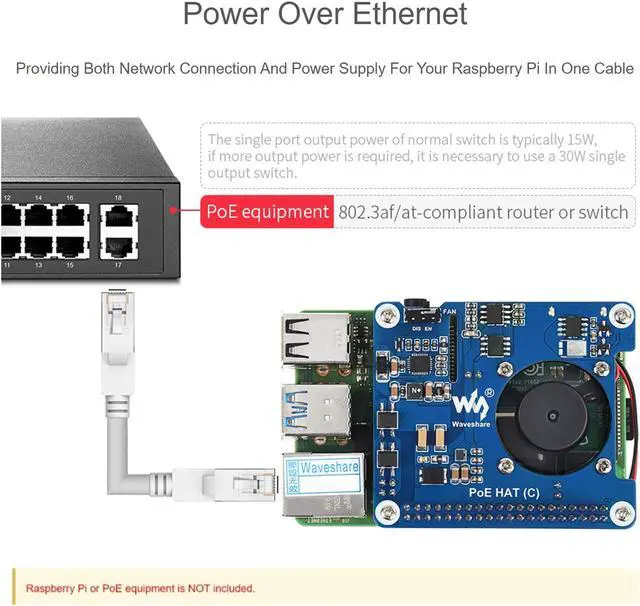

3. Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

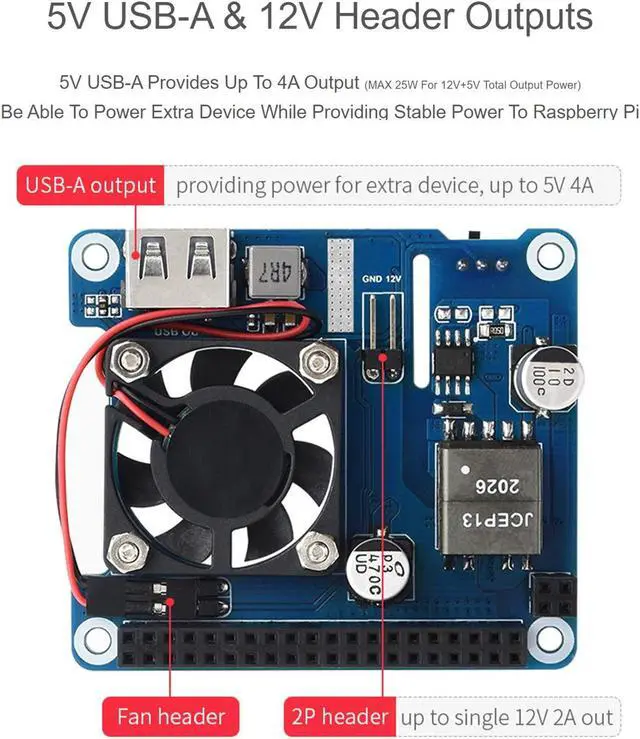

4.5V USB-A & 12V Header Outputs
5V USB-A Provides Up To 4A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Device While Providing Stable Power To Raspberry Pi

5. Active Cooling Fan

6. Onboard MP8676 Buck Chip
Incorporates Original Voltage Buck Chip Providing Up To 4.5A Output For Raspberry Pi And USB-A Port

Specifications

POE input voltage: 37V ~ 57V DC input
POE-USB Type A output voltage: 5V 4A (MAX)
POE-Pin header output voltage: 12V 2A (MAX)
Network standard: Support IEEE 802.3 af/at PoE
Product size: 56.5 × 65mm

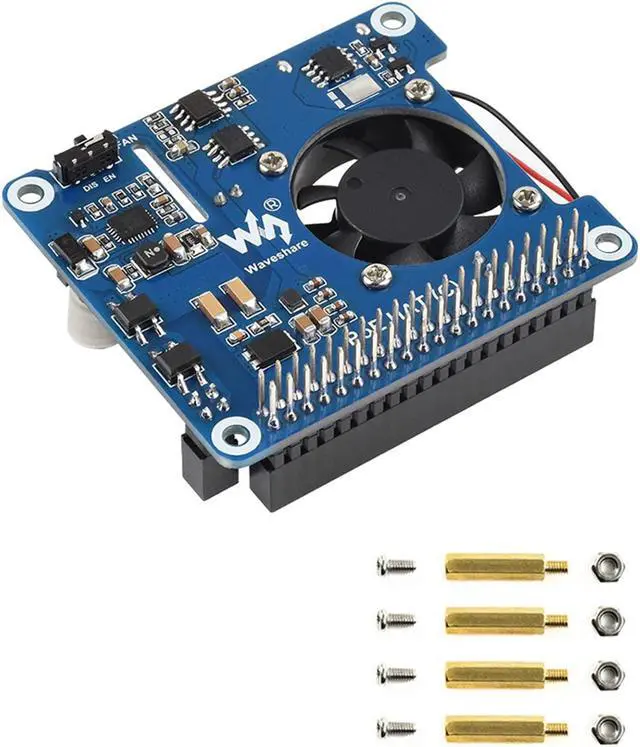

Package Content
PoE HAT (C) x1
Heatsink x1
Standoffs pack x1

Note
Development Resources is provided, please contact us if you have any problem.
