ESP32-S3 1.46inch LCD Round Touch Display Development Board, 412×412 Pixel, 16.7M Color, Supports Wi-Fi & Bluetooth 5, Onboard 6-Axis IMU, Speaker and Microphone etc. Multiple Interfaces
- ESP32-S3 1.46inch round touch display development board, equipped with ESP32-S3R8 high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

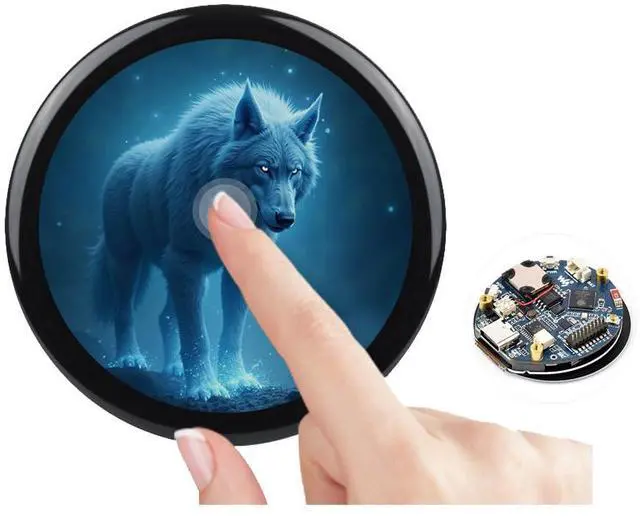

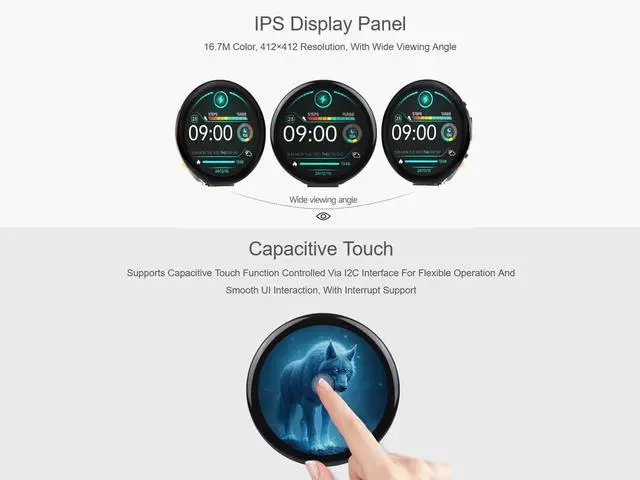

- ESP32-S3-Touch-LCD-1.46 microcontroller development board with onboard 1.46inch LCD display, 412×412 resolution IPS Display Panel, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support

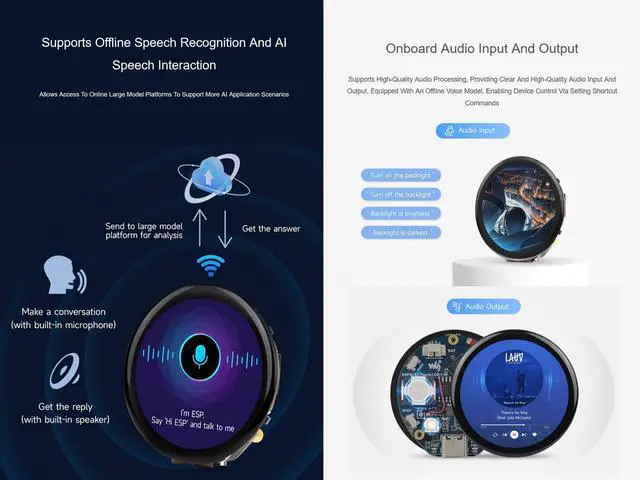

- Supports Offline Speech recognition and AI Speech Interaction, allows access to online large model platforms to support more AI application scenarios
- Onboard Audio input and output, supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut com
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
ESP32-S3-Touch-LCD- 1.46 is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.46 inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.
Features
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Type-C port, more convenient, better device compatibility
Onboard 1.46 inch LCD display, 412×412 resolution, 16.7M color
Supports touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement
Onboard programmable PWM and BOOT buttons for easy custom function development
Onboard 3.7V MX 1.25 lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop
Package Content
ESP32-S3-Touch-LCD- 1.46B x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
ESP32-S3-Touch-LCD- 1.46 is a microcontroller development board with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.46 inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.
Features
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static Random-Access Memory and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard Type-C port, more convenient, better device compatibility
Onboard 1.46 inch LCD display, 412×412 resolution, 16.7M color
Supports touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement
Onboard programmable PWM and BOOT buttons for easy custom function development
Onboard 3.7V MX 1.25 lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop
Package Content
ESP32-S3-Touch-LCD- 1.46B x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
