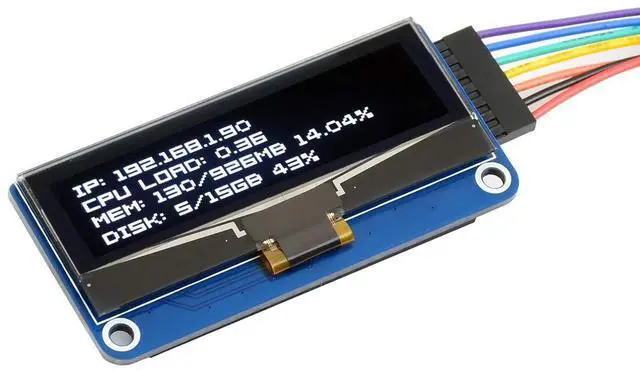

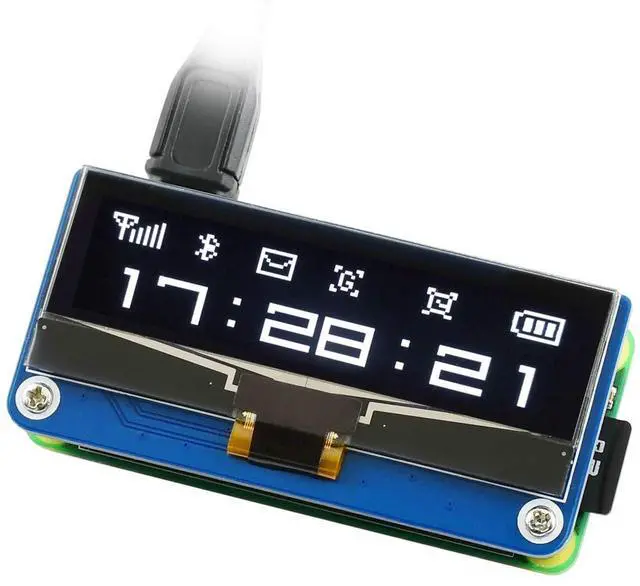

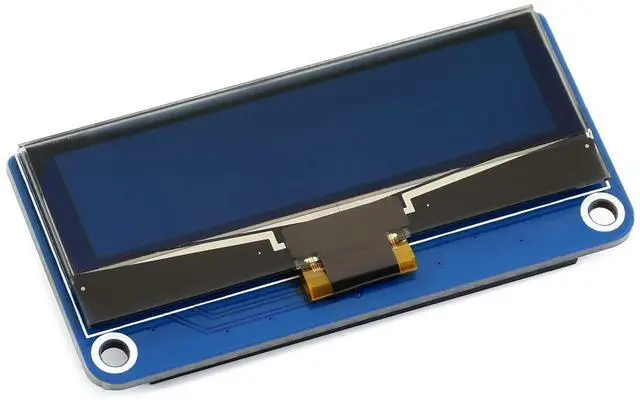

    Waveshare 2.23inch OLED Display HAT for Raspberry Pi 128×32 Pixels with Embedded 1305 Driver Communicating via SPI or I2C Interface.

    Be the first to review this product...
    • This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
    • Trying to add a control interface for your Pi? This compact display would be the ideal choice.
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now
    Overview

    This is an OLED display HAT for Raspberry Pi, 2.23 inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.

    Trying to add a control interface for your Pi? This compact display would be the ideal choice.

    Features

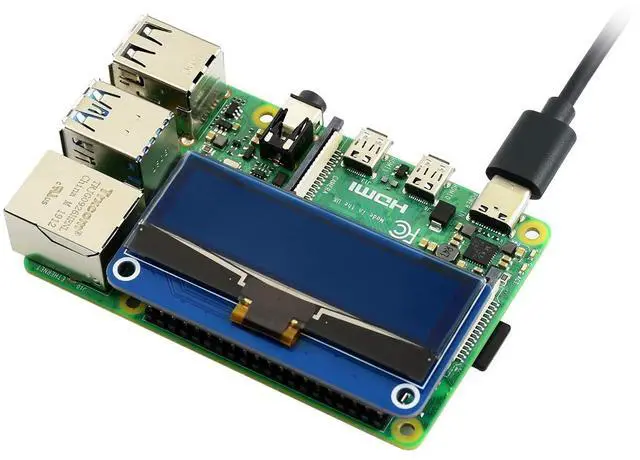

    Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    Optional interfaces: SPI (default), or I2C, configured via onboard resistor
    Brings control pins for host boards like Arduino/STM32.
    Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).



    Specifications

    :

    Driver: SSD1305.
    Interface: SPI / I2C.
    Display size: 2.23 inch diagonal
    Display colour: white.
    Resolution: 128 x 32.
    Viewing angle: >160°.
    Power supply voltage: 3.3 V/5 V.
    Logic level: 3.3 V.

    Wiki: www. waveshare. com/wiki/ 2.23 inch_OLED_HAT? Amazon

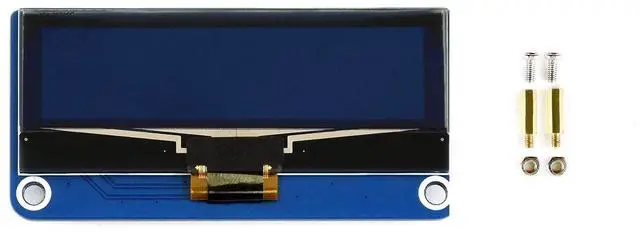

    PACKAGE CONTENT

    2.23 inch OLED HAT x1
    RPi screws pack (2 pieces) x1
