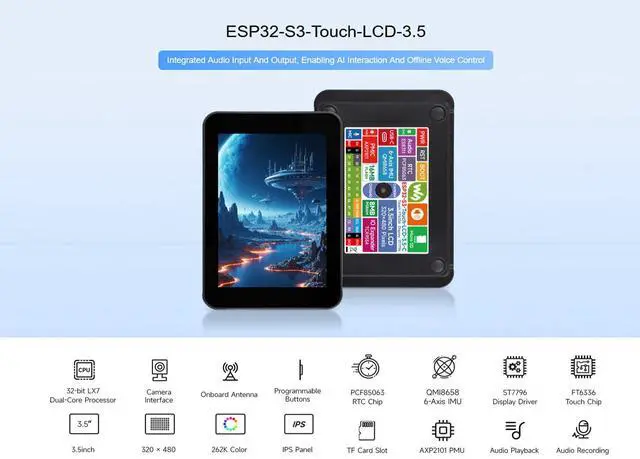

ESP32-S3 3.5inch LCD Touch Display Development Board, ESP32-S3 with IPS Screen 320×480 Pixel 262K Color, Onboard Camera Interface and Audio Codec, etc., Support AI Speech Interaction

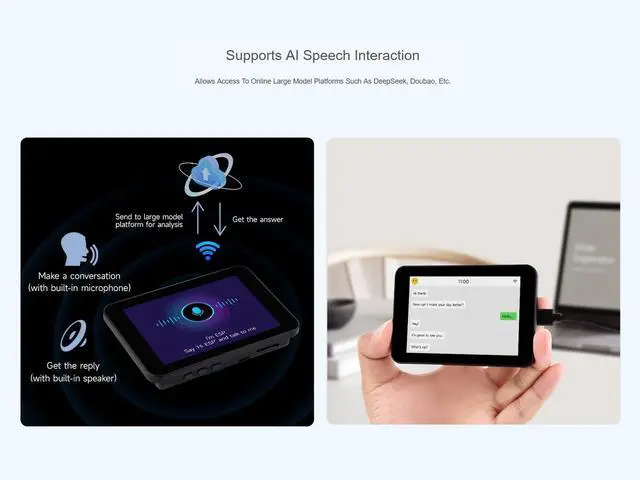

- ESP32-S3 3.5inch capacitive touch display development board, integrated audio input and output, enabling AI speech interaction and offline voice control, allows access to online large model platforms such as DeepSeek, Doubao, etc.
- Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of S-RAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector
- Onboard 3.5inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color, IPS display panel with 178° wide viewing angle. Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

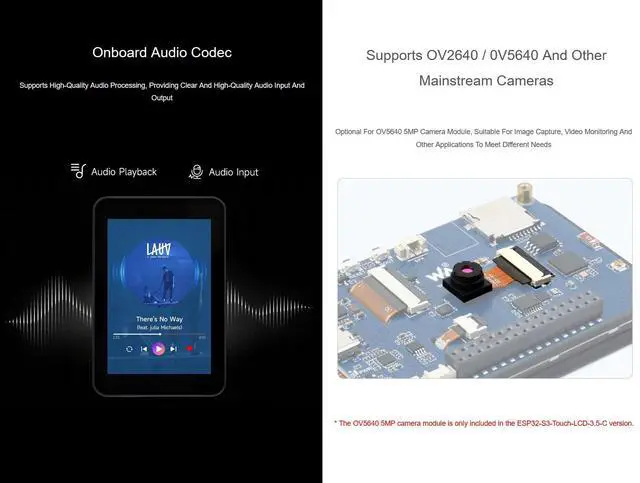

- Onboard audio codec, supports high-quality audio processing, providing clear and high-quality audio input and output
- Onboard camera interface, compatible with main
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency
Support 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of S-RAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use

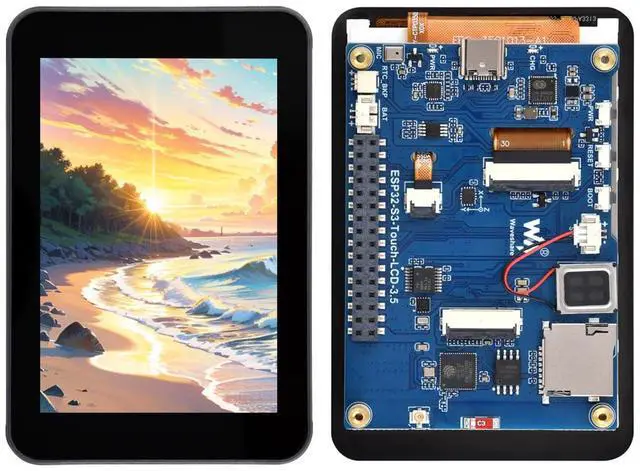

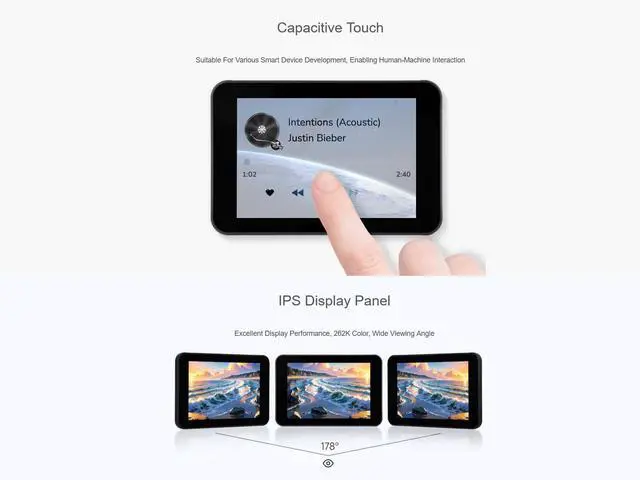

Onboard 3.5 inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
Package Content
ESP32-S3-Touch-LCD- 3.5 x1
6 1W speaker x1
Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency
Support 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of S-RAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use
Onboard 3.5 inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX 1.25 Lithium battery recharge/discharge header
Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
Package Content
ESP32-S3-Touch-LCD- 3.5 x1
6 1W speaker x1
