ESP32-S3 Development Board with 1.47inch Touch LCD Display, 172×320 Pixels 262K Color IPS Touch Screen, Support 2.4GHz WiFi & Bluetooth 5, Dual-core Processor up to 240MHz Frequency

Overview

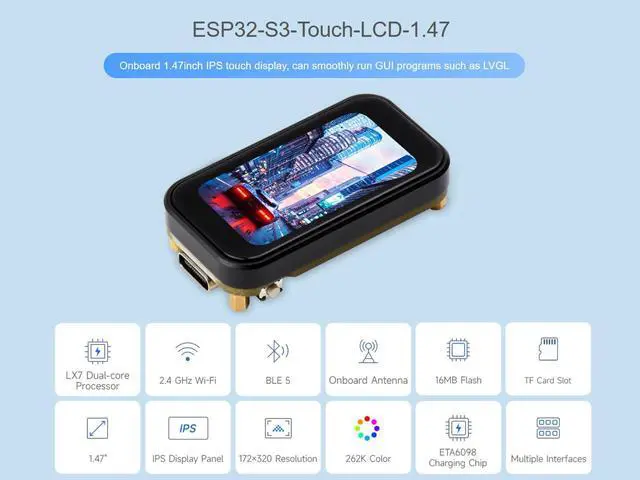

ESP32-S3-Touch-LCD- 1.47 uses ESP32-S3R8 chip with 2.4GH z WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47 inch IPS display can smoothly run GUI programs such as LVGL.

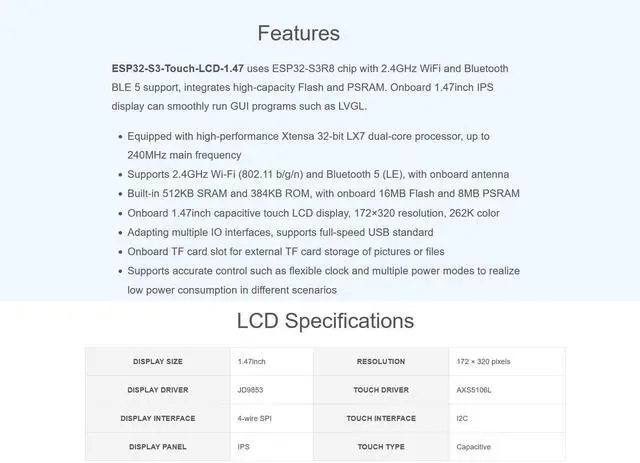

Features

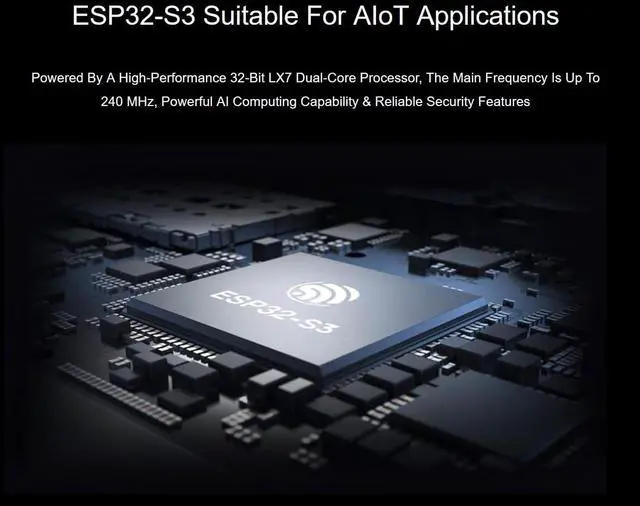

--Equipped with high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency
--Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
--Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
--Onboard 1.47 inch capacitive touch LCD display, 172×320 resolution, 262K color
--Adapting multiple IO interfaces, supports full-speed USB standard
--Onboard TF card slot for external TF card storage of pictures or files
--Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

LCD

Specifications

DISPLAY SIZE-- 1.47 inch
Resolution--172 × 320 pixels
Display Driver--JD9853
Touch Driver--AXS5106L
Display Interface--4-wire SPI
Touch Interface--I2C
DISPLAY PANEL--IPS
Touch Type--Capacitive

Package Content

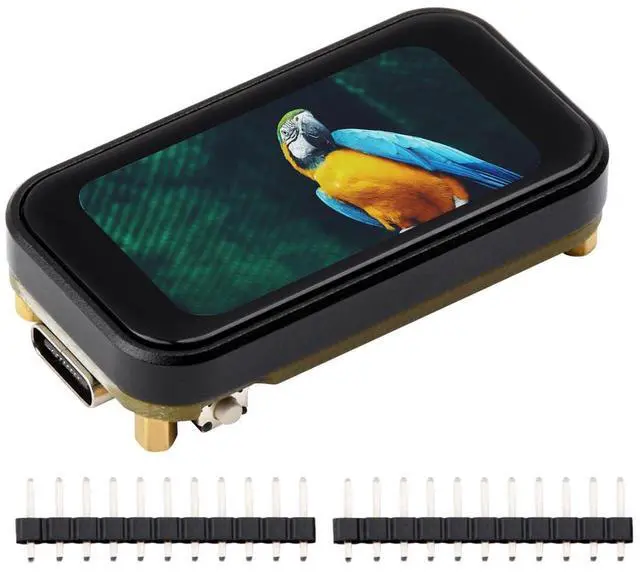

ESP32-S3-Touch-LCD- 1.47 × 1
Black header × 2

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
