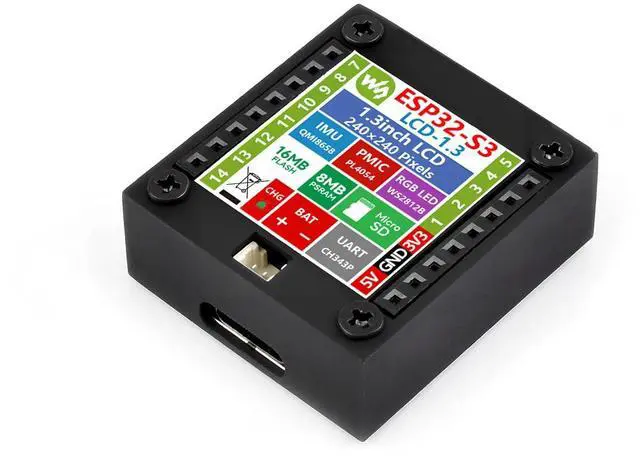

waveshare ESP32-S3 1.3inch Display Development Board with Case 240×240 Pixels 262K Color LCDSupports 90° Hardware Rotation,Built-in ST7789V2 Chip and 6-Axis IMU

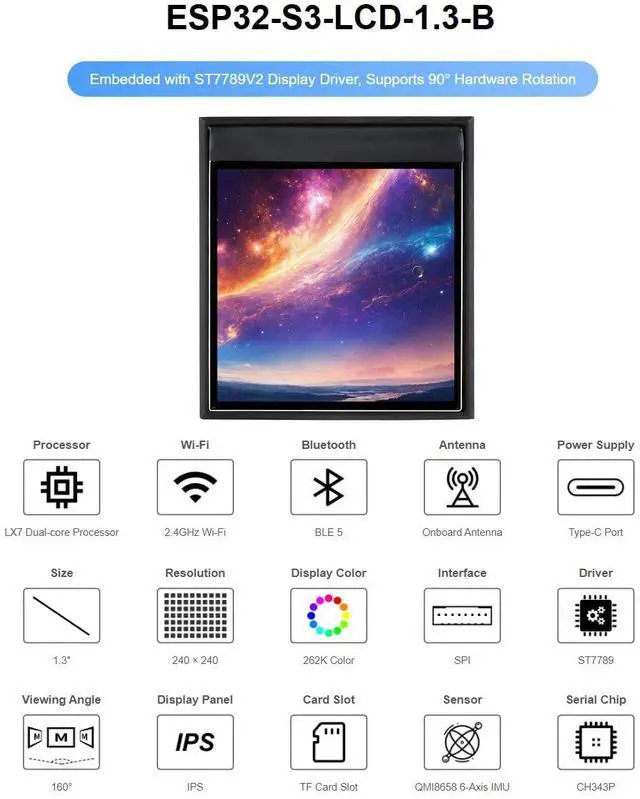

ESP32-S3 1.3 inch Display Development Board, 240×240 Pixels, Built-In ST7789V2 Display Driver Chip And 6-Axis IMU, 262K Color, SPI Communication, Supports 90° Hardware Rotation

Features

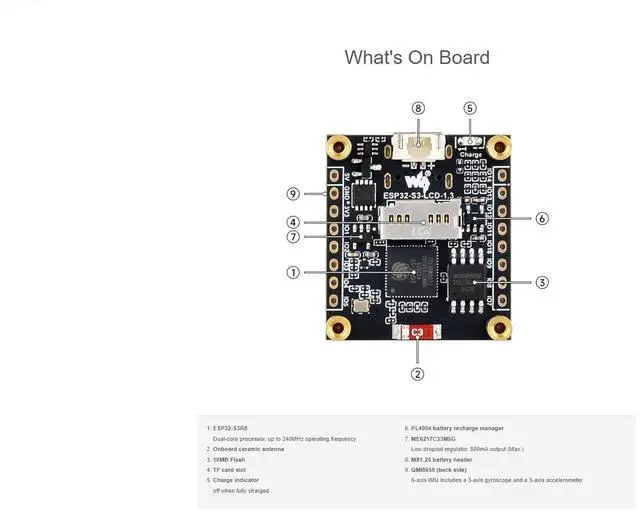

The ESP32-S3-LCD- 1.3 -B is a low-cost, high-performance MCU board equipped with 240MHz dual-core processor. It is compact in size, with onboard 1.3 inch
262K color LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LCD, and
Wi-Fi / Bluetooth antenna, which makes it easy for you to develop and integrate it into products quickly.

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.3 inch 240×240 pixels 262K display for clear and colorful pictures
Built-in ST7789V2 display driver, using SPI communication, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures and other applications
Onboard 3.7V MX 1.25 lithium battery recharge / discharge header

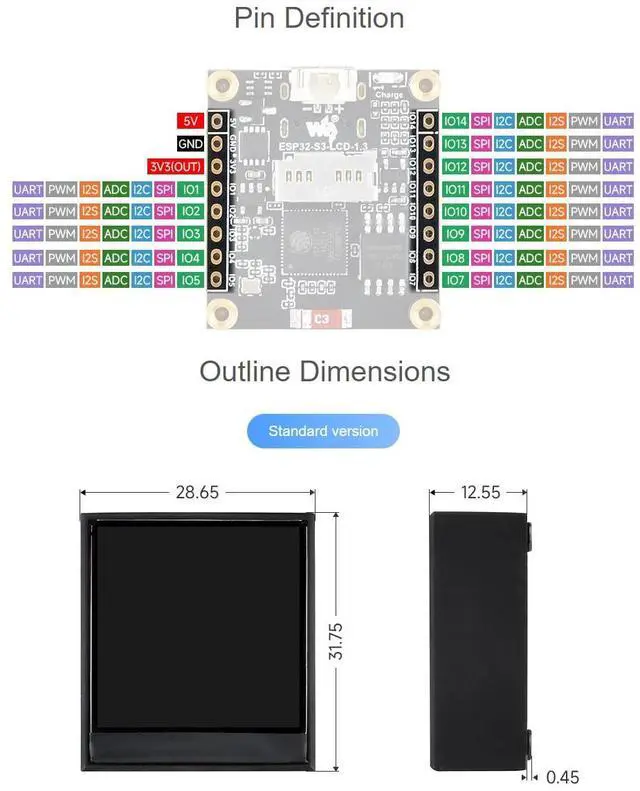

Adapting 13PIN 2.54 mm GPIO header for connecting peripherals and debugging, supports flexible configuration of pin functions

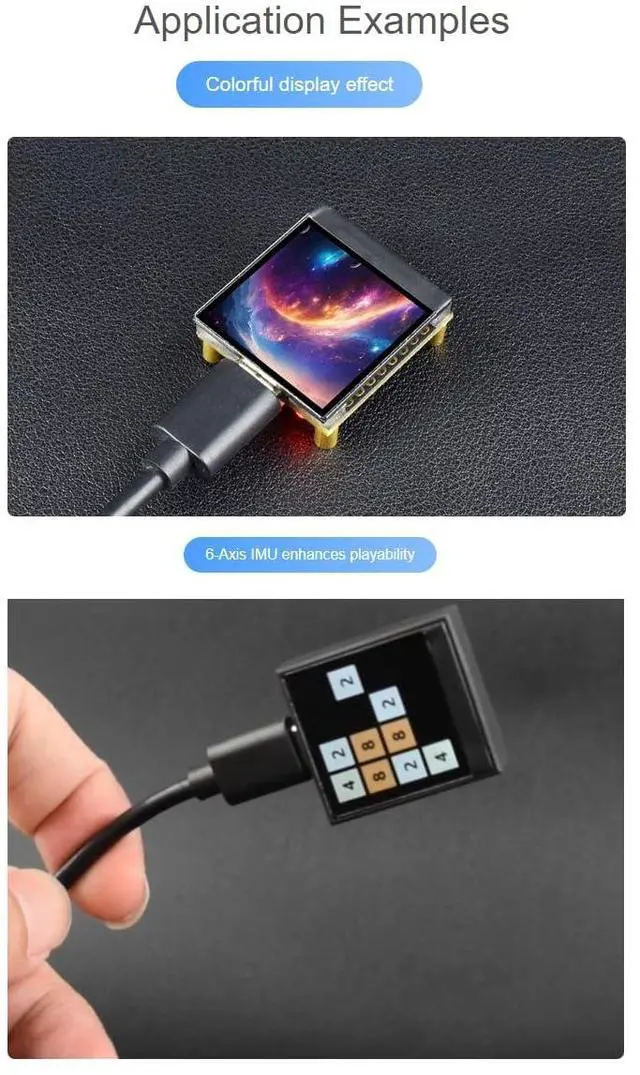

Optional for prism cube to enhance the optical display effect and greater expandability

Package Content
ESP32-S3-LCD- 1.3 -B x1
Usage Instructions
ESP32-S3-LCD- 1.3 -B currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options,
you can choose the right development tool according to your project needs and personal habits.
