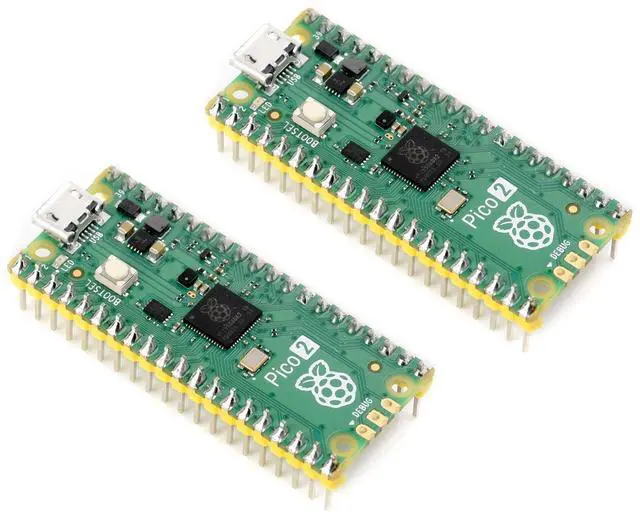

2 PCS Pre-soldered Raspberry Pi Pico 2 Microcontroller Development Board with Header Based on Official RP2350 Chip,Dual-core and Dual-Architecture Design

Board

Specifications

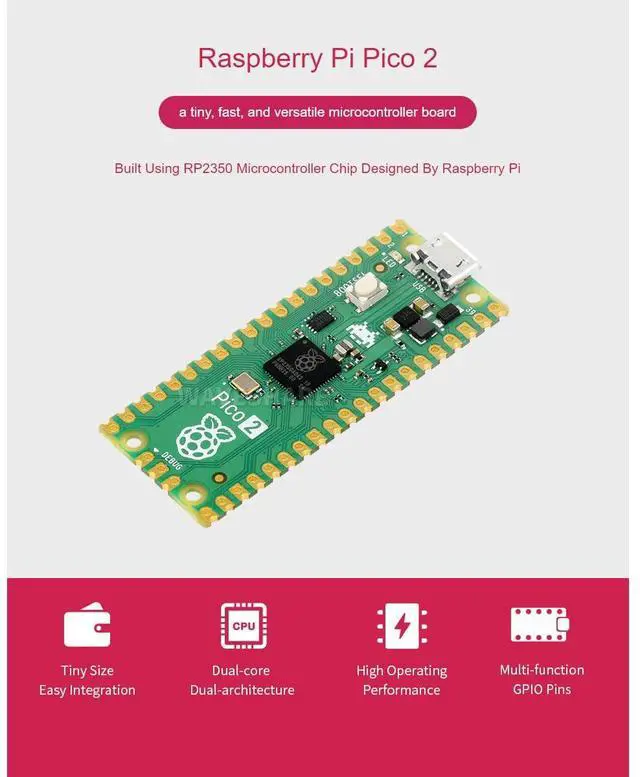

Raspberry Pi Pico 2 with Pre-soldered Header is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's
own RP2350 microcontroller chip, with unique dual-core and dual-architecture design, running up to 150 MHz, embedded 520KB of SRAM and 4MB of
on-board Flash memory, as well as 26x multi-function GPIO pins.

For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to
help you get started easily, and integrate it into end products quickly.

Key features include:
RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 4MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 24 × controllable PWM channels
Temperature sensor
12 × Programmable I/O (PIO) state machines for custom peripheral support

Package Content
Raspberry Pi Pico 2 with pre-soldered header (mono) x2
1*3PIN yellow pin header x2
USB-A to micro USB cable ~ 1.2 m x2

FAQ
What can I do if the Raspberry Pi Pico 2 is interfered?
1. The pins set to input state must be initialized to pull high or pull low.
2. Replace the USB cable to see if there is a problem with the USB cable used.
