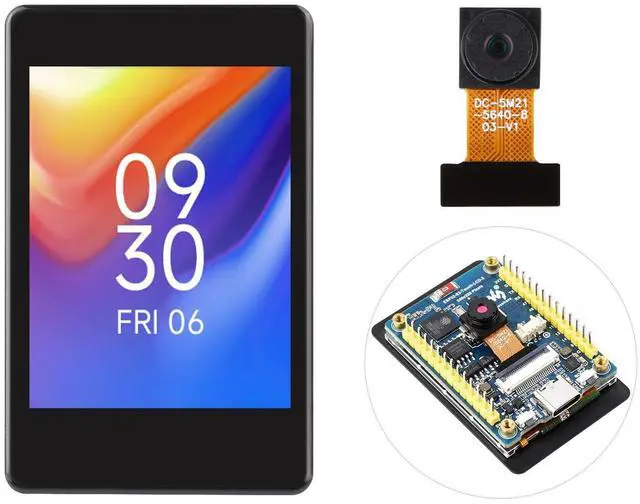

waveshare ESP32-S3 2inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-bit LX7 Dual-core Processor, Onboard Camera Interfac, Include OV560 Camera

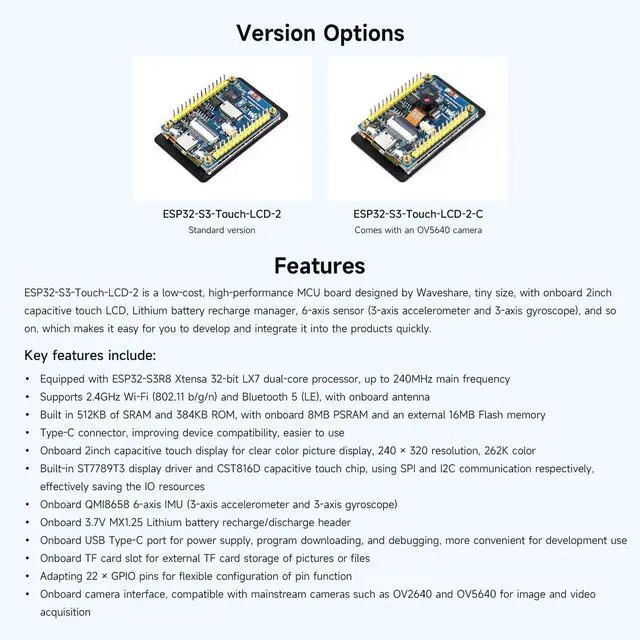

- ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use

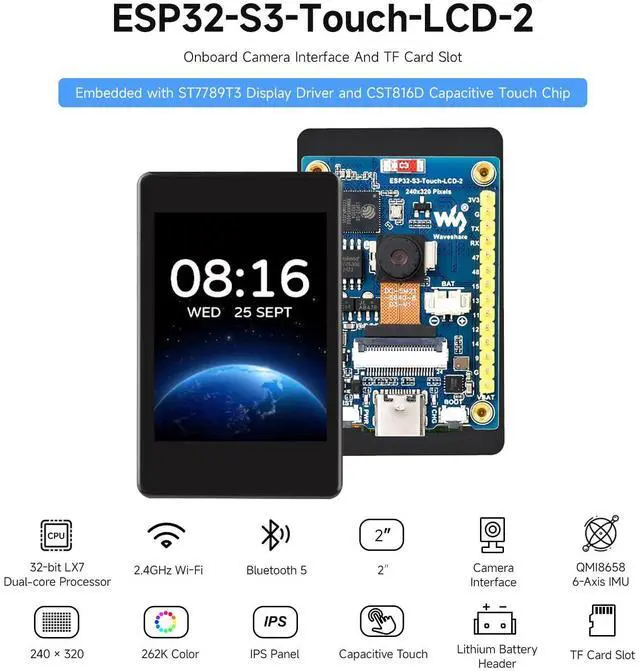

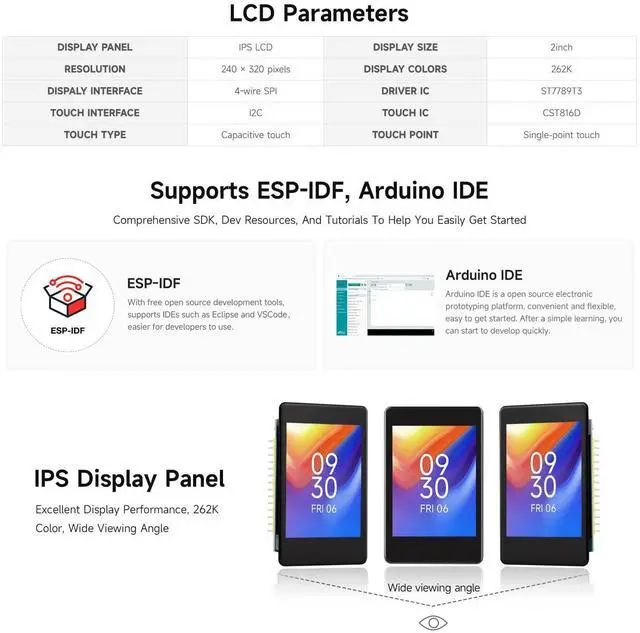

- Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color. Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header. Onb
+
+
